Home >> Hyundai >> 2010 >> Tucson AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch >> Outline

Outline





Components

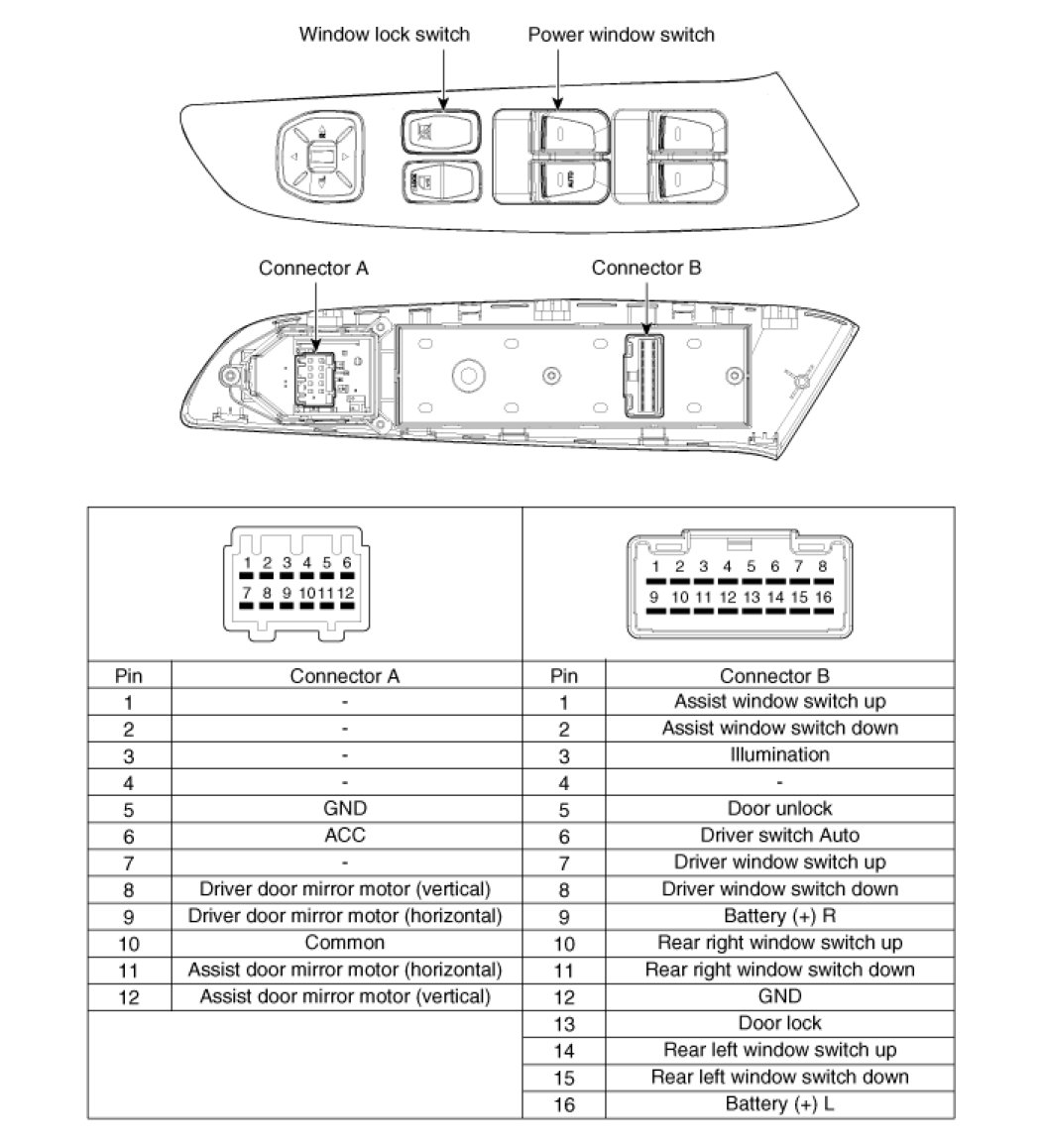

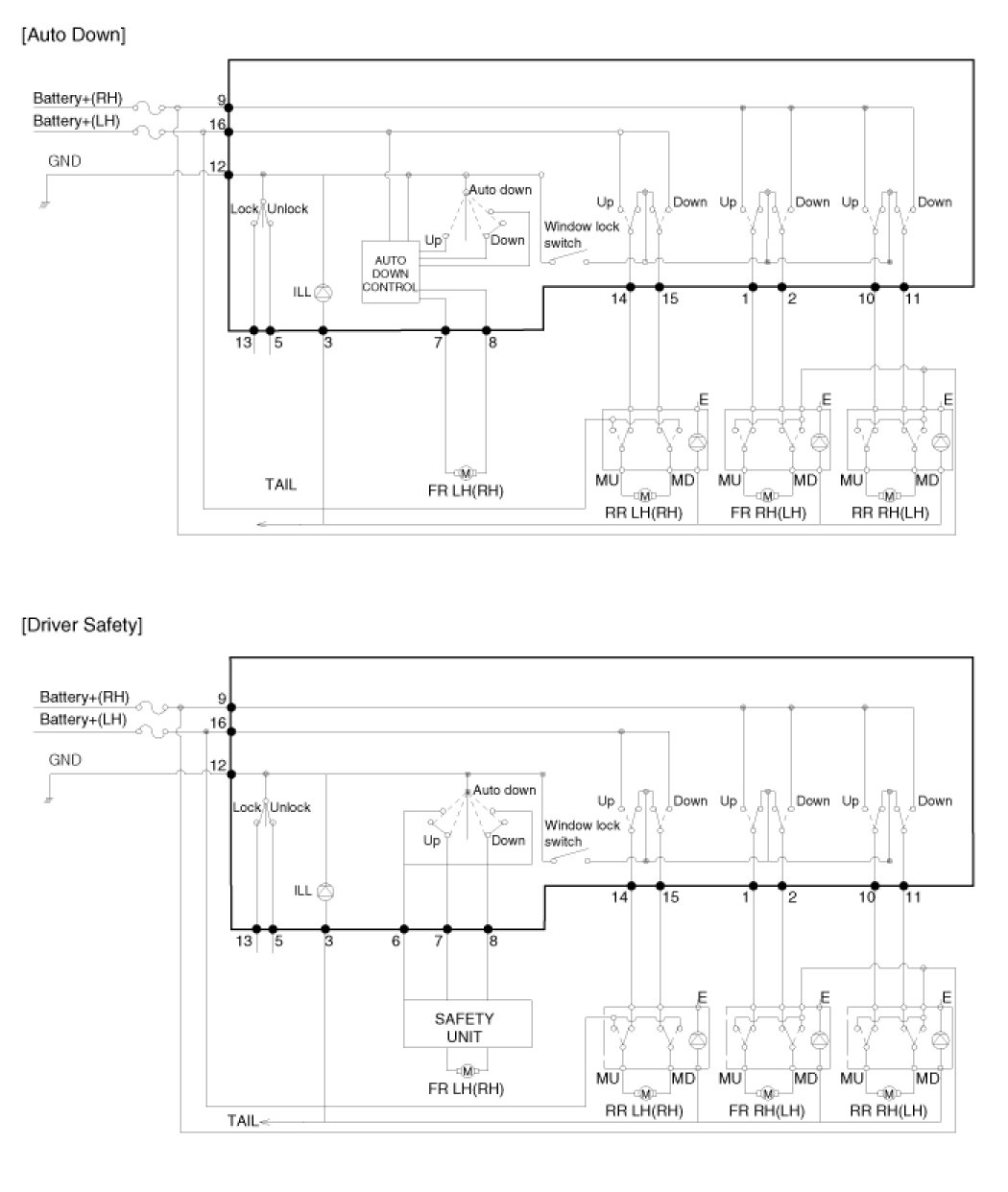

Power Window Main Switch

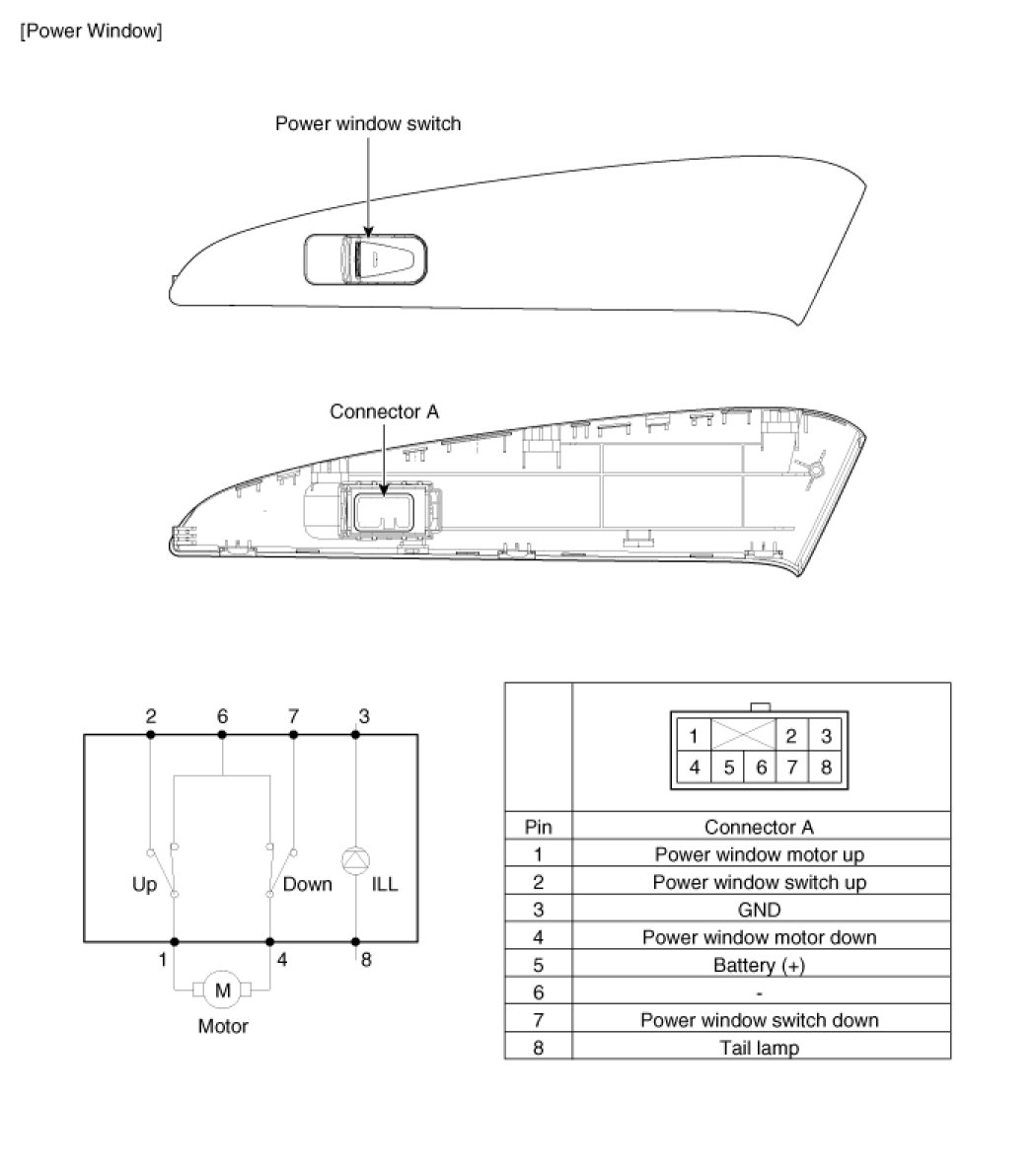

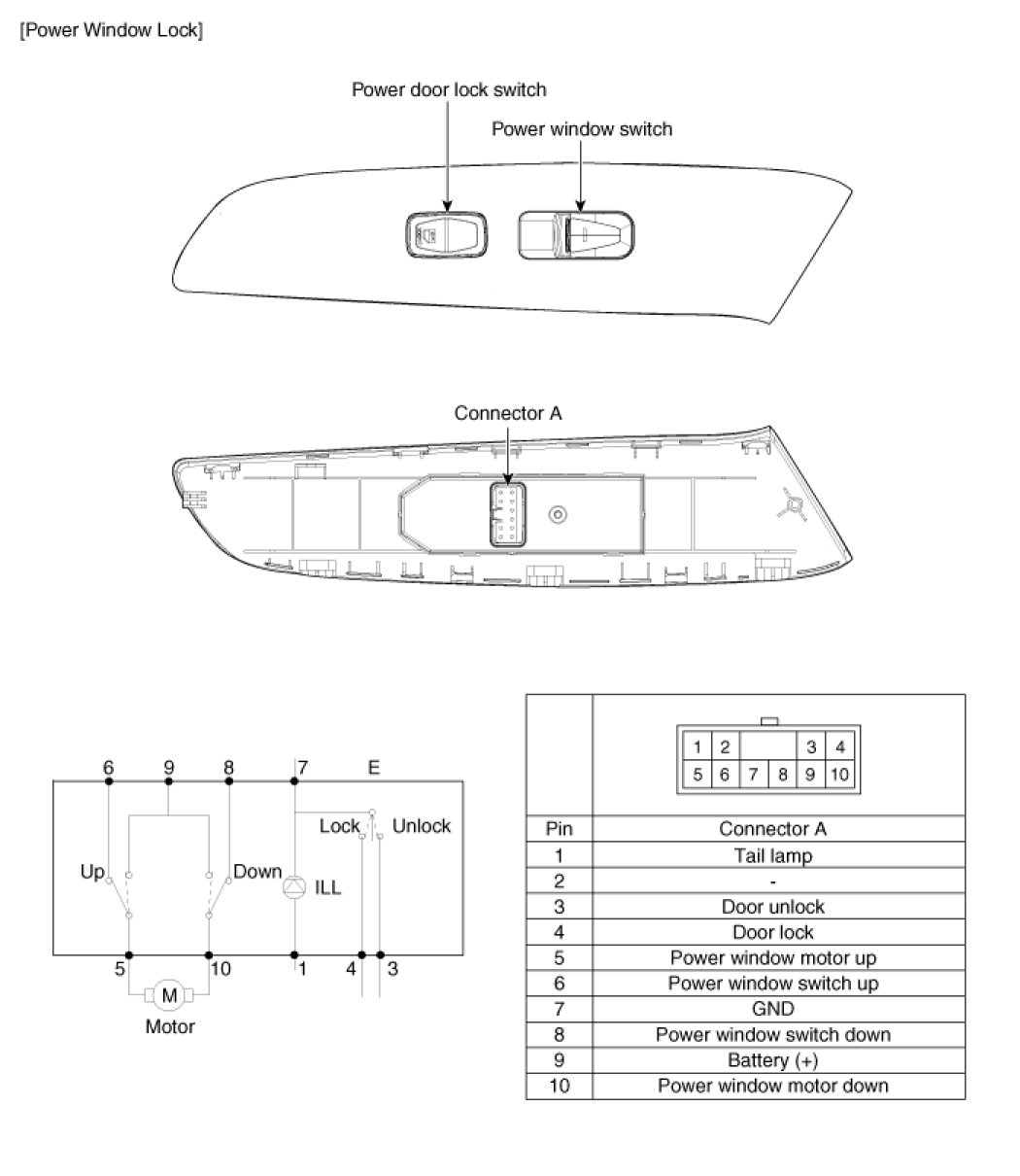

Passenger Power Window Switch

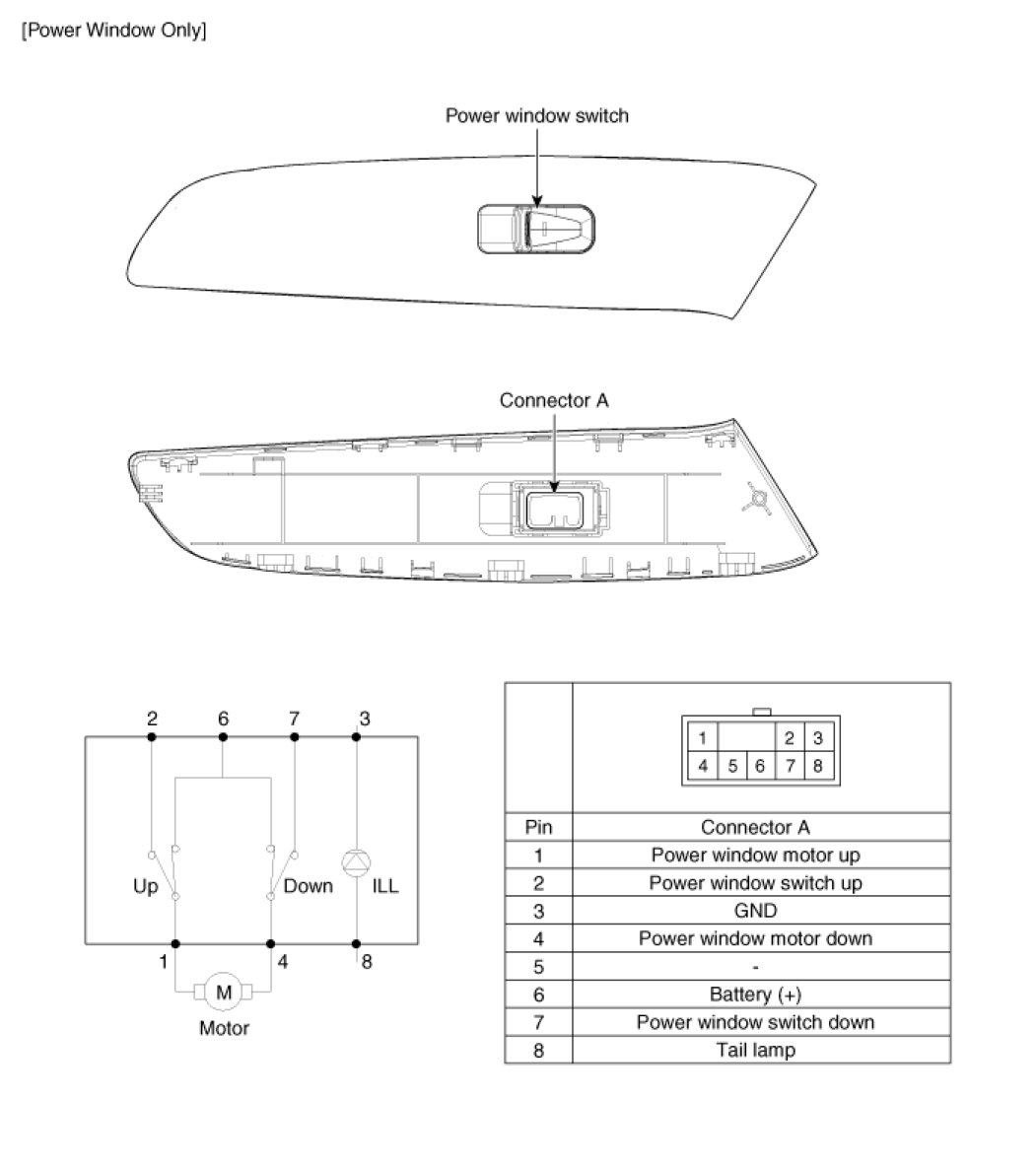

Rear Power Window Switch
