Main To Control Harness Connection

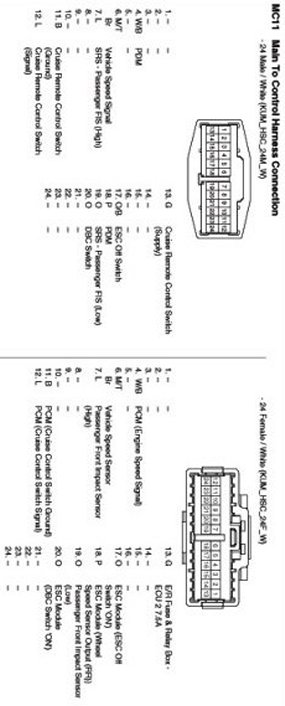

MC11 Main To Control Harness Connection:

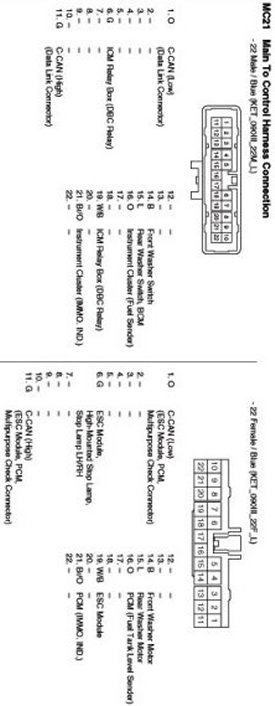

MC21 Main To Control Harness Connection:

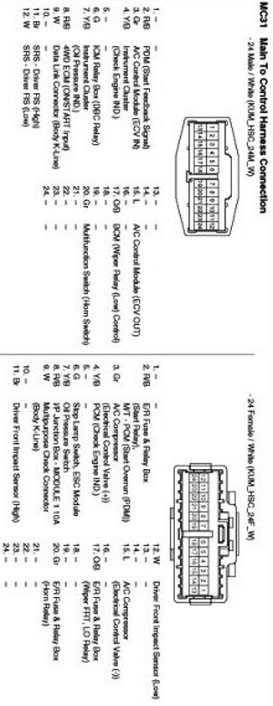

MC31 Main To Control Harness Connection:






MC41 Main To Control Harness Connection:






MC51 Main To Control Harness Conection:
