Home >> Hyundai >> 2010 >> Tucson AWD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch >> Outline

Outline

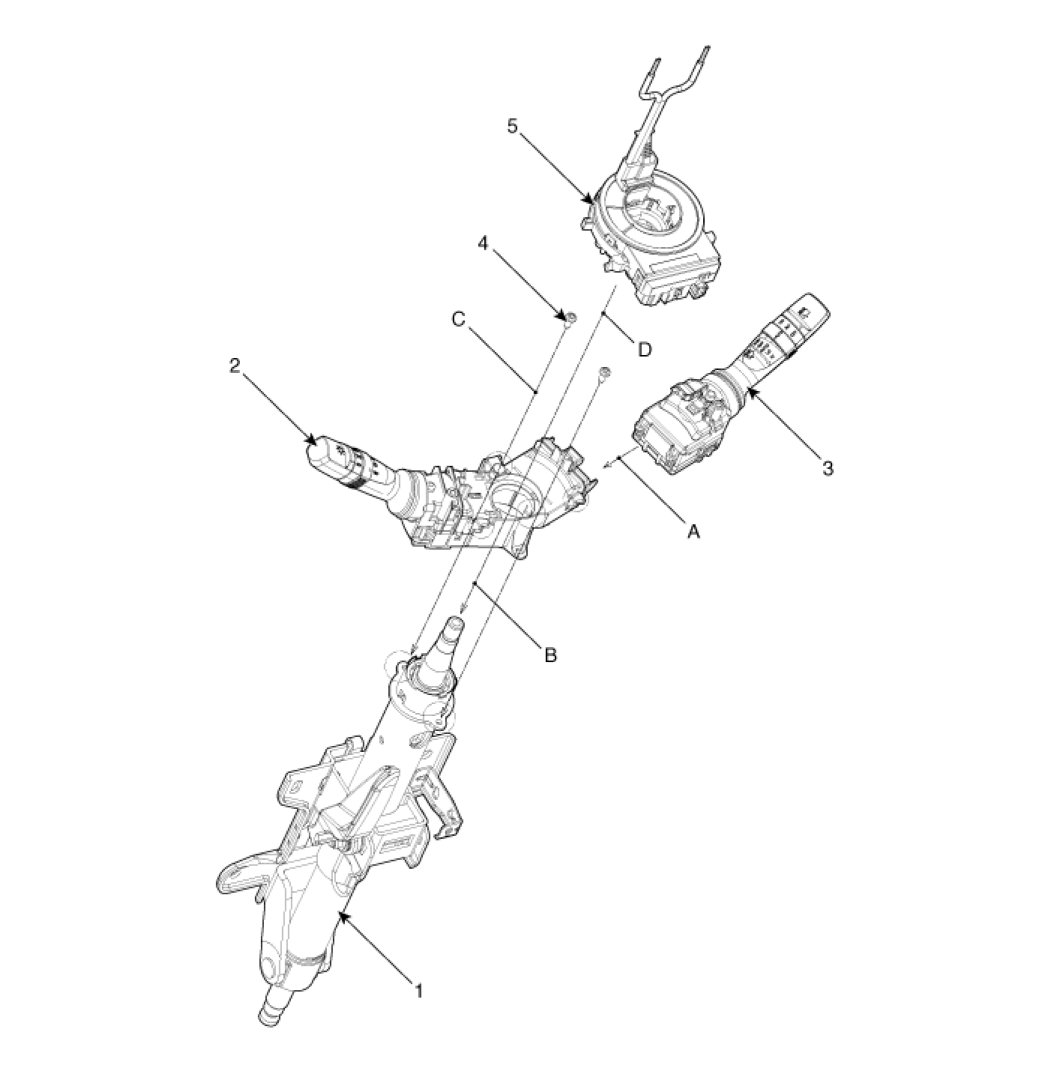

Component (1)




B->C->D>

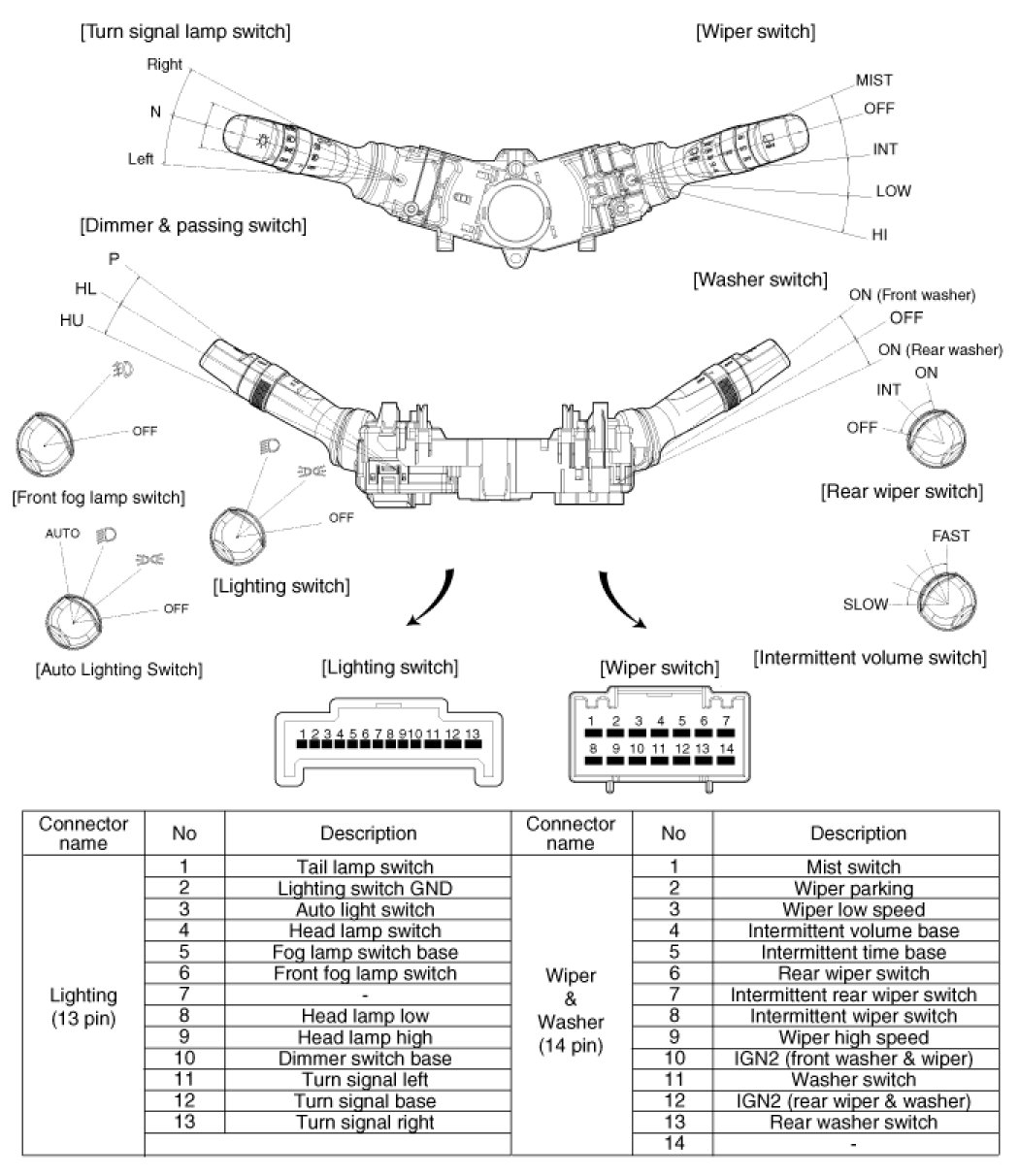

Component (2)
