Home >> Hyundai >> 2010 >> Sonata V6-3.3L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations





Component location

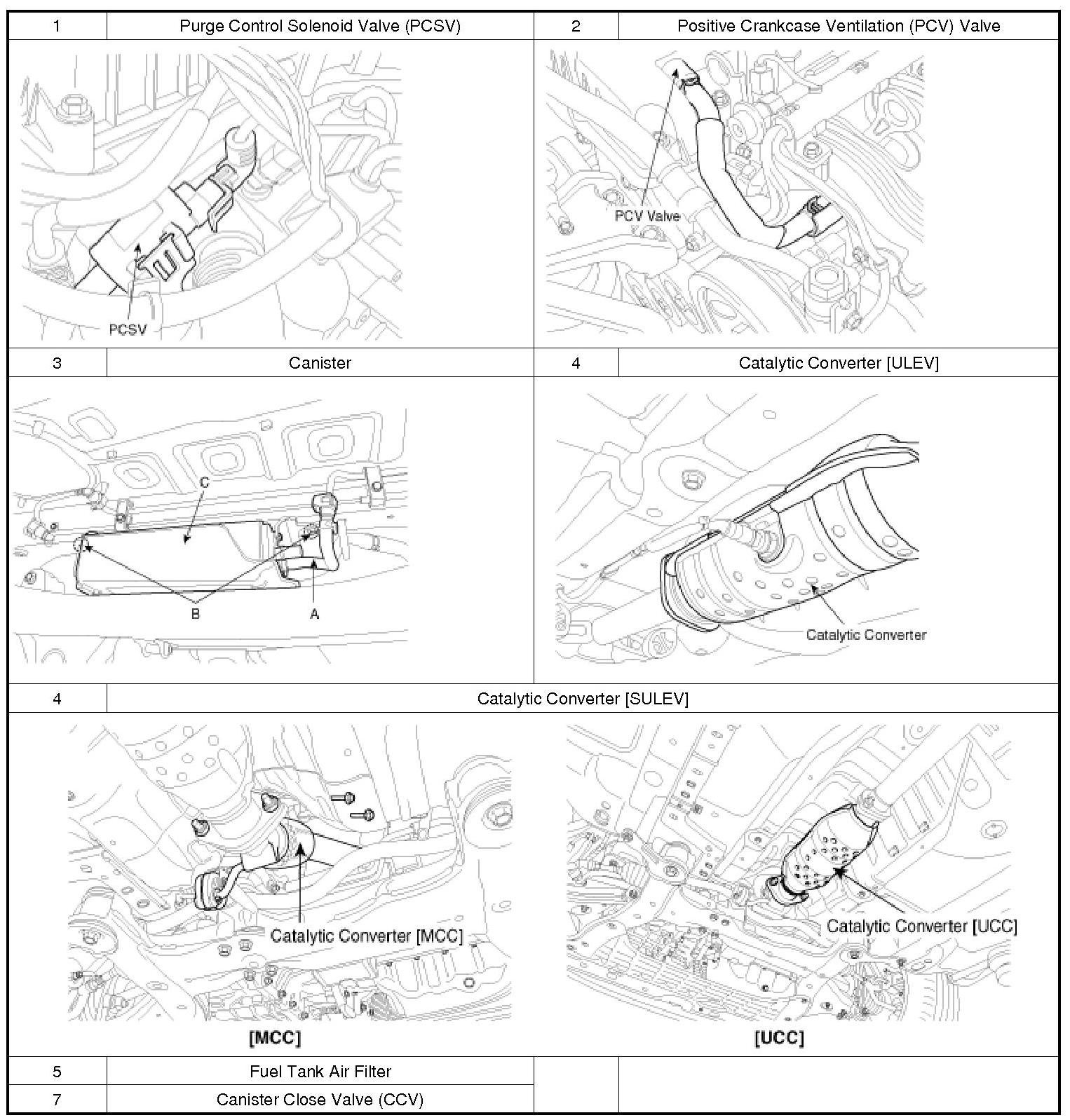

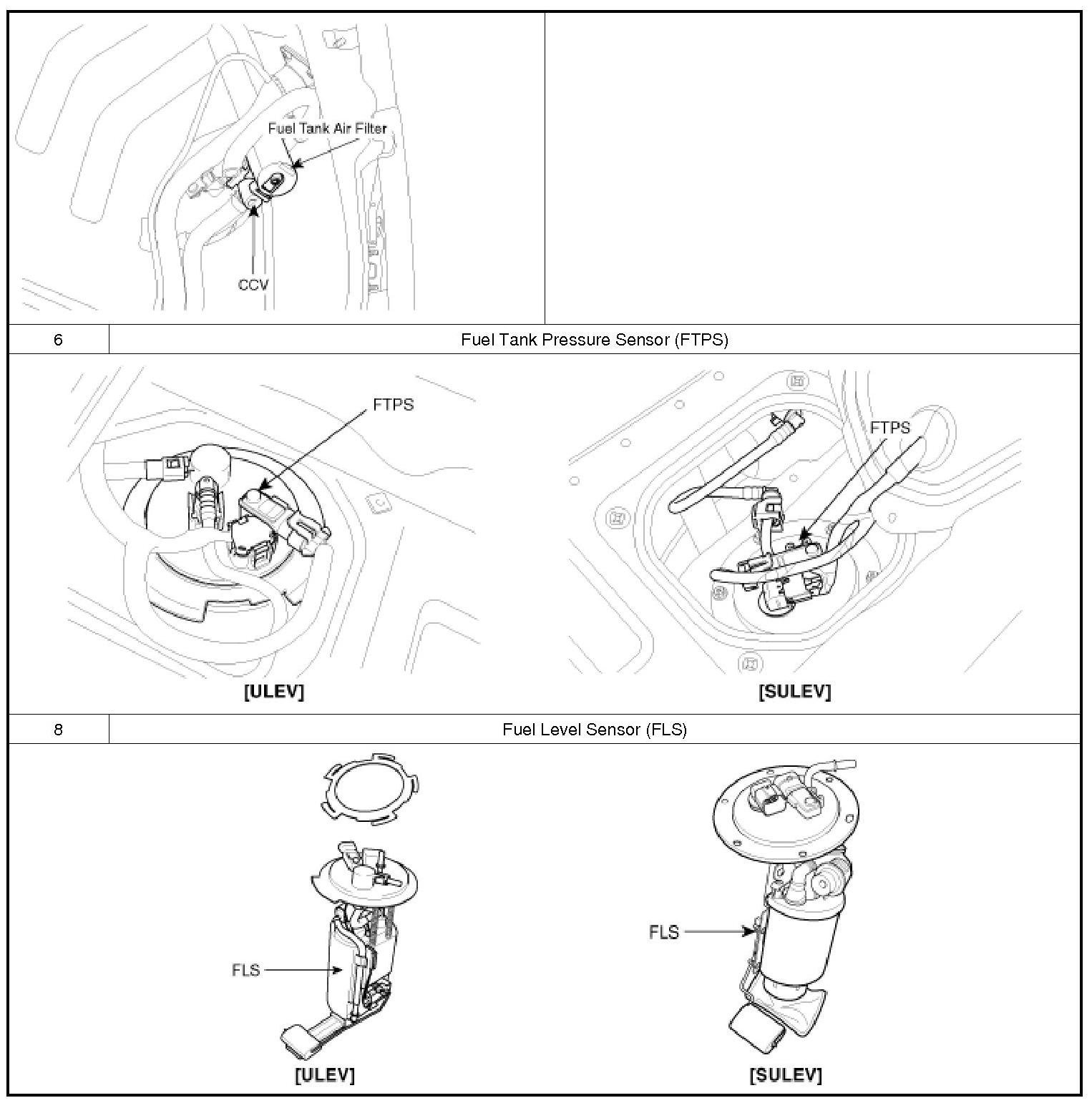

[2.4 DOHC]

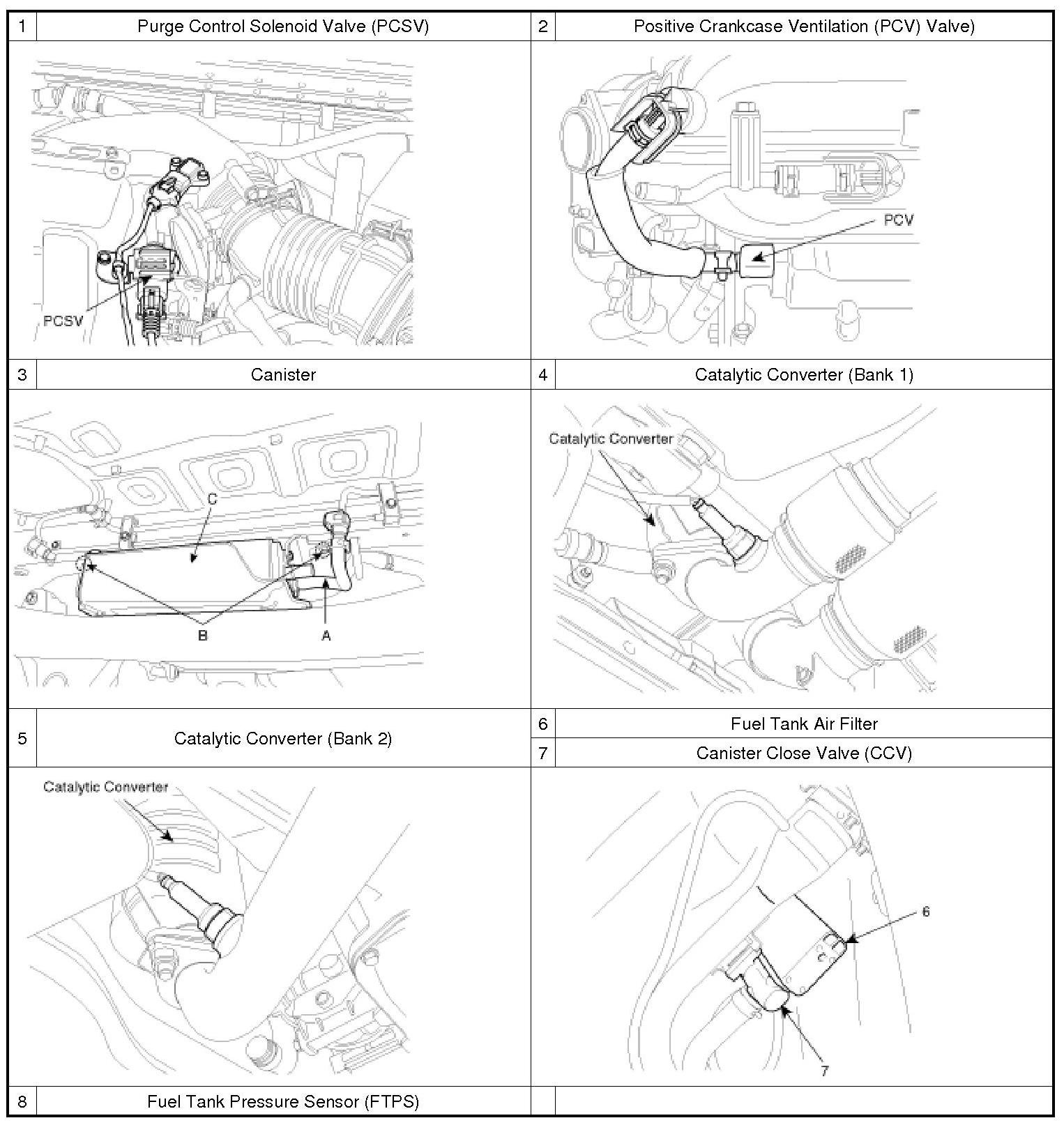

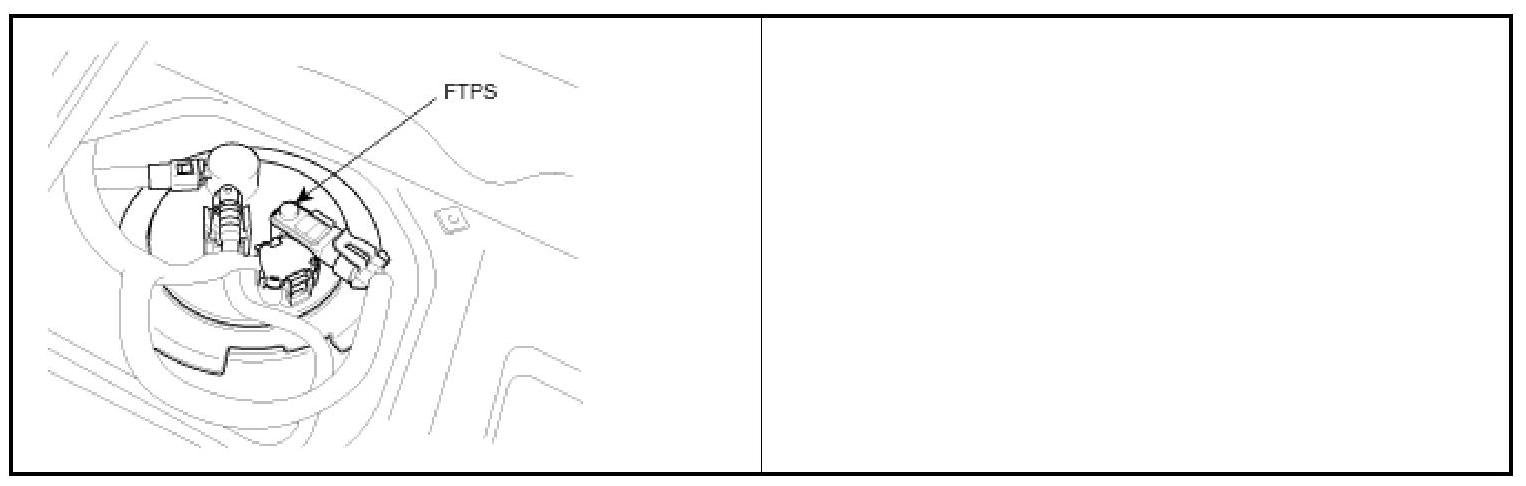

[3.3 V6]
