Home >> Hyundai >> 2010 >> Sonata V6-3.3L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Timing Chain

Timing Chain

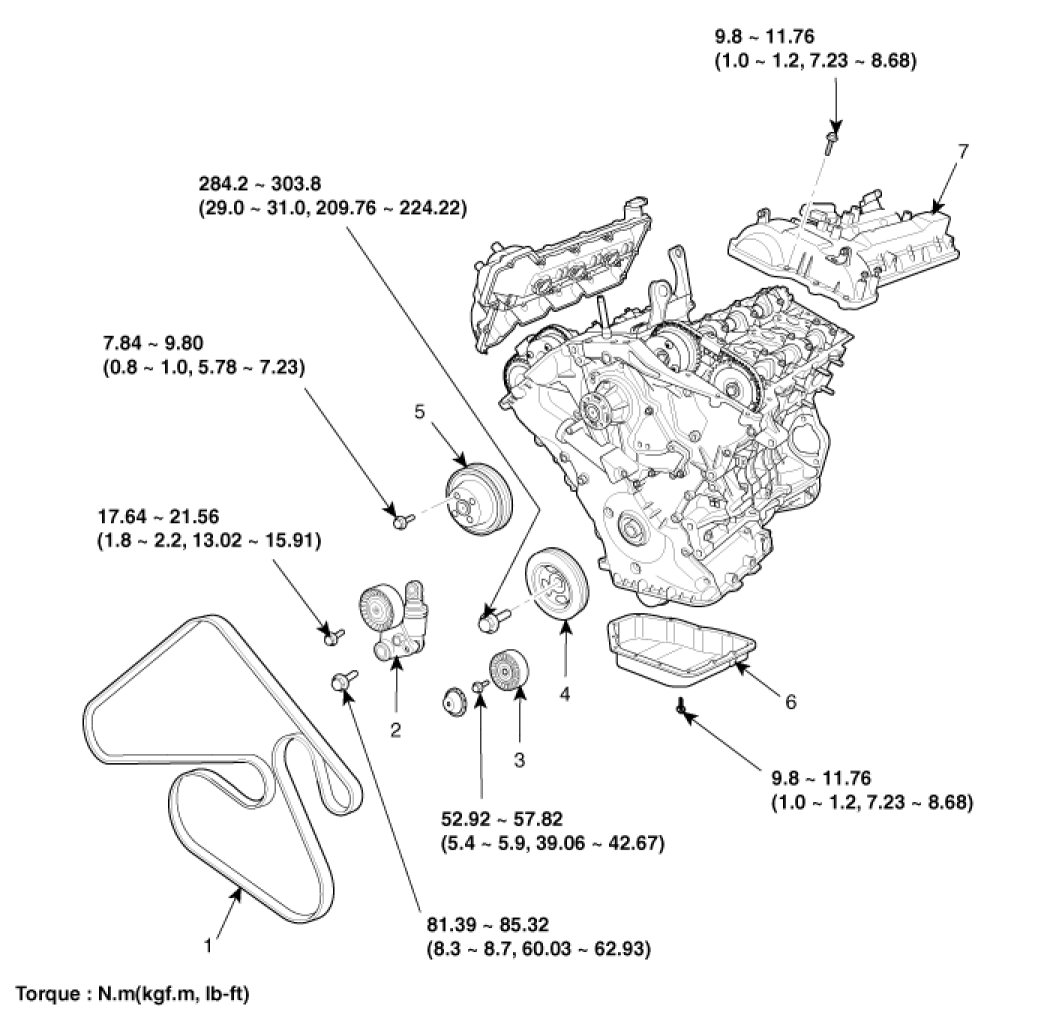

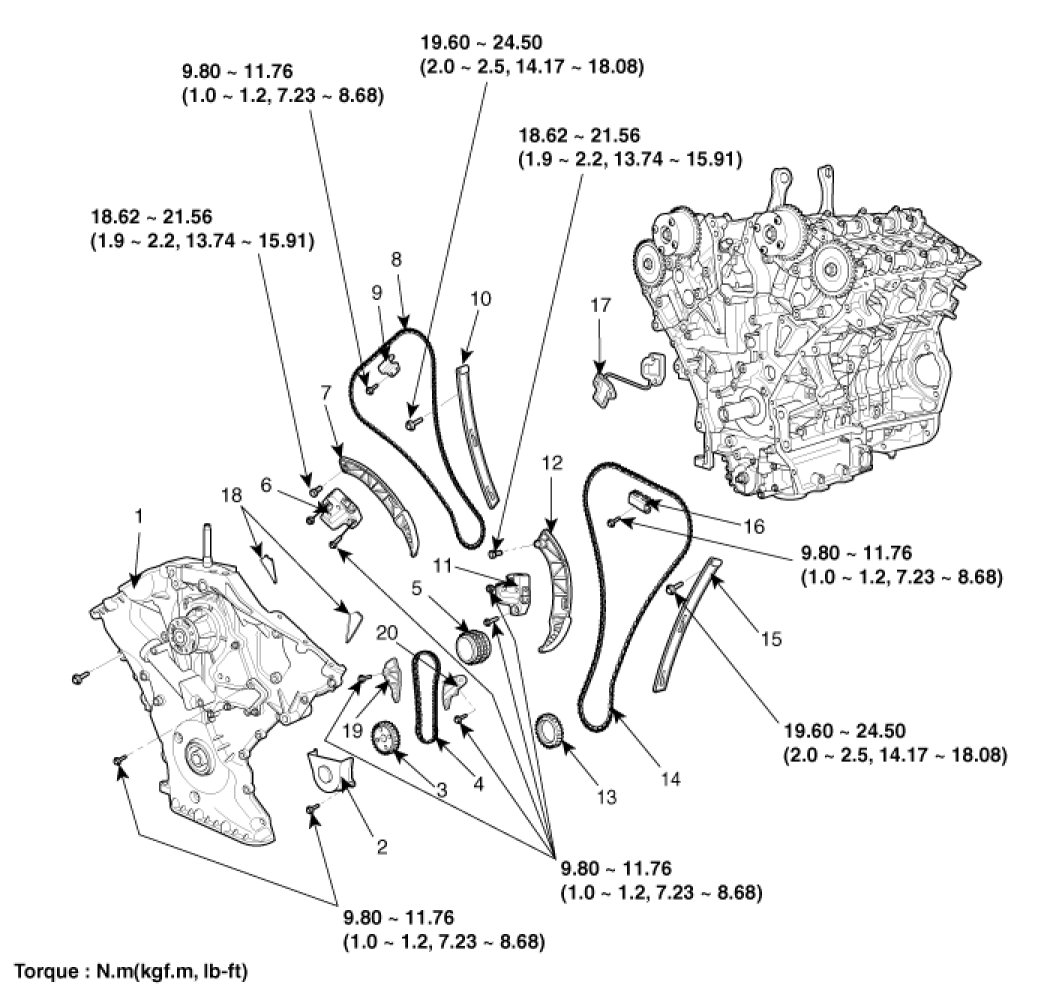

Components
