Home >> Hyundai >> 2010 >> Sonata L4-2.4L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Locations

Emission Control Systems: Locations

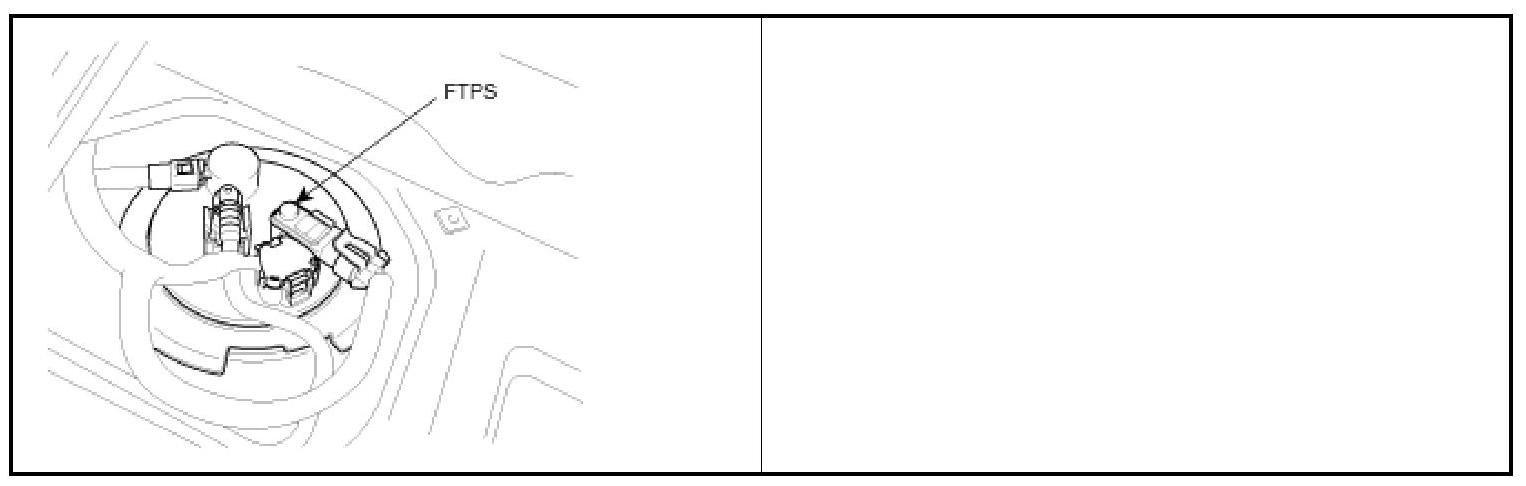

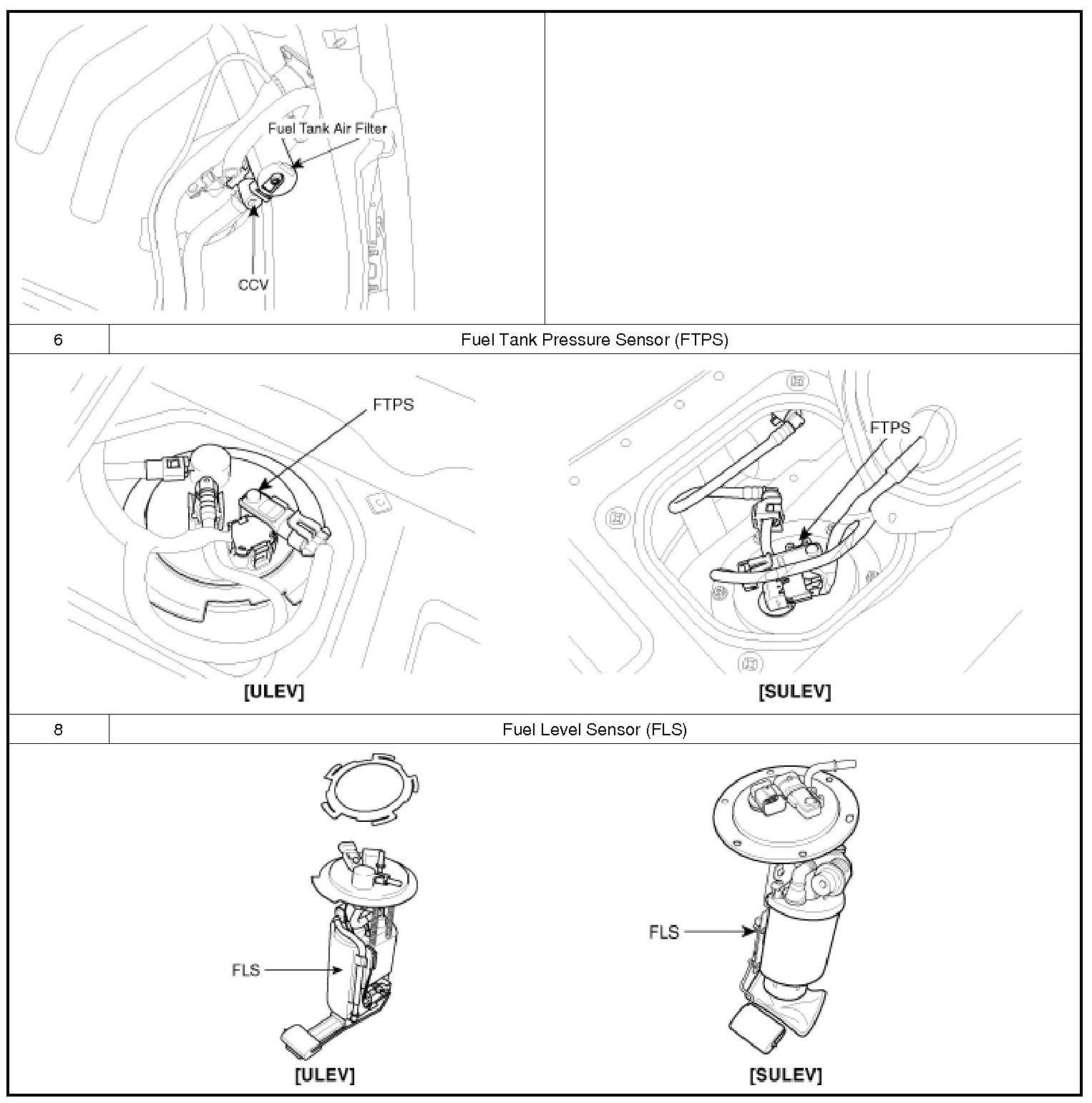

Component location

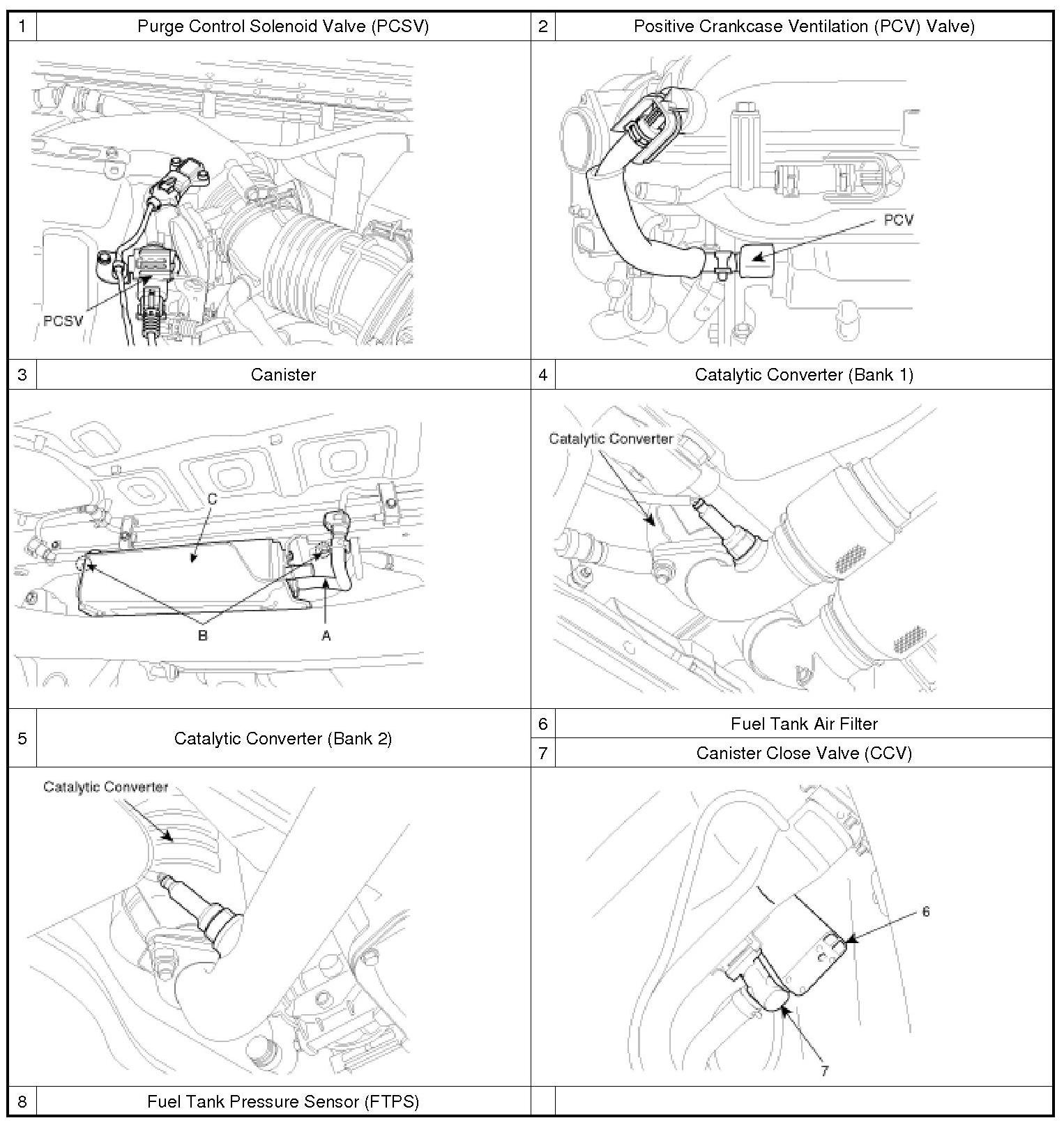

[2.4 DOHC]

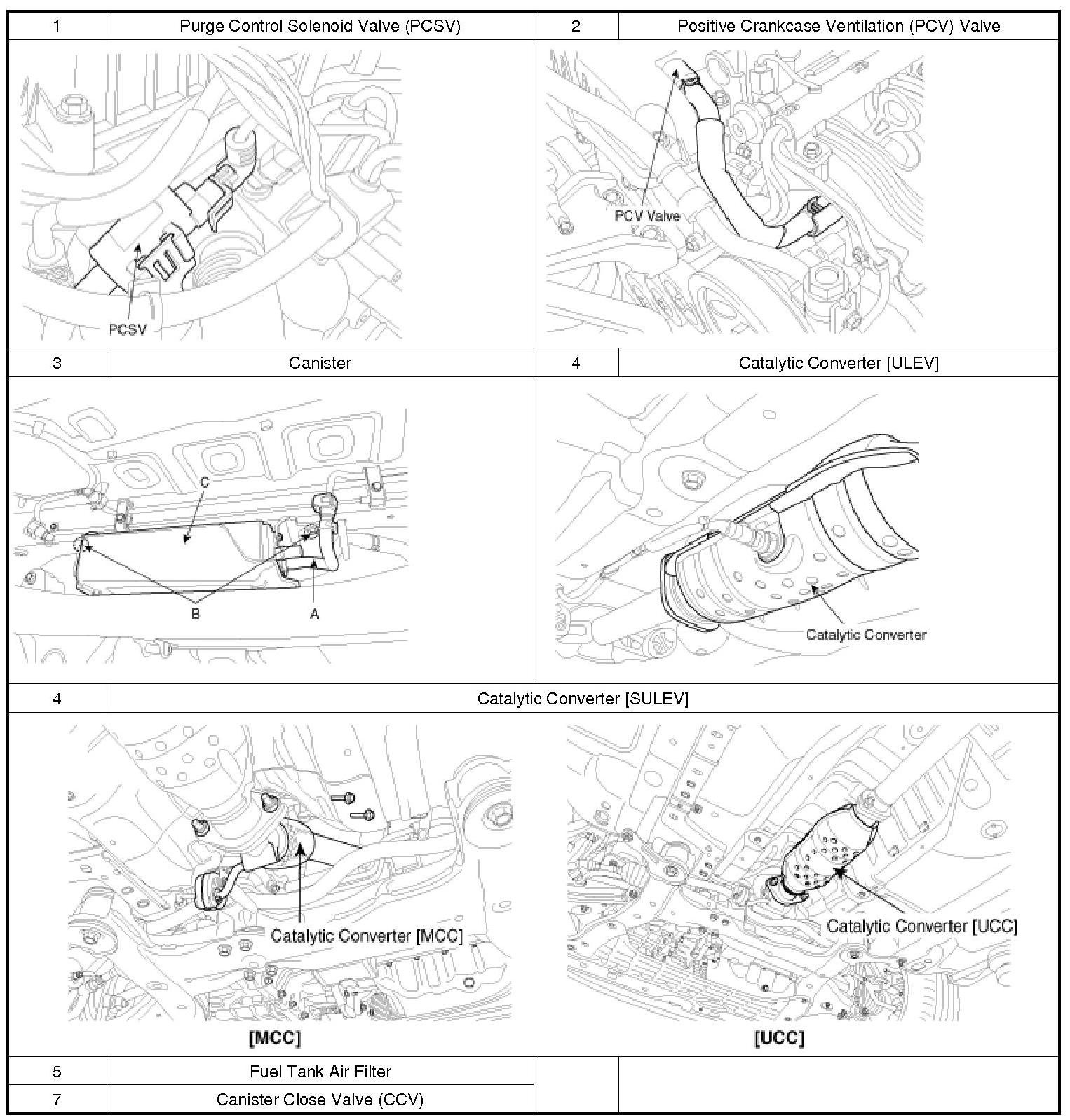

[3.3 V6]
