Home >> Hyundai >> 2010 >> Santa Fe AWD V6-3.5L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Suspension >> System Specifications

System Specifications

Specifications

Tightening Torques

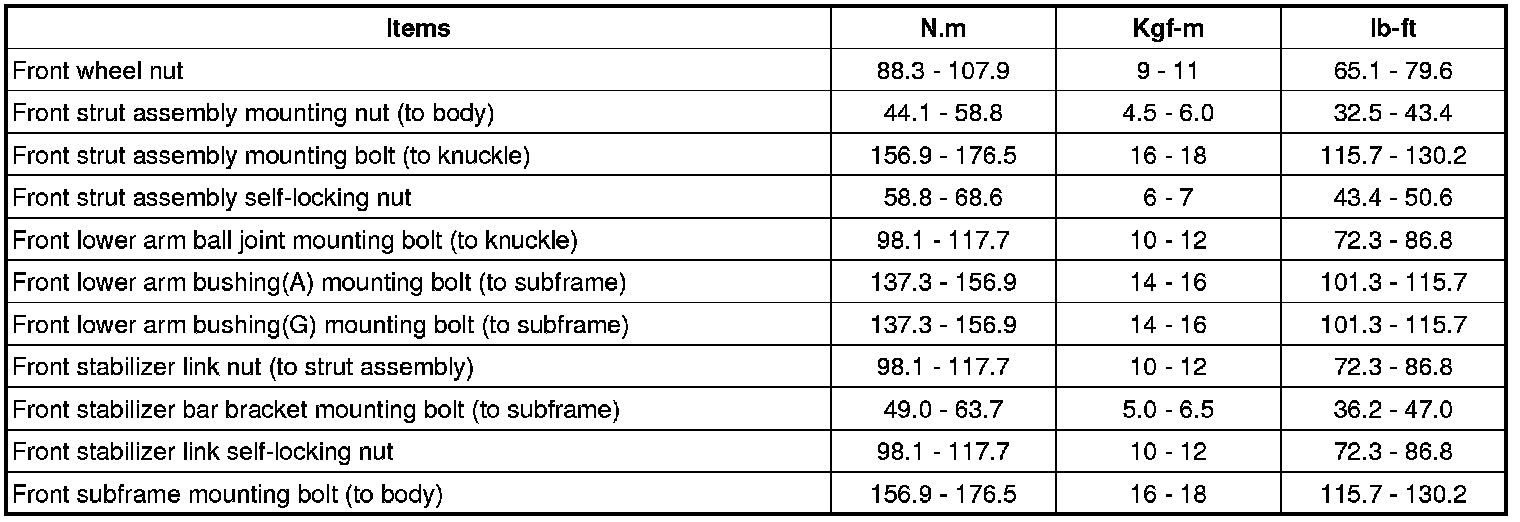

Front Suspension

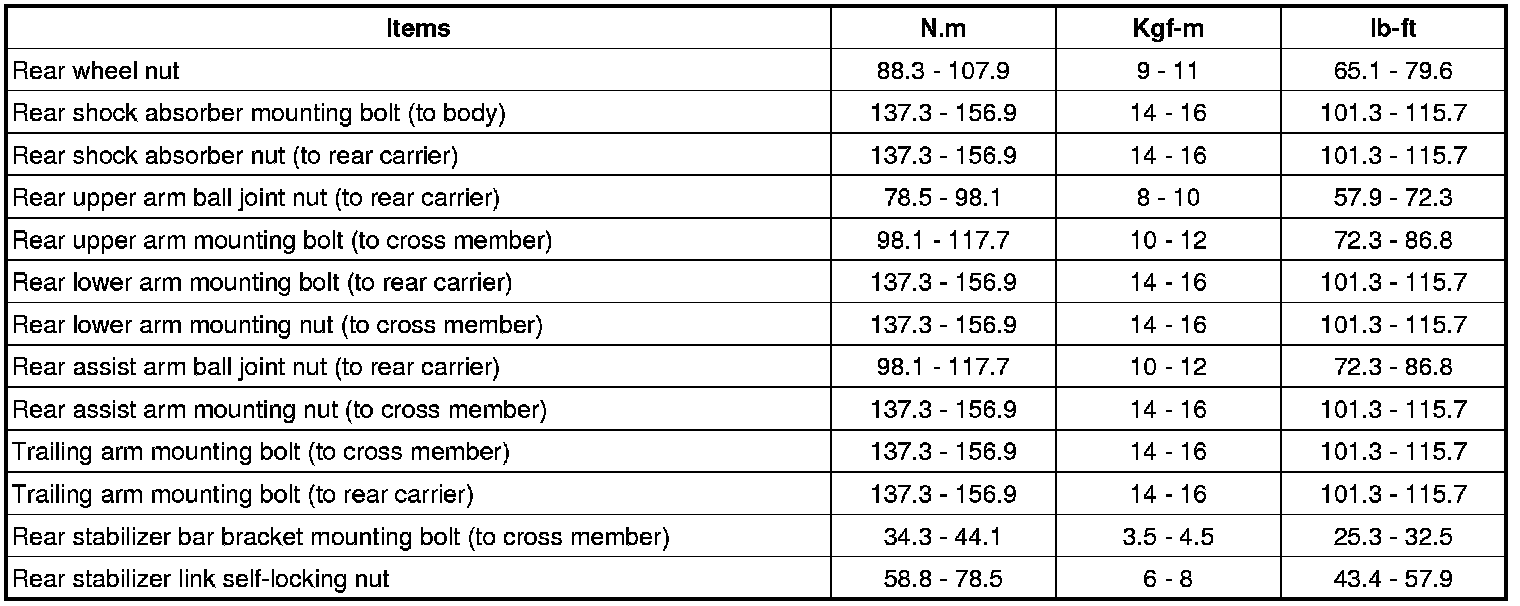

Rear Suspension

CAUTION:
Replace the self-locking nuts with new ones after removal.
