System Specifications





Specifications

Tightening Torques

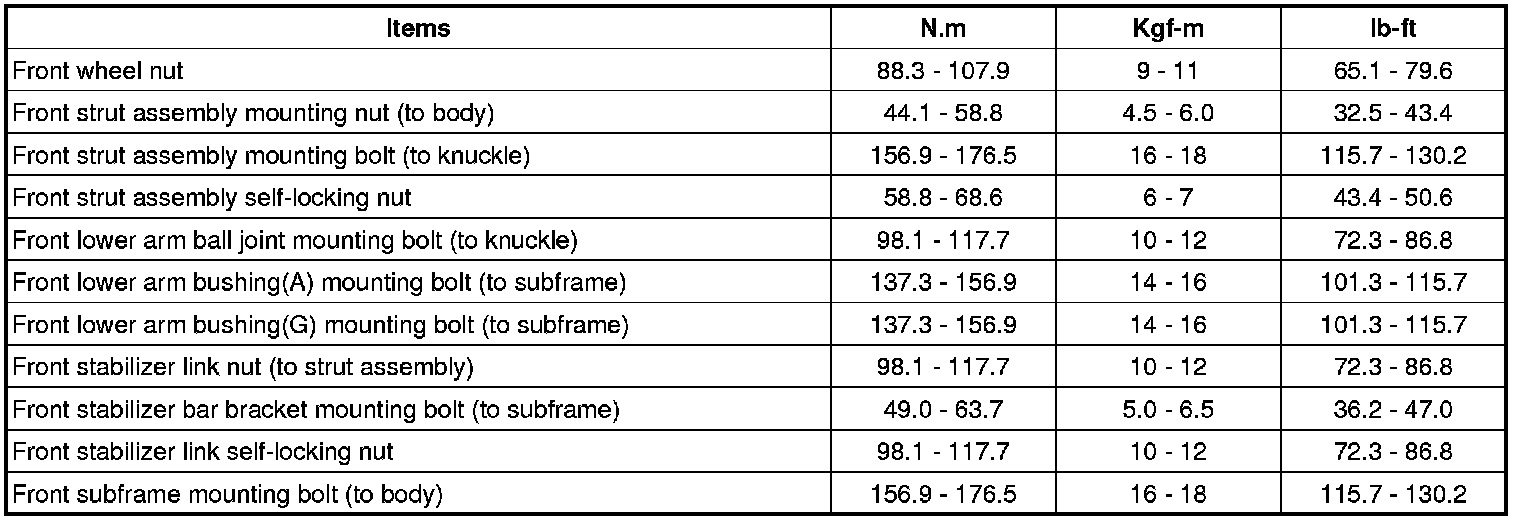

Front Suspension

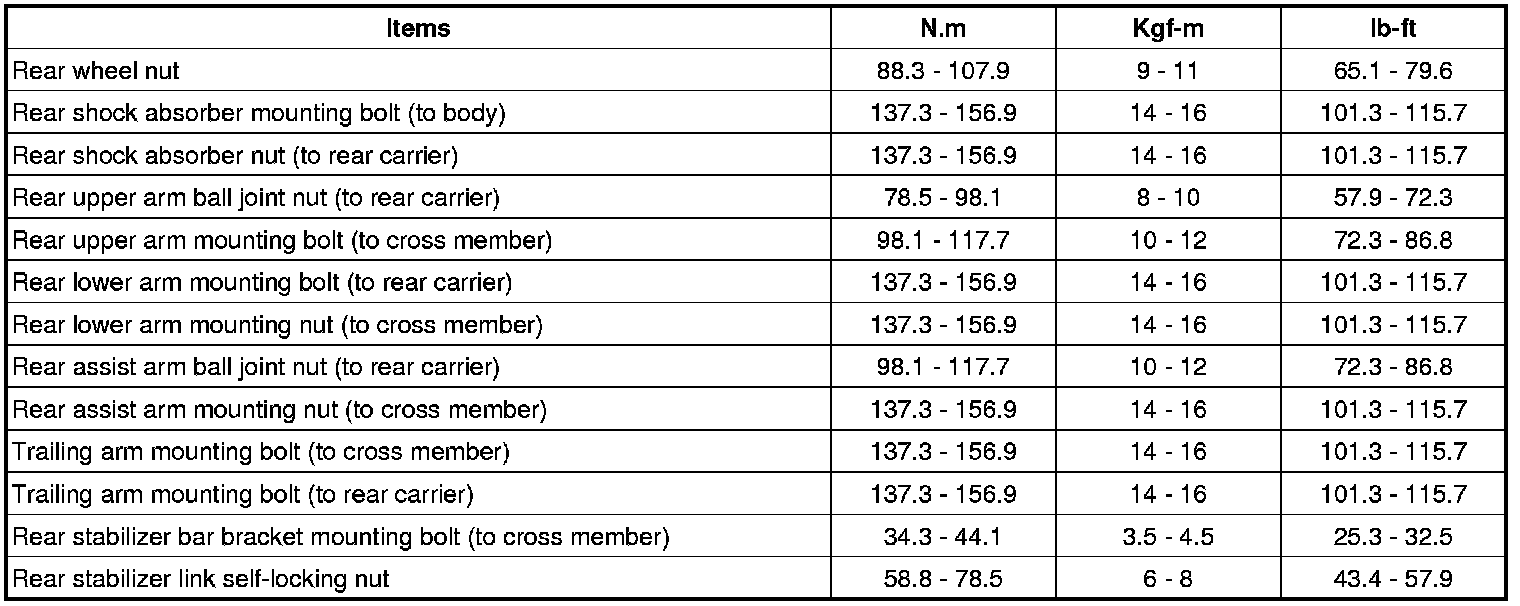

Rear Suspension






CAUTION:
Replace the self-locking nuts with new ones after removal.
