Hyundai
>>
2010
>>
Genesis Sedan V8-4.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Memory Positioning Systems
Memory Positioning Systems
Inspection

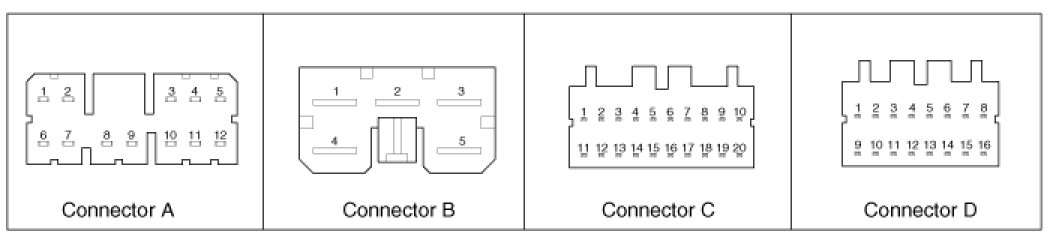

IMS Connectors

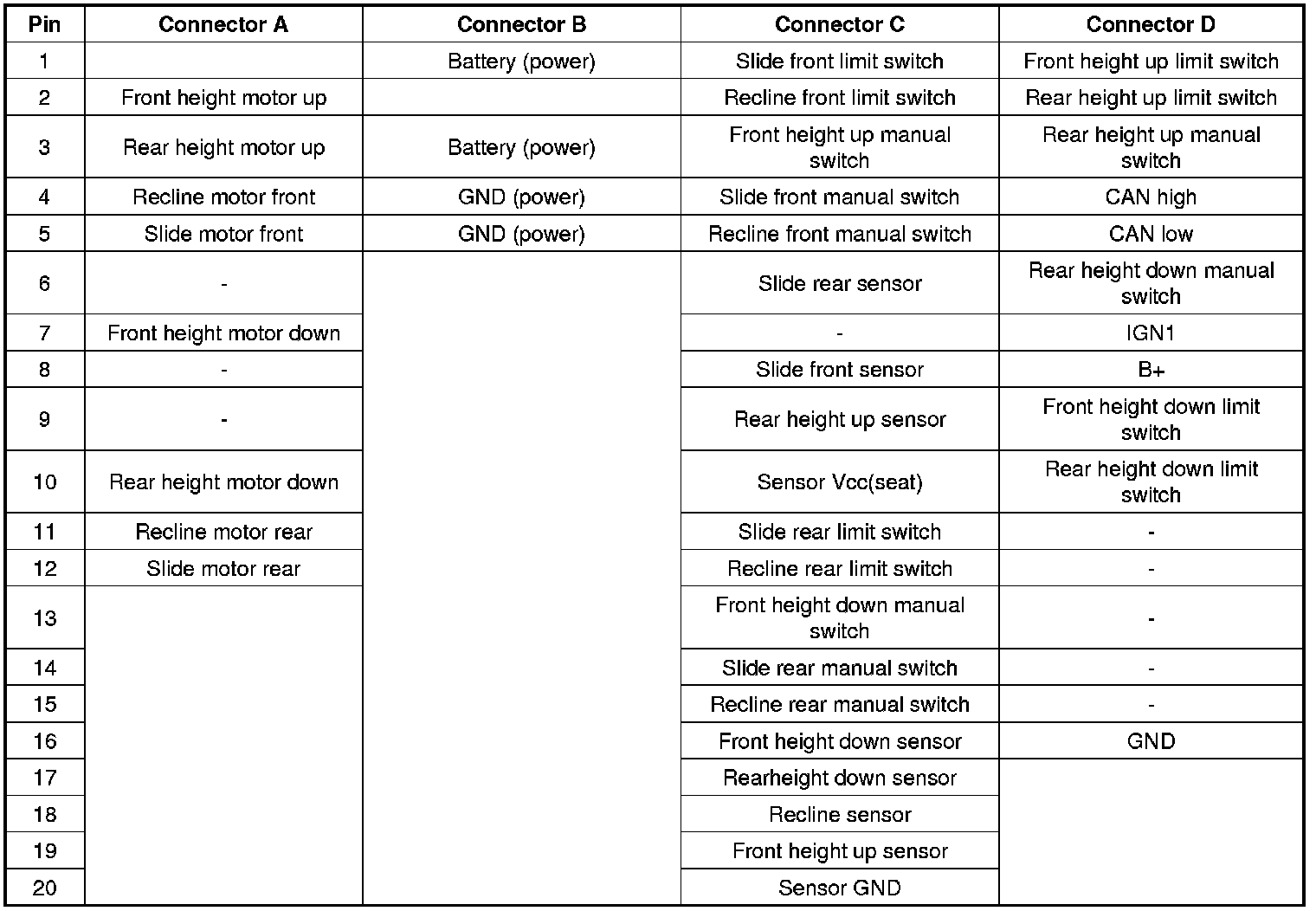

Connector Pin Name

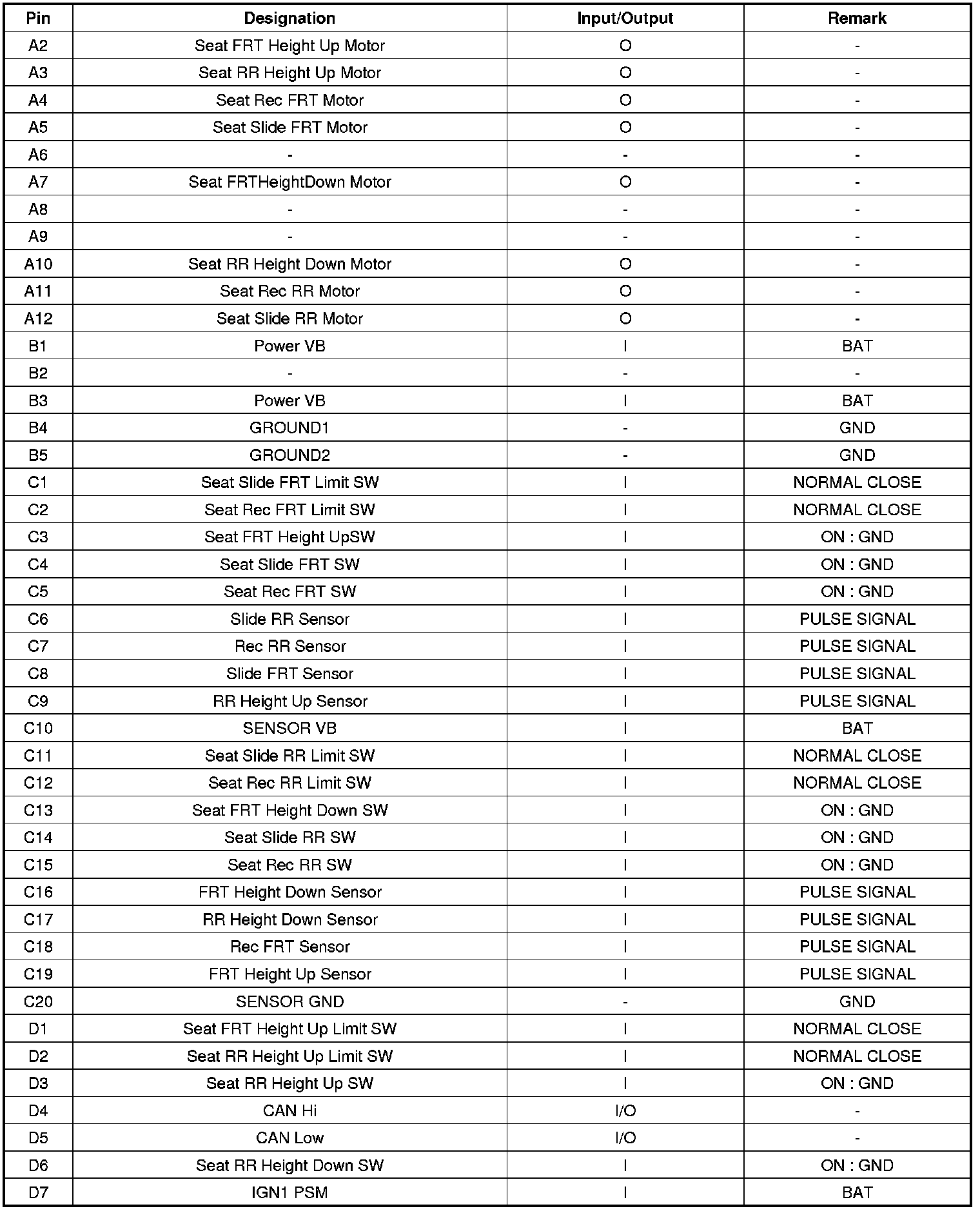

IMS Input/Output Specification
