Home >> Hyundai >> 2010 >> Genesis Sedan V6-3.8L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Central Control Module

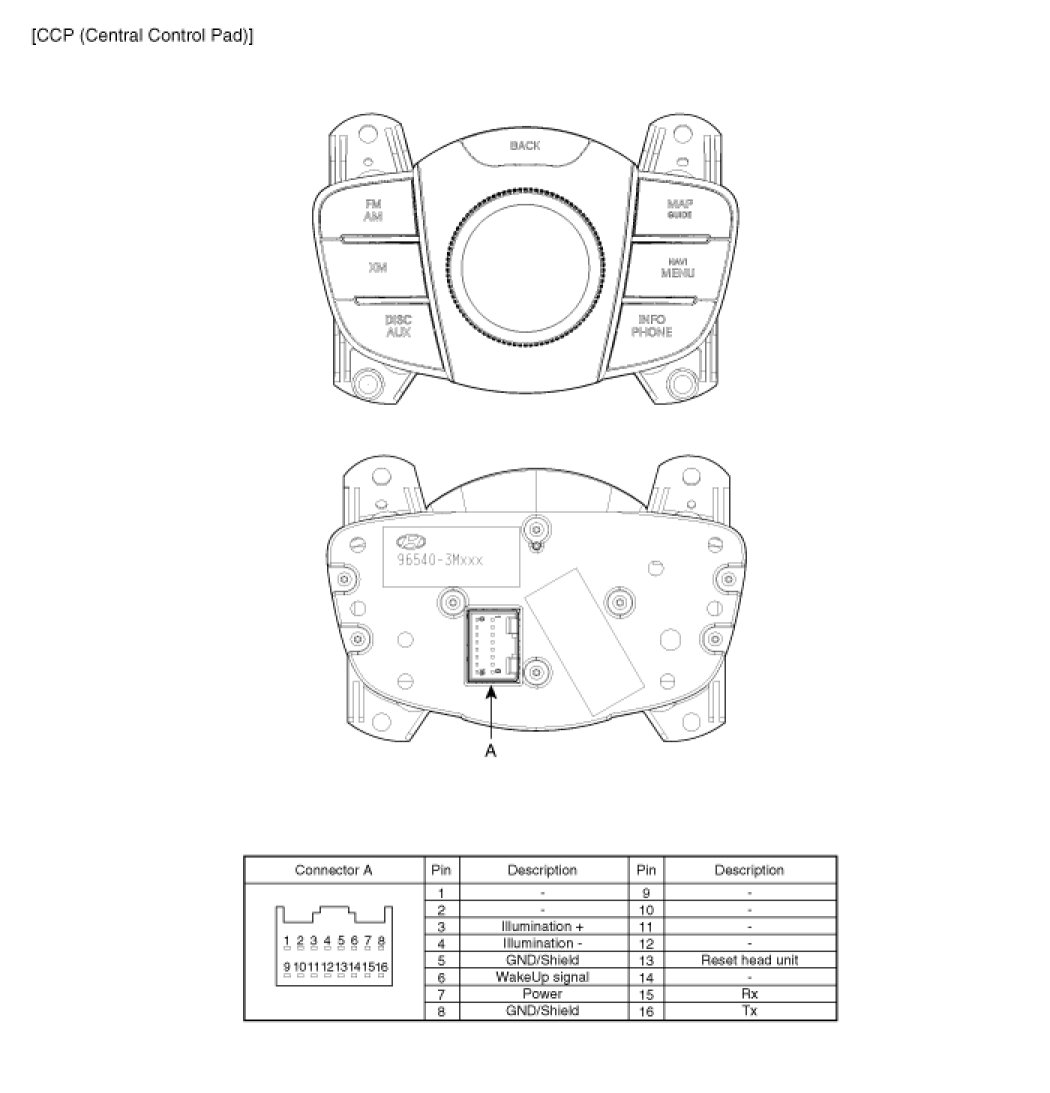

Central Control Module





Component Location
