Repair Procedures





Removal

1. Disconnect the negative(-) battery terminal.
2. Remove the crash pad lower panel(A).

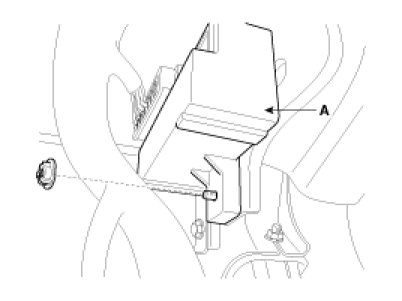

3. Remove the ICM relay box(A) after disconnecting the connector and removing the mounting nut.






Installation

1. Install the ICM relay box.
2. Install the crash pad lower panel.
