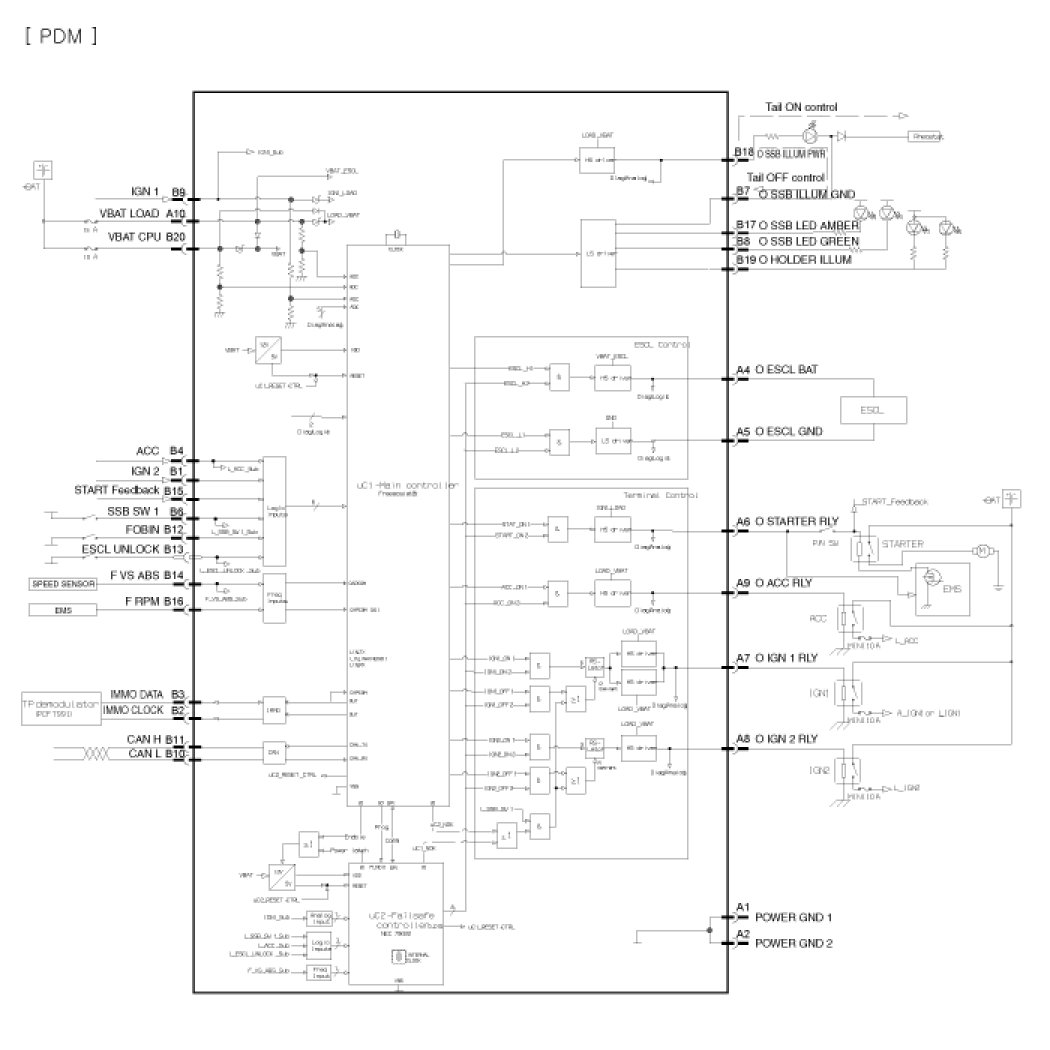

Home >> Hyundai >> 2010 >> Genesis Coupe V6-3.8L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> Keyless Starting System >> Keyless Start Control Module >> PDM(Power Distribution Module)
