Home >> Hyundai >> 2010 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Window Shade

Window Shade

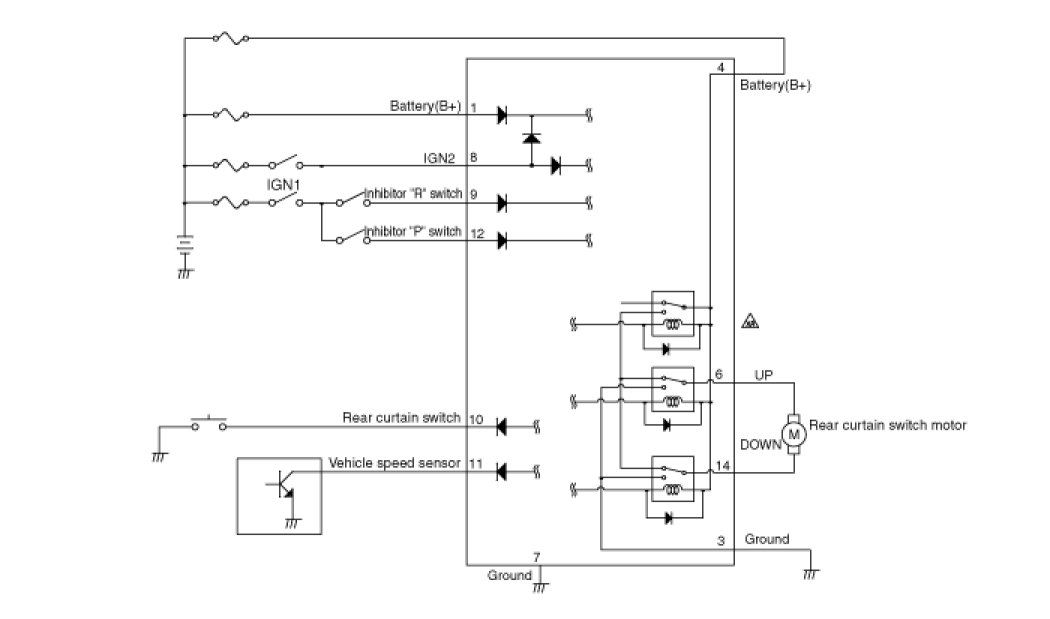

Circuit Diagram

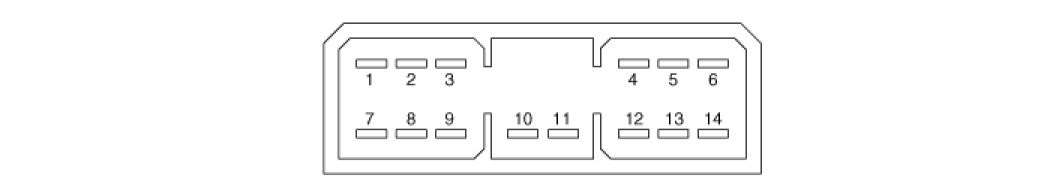

Rear Curtain Unit Connector
