Memory Positioning Switch: Testing and Inspection





Inspection

1. Remove the seat control switch.

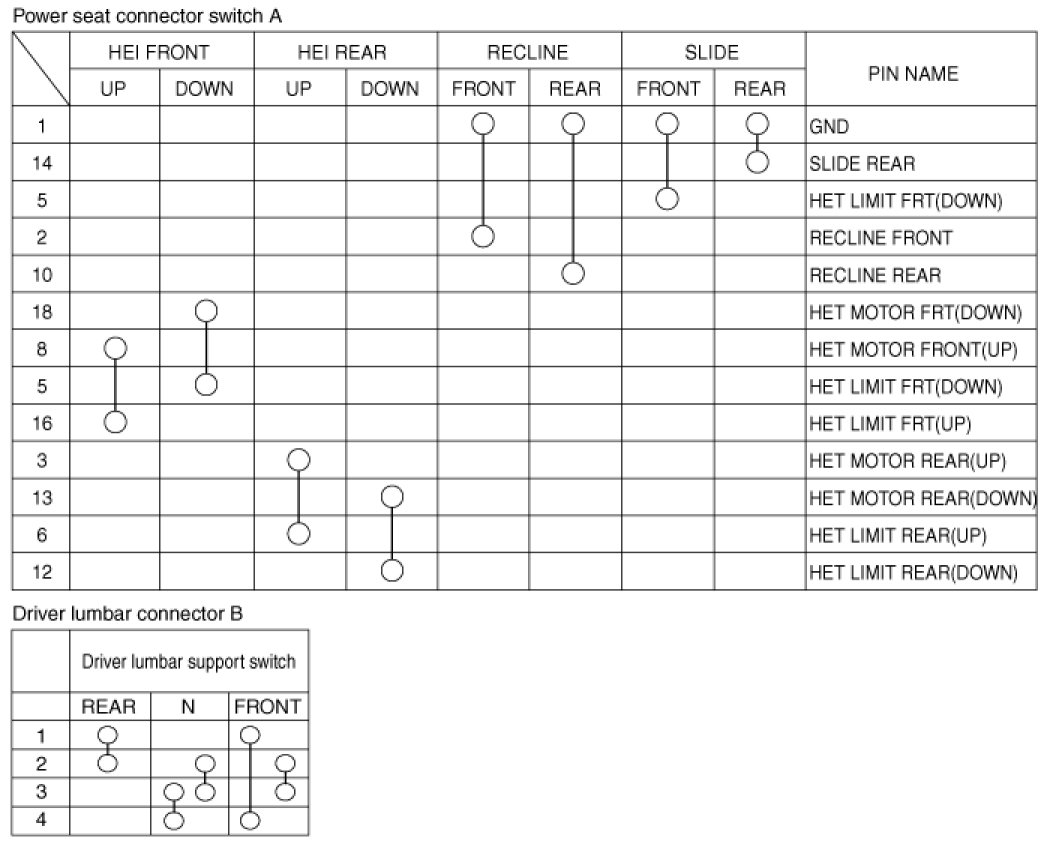

2. With the power seat control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat control switch.
