Exhaust Manifold
Exhaust Manifold
Exhaust Manifold

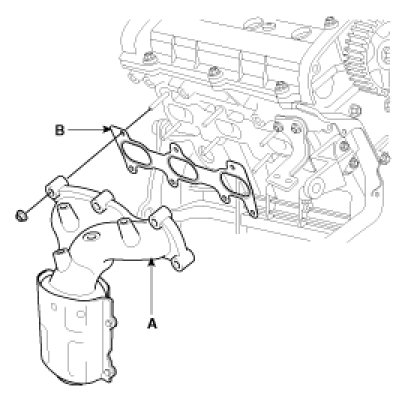

Install the
exhaust manifold
(A) and gasket(B)
Tightening torque
30 - 35 Nm (3.0 - 3.5 kgf.m, 22 - 26 lb-ft)
