Fuse: Locations

Fuse & Relay Information

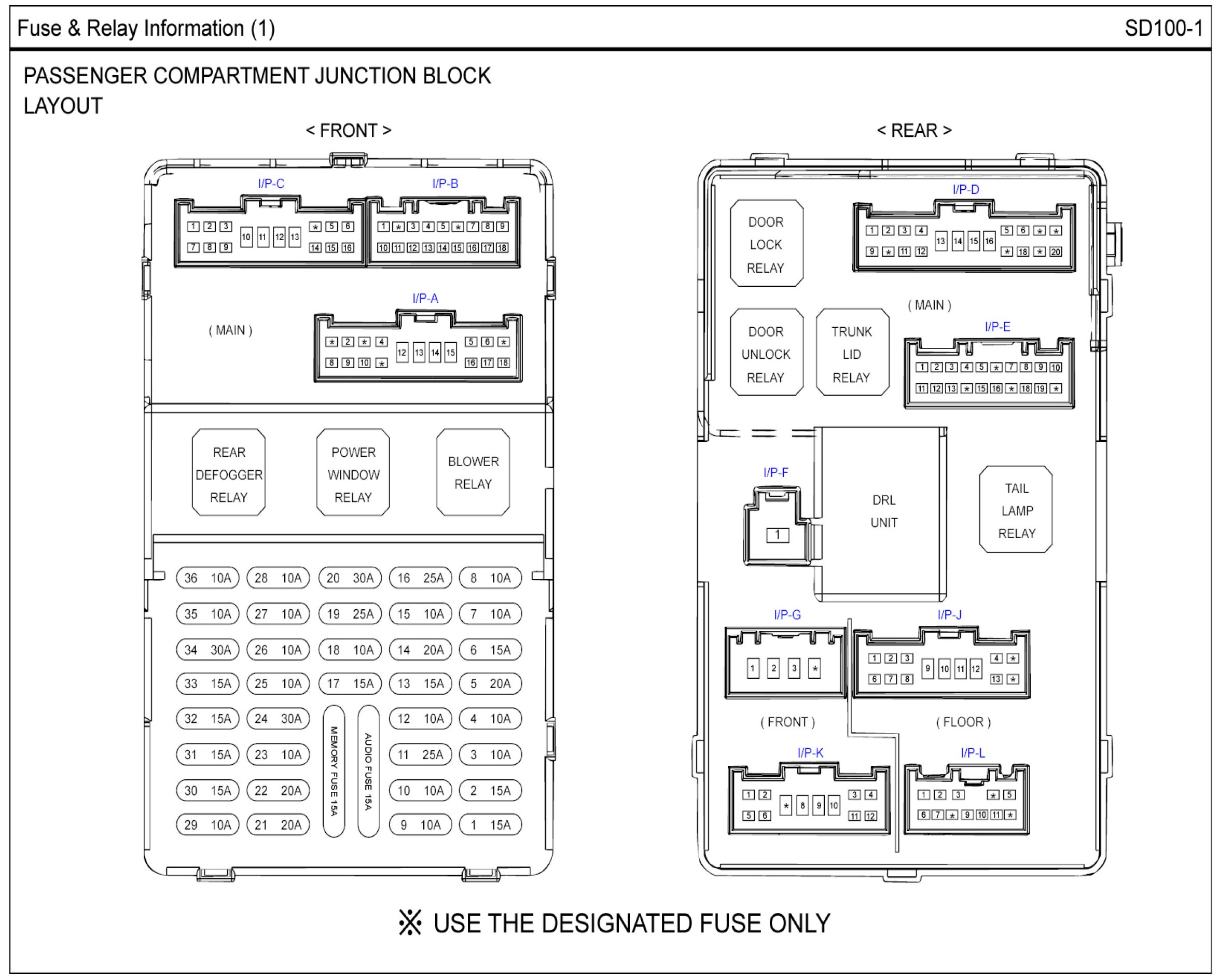

Passenger Compartment Junction Block Layout View:

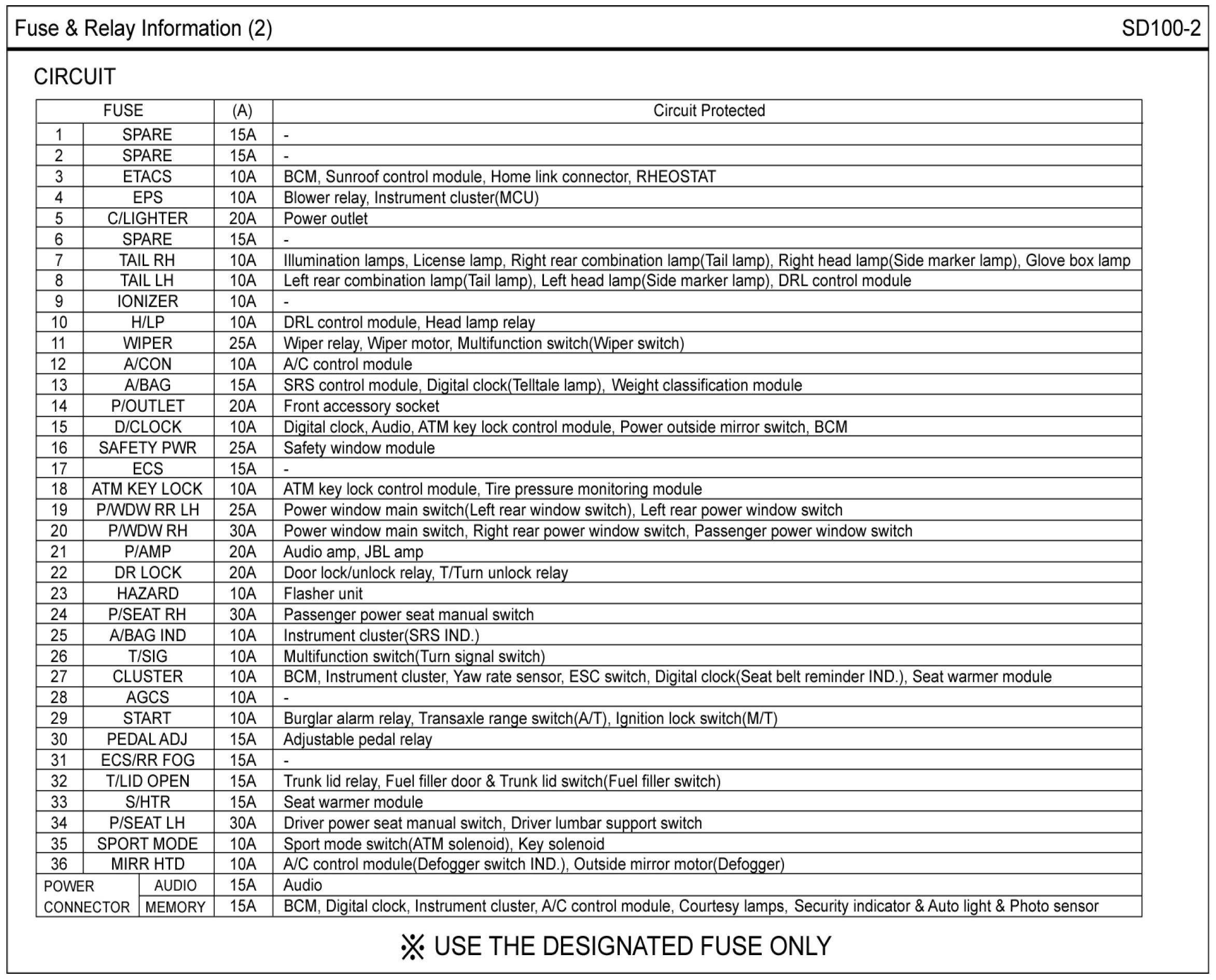

Passenger Compartment Junction Block Circuit Details:

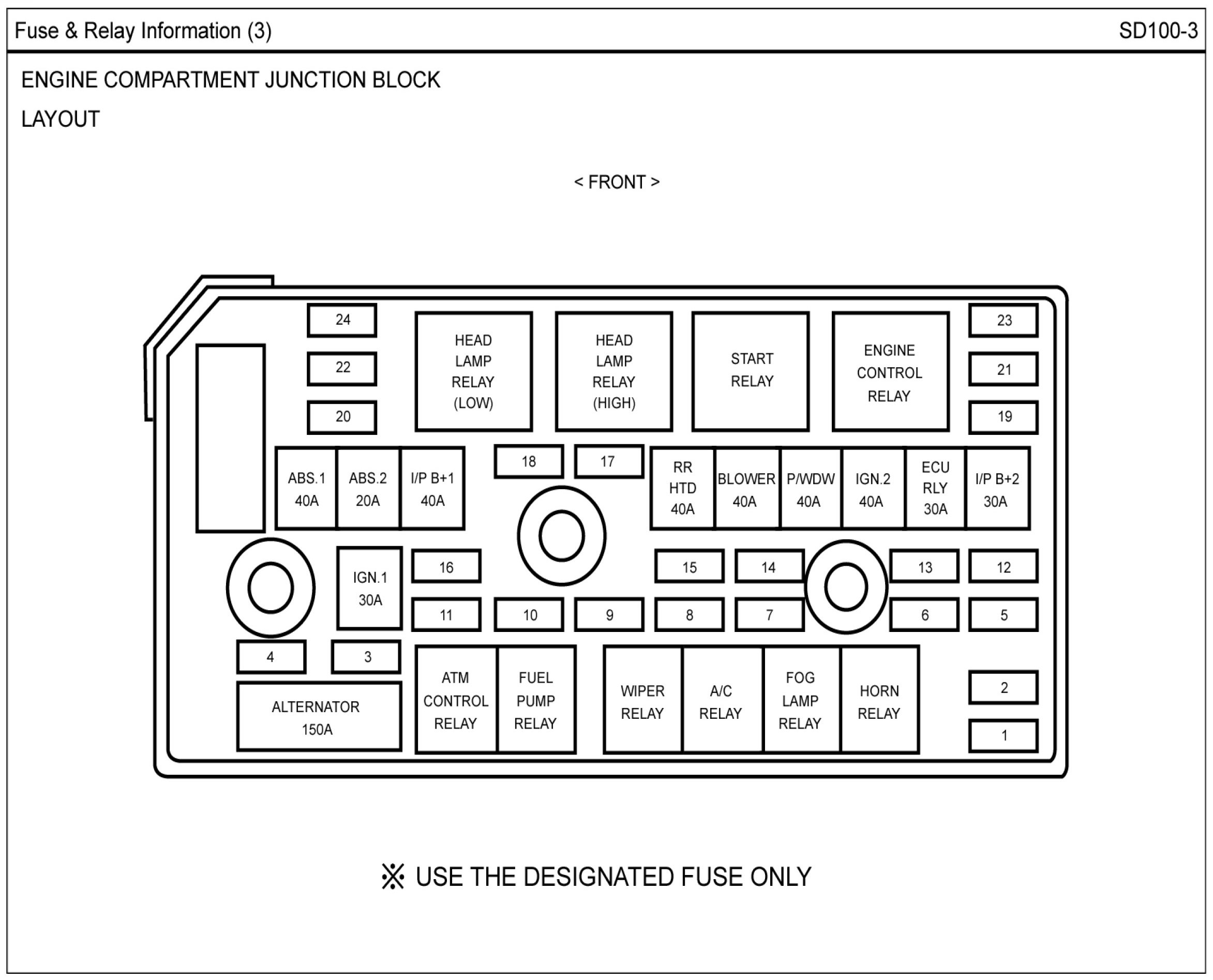

Engine Compartment Junction Block Layout View:

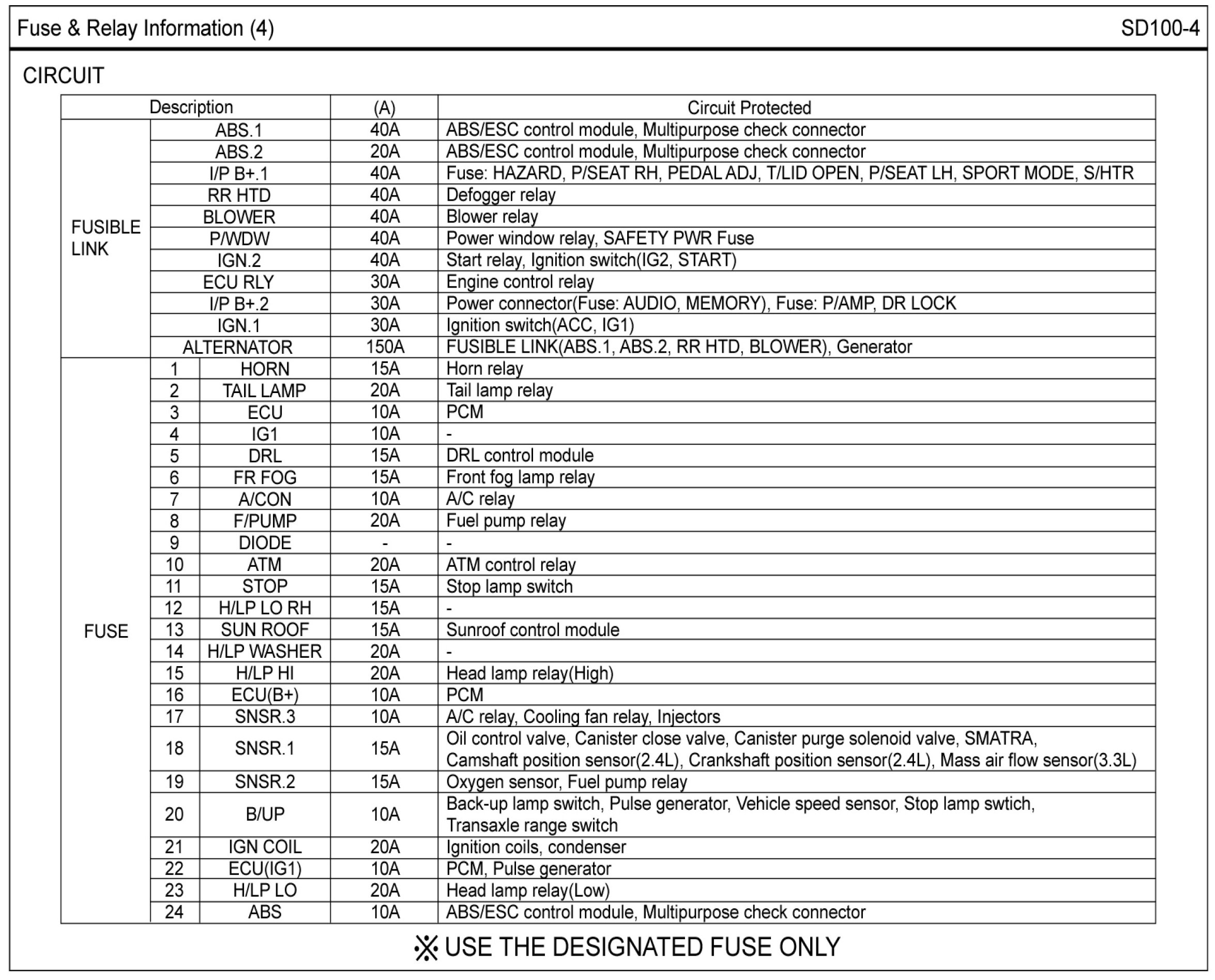

Engine Compartment Junction Block Circuit Details:

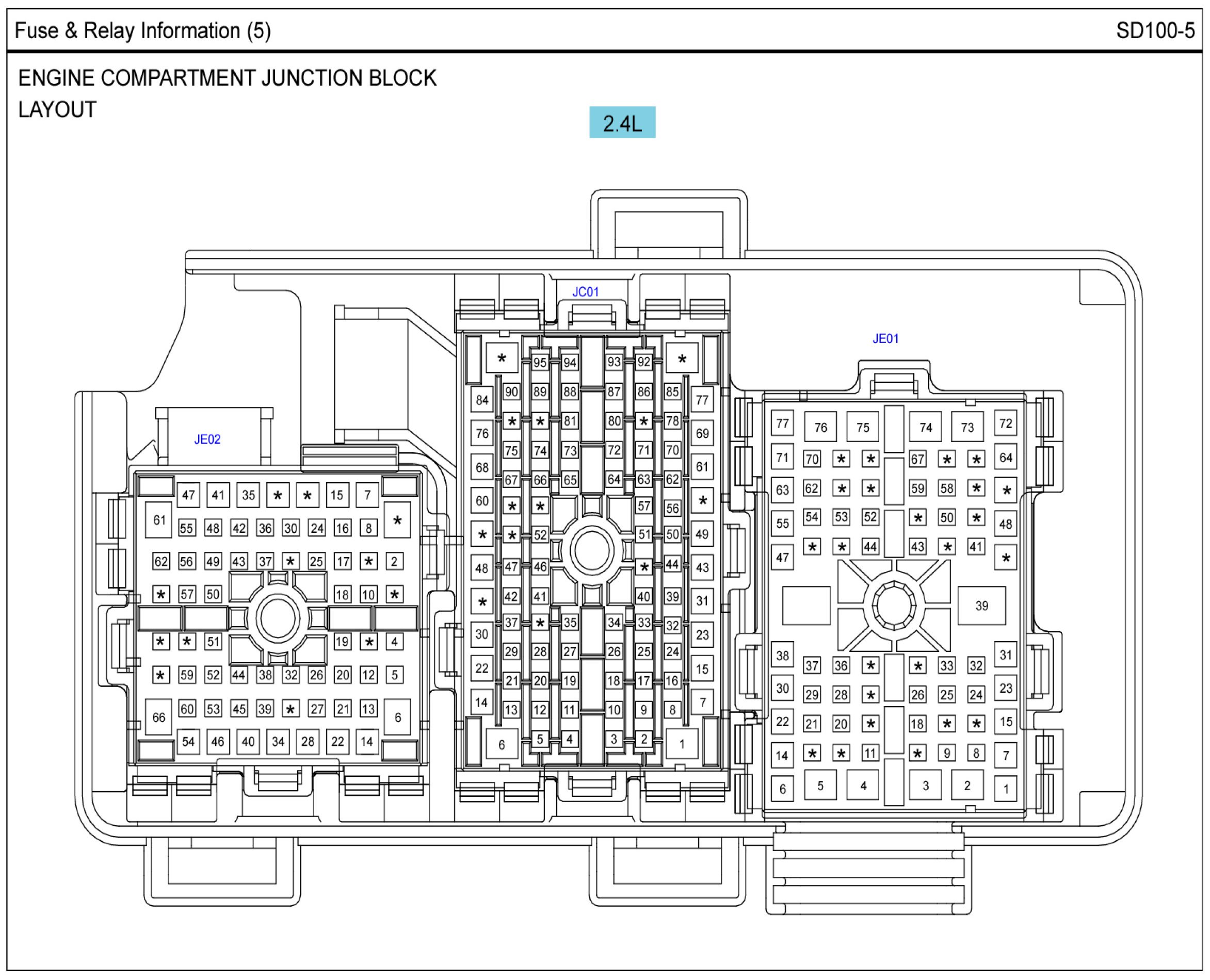

Engine Compartment Junction Block Layout View:

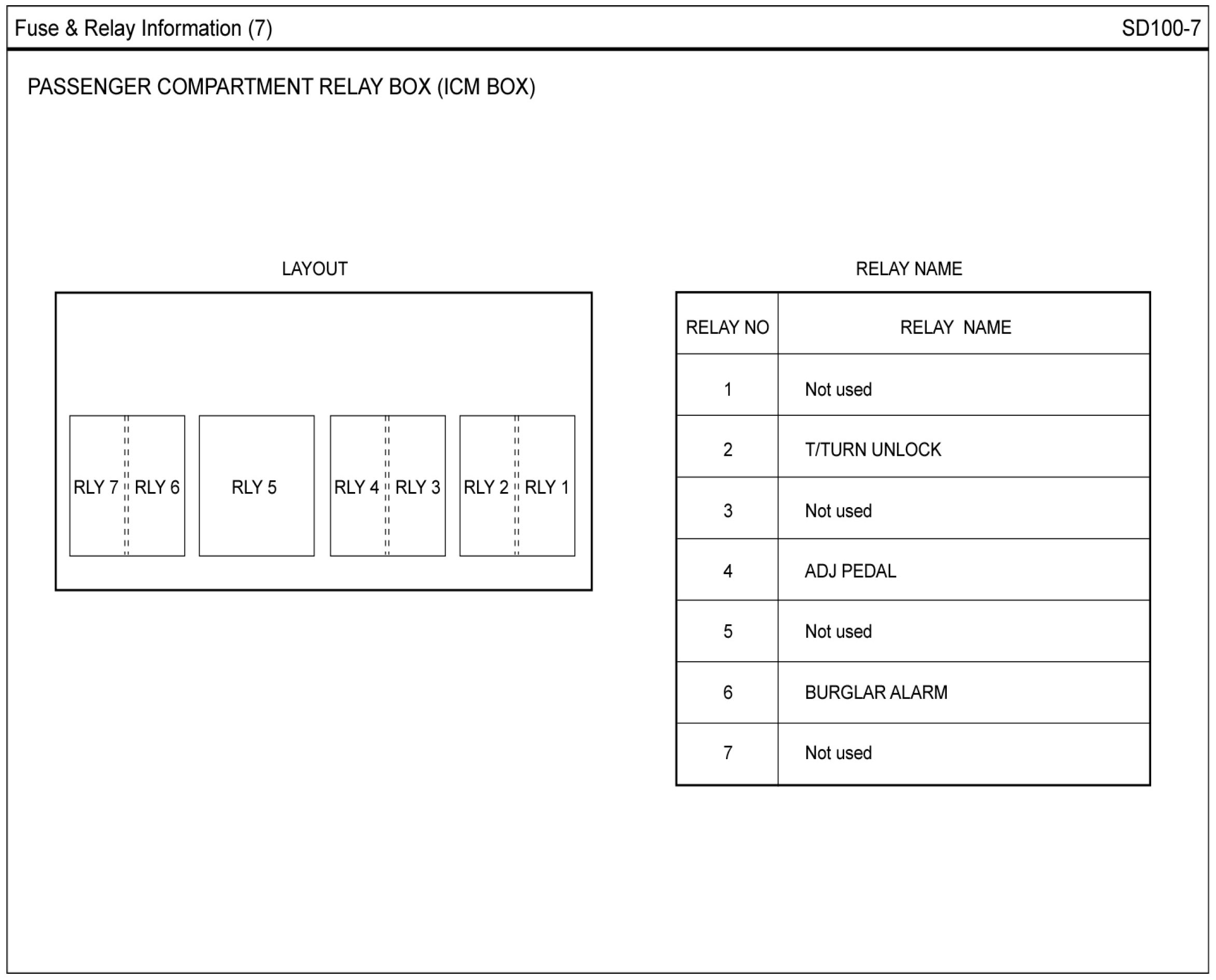

Passenger Compartment Relay Box (ICM Box):
