Cabin Temperature Sensor / Switch: Service and Repair

Replacement

1. Disconnect the negative (-) battery terminal.

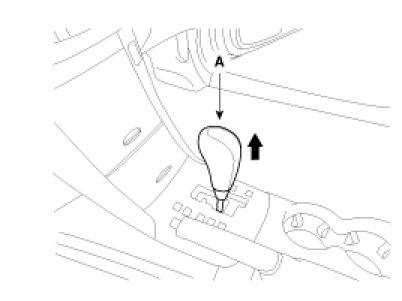

2. Remove the knob(A).

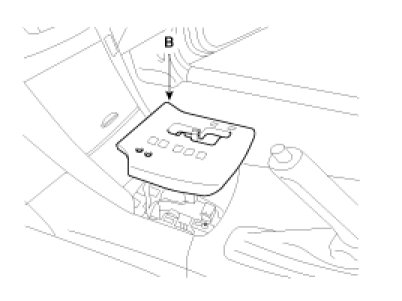

3. Remove the console upper cover(B).

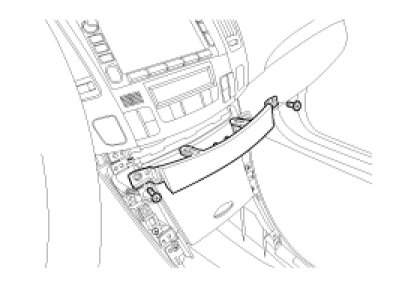

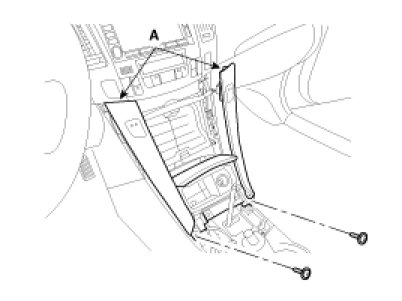

4. Loosen the mounting screw and then remove the side garnish(A).

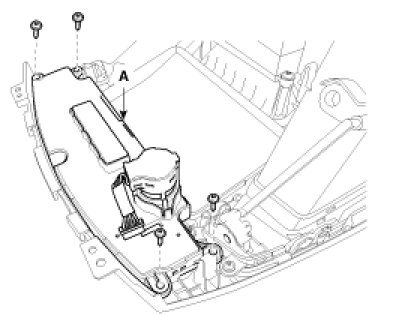

5. Loosen the mounting screw and then remove the center garnish(A).

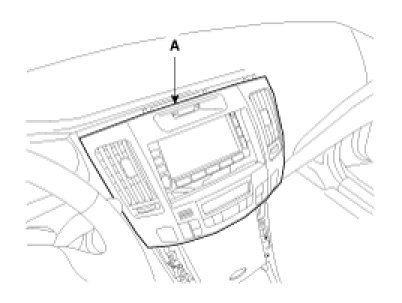

6. Remove the center facia panel(A).

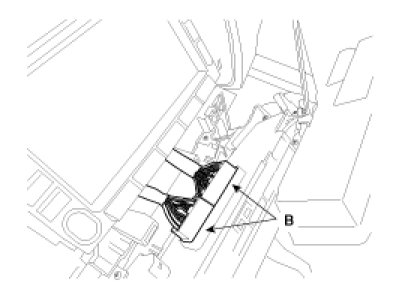

7. Disconnect the clock connector(A) and heater control unit connector(B).

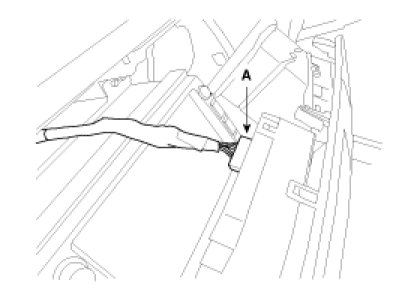

8. Disconnect the in-car sensor connector and then remove the in-car sensor(A).




9. Installation is the reverse order of removal.
