System Specifications

Specifications

Tightening Torques

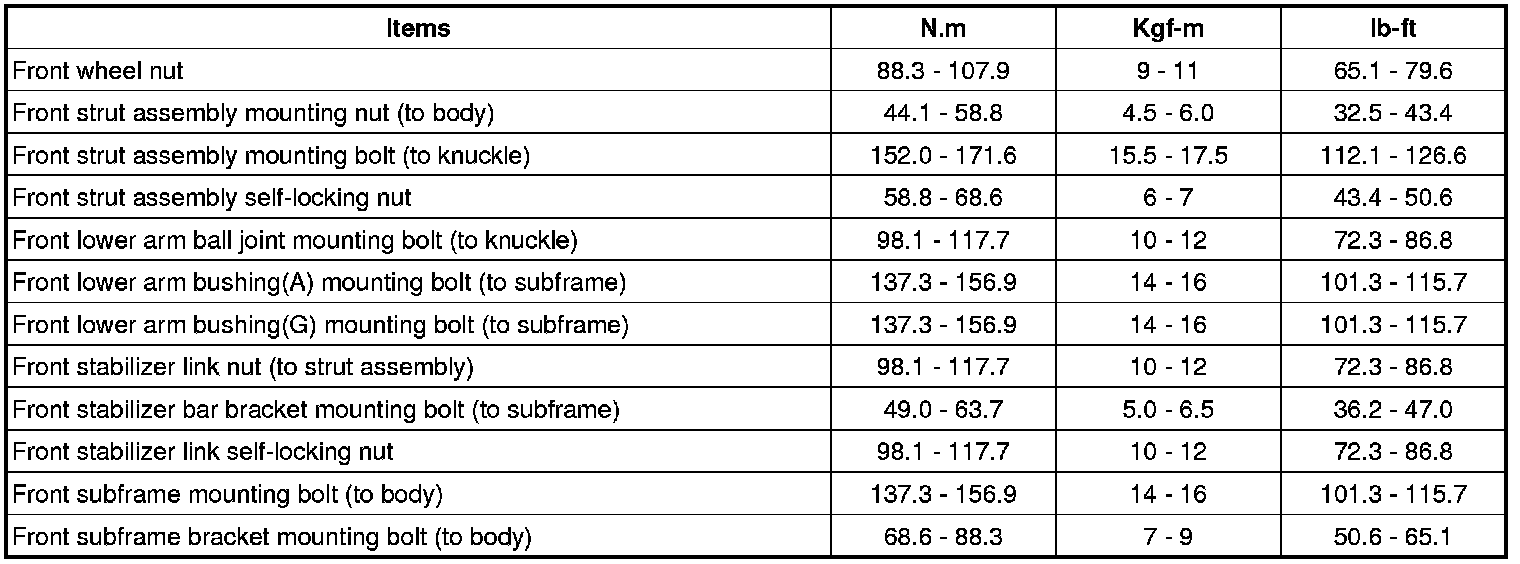

Front Suspension

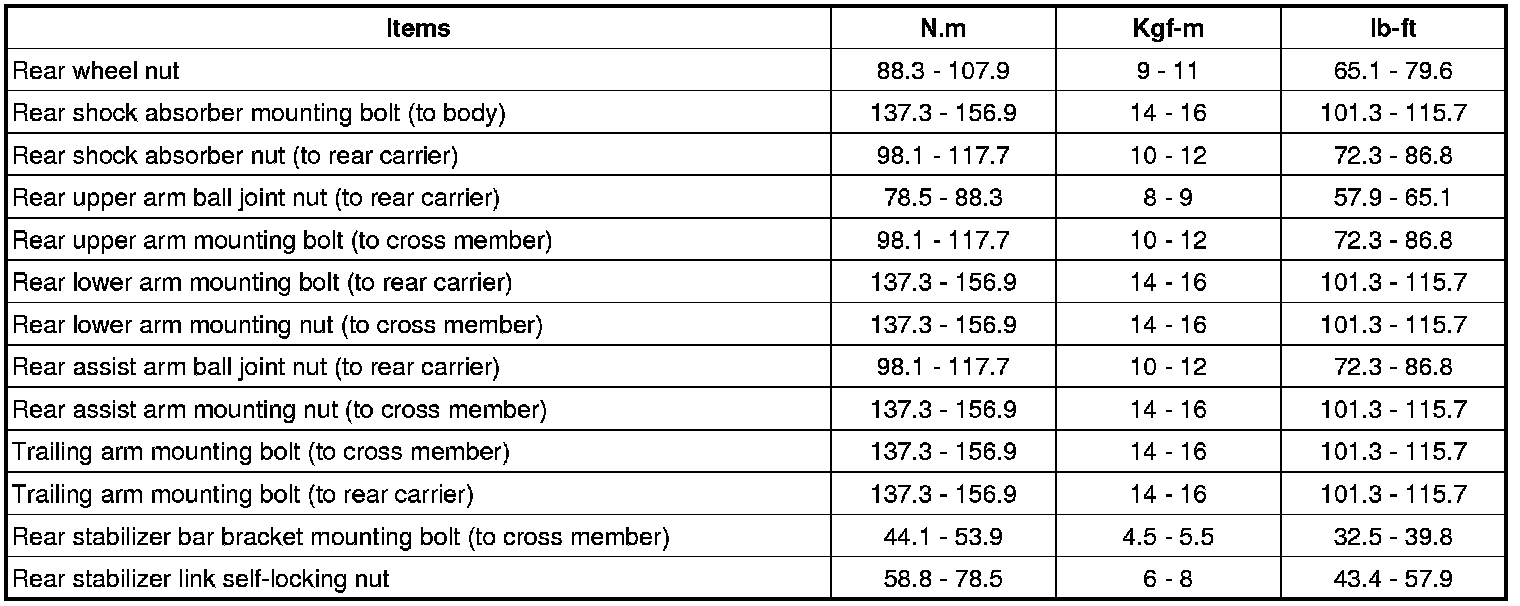

Rear Suspension

CAUTION:
Replace the self-locking nuts with new ones after removal.
