Oil Pump
Oil Pump
Oil Pump

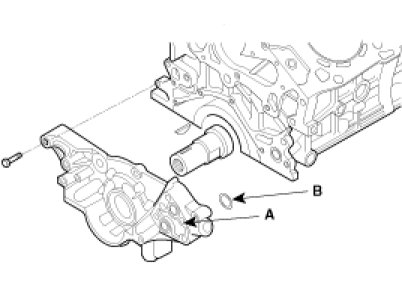

Install the oil pump case(A).
Tightening torque
18.6 - 23.5(1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
