Home >> Hyundai >> 2009 >> Genesis Sedan V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Relay Box >> Front Area Module(FAM)

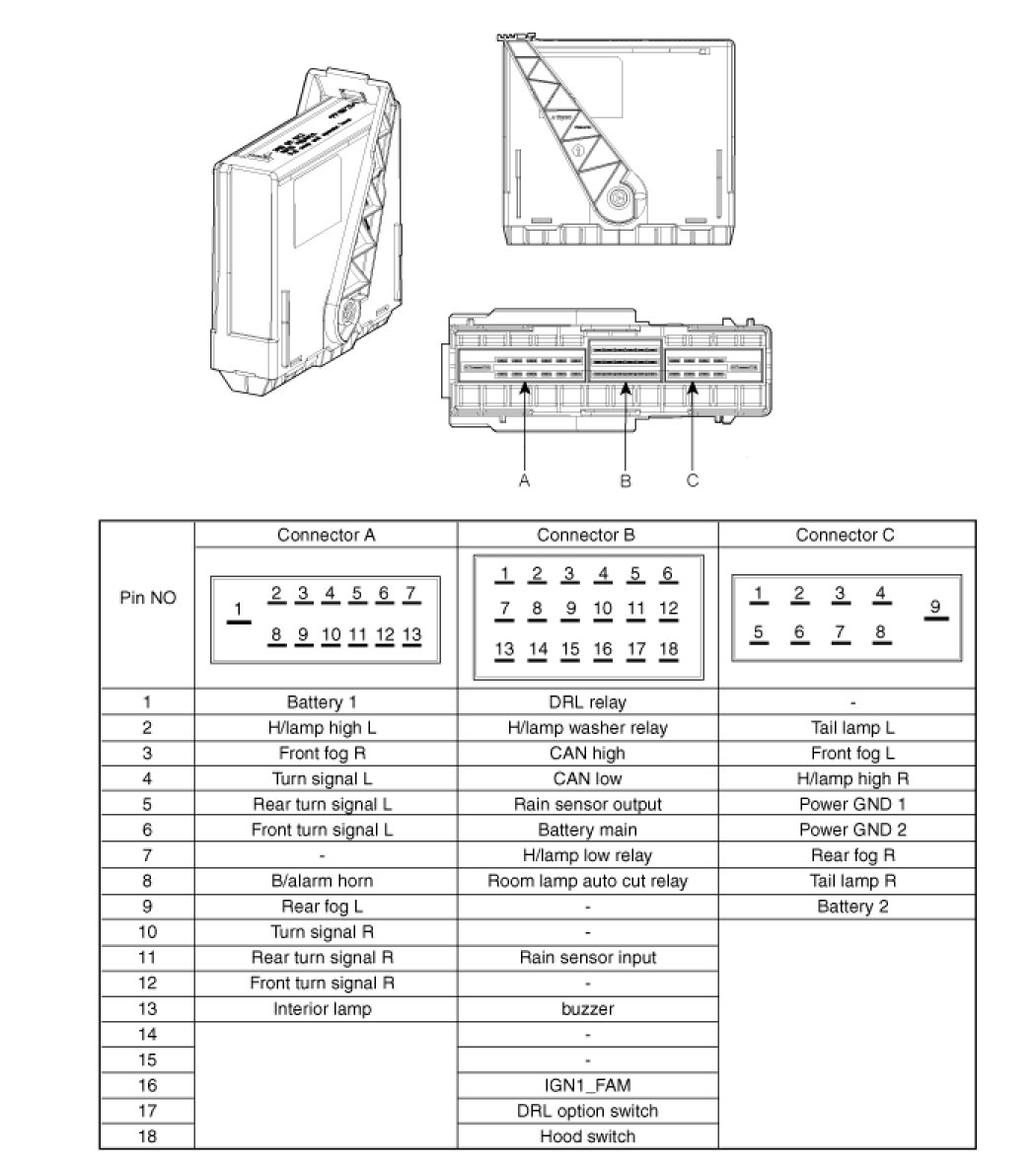

Front Area Module(FAM)





Components
