Home >> Hyundai >> 2009 >> Genesis Sedan V8-4.6L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Driver/Vehicle Information Display >> DIS Head Unit

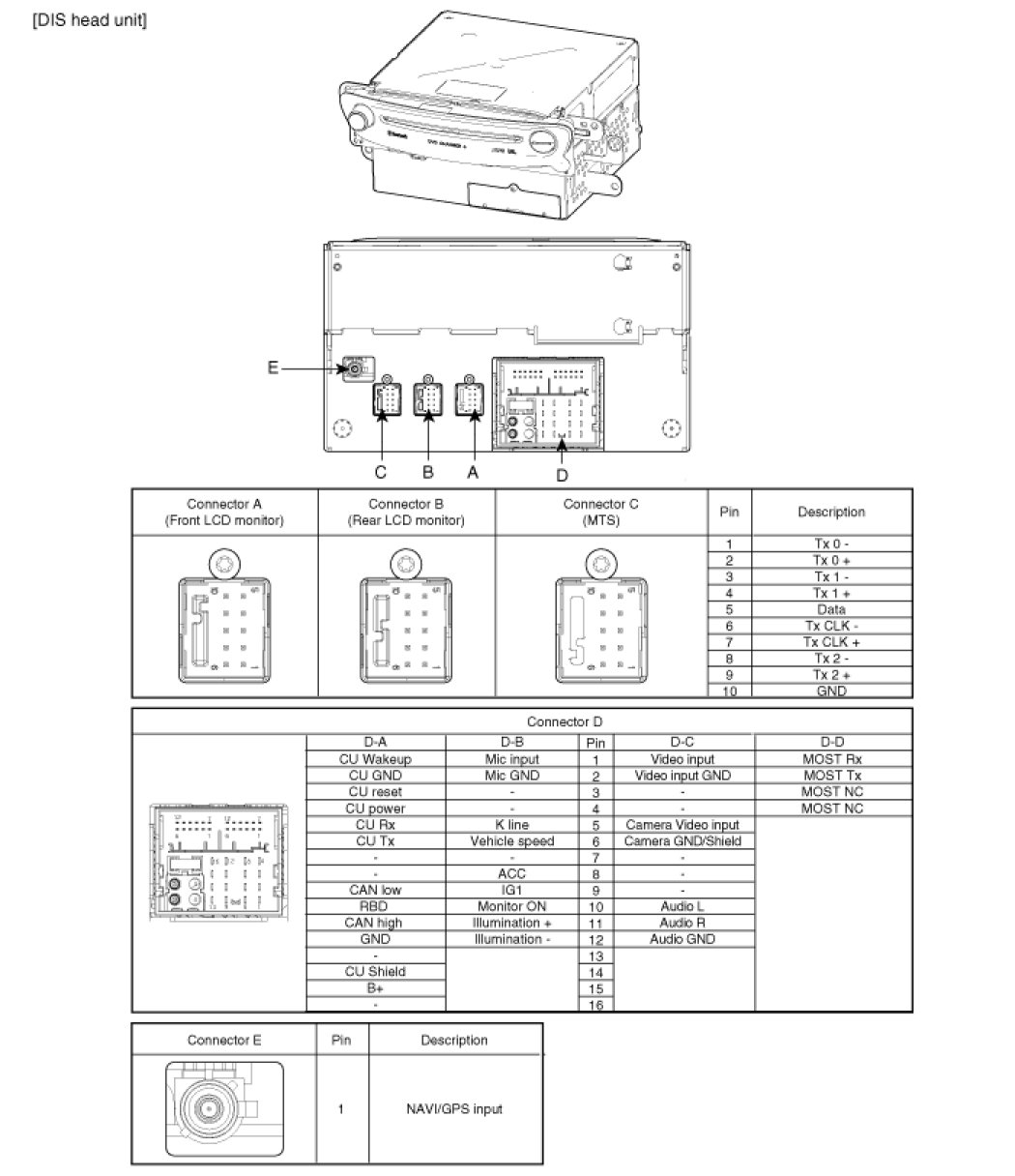

DIS Head Unit

Component Location
