Repair procedures

Removal

IPM (Instrument Panel Module)
1. Disconnect the negative (-) battery terminal.

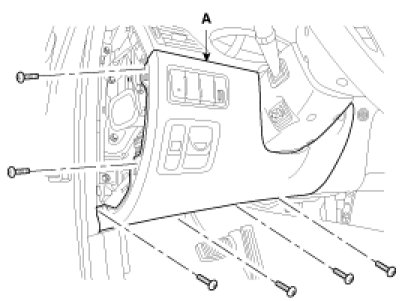

2. Remove the crash pad lower panel (A).




3. Remove the IPM (A) after removing the nut and connector.










Installation

1. Install the IPM after connecting the connector.
2. Install the crash pad lower panel.
