Circuit Diagram: Notes

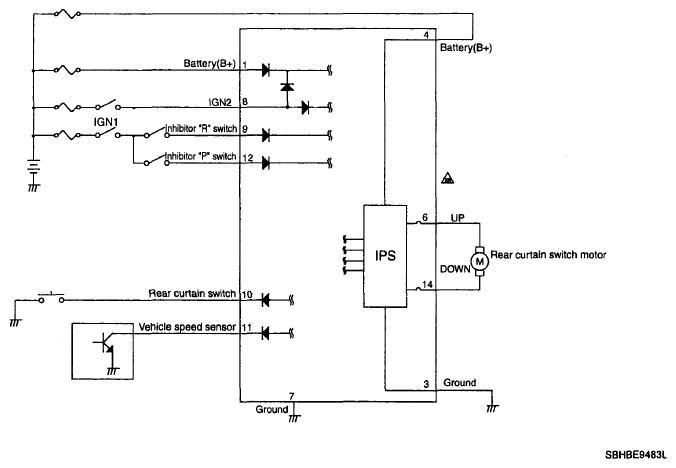

Fig 1: Identifying Rear Curtain System Circuit Diagram
G06104000Courtesy of HYUNDAI MOTOR CO.
