Home >> Hyundai >> 2009 >> Entourage V6-3.8L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Relay Box >> Relay Box (Passenger Compartment)

Relay Box (Passenger Compartment)





Components

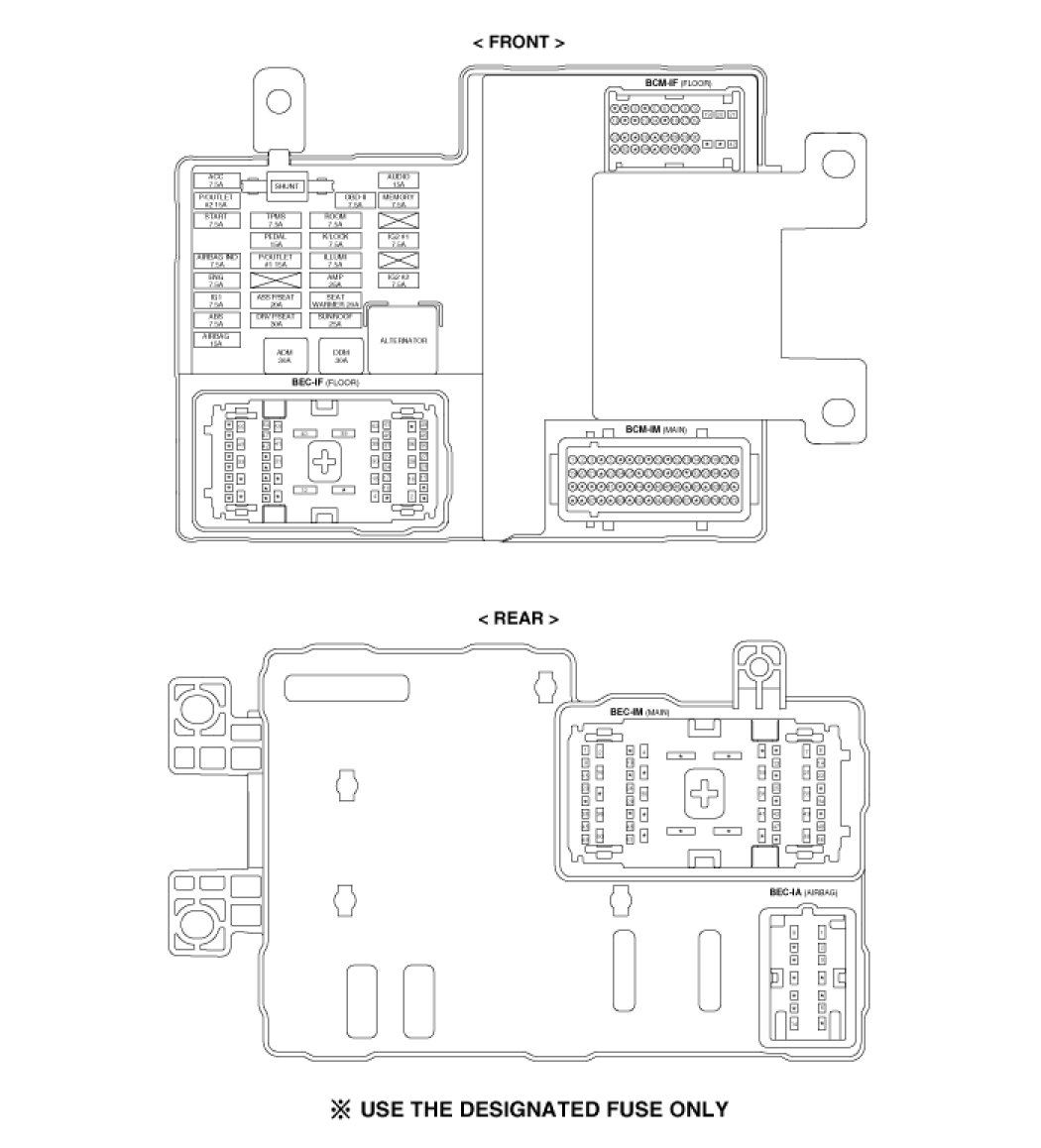

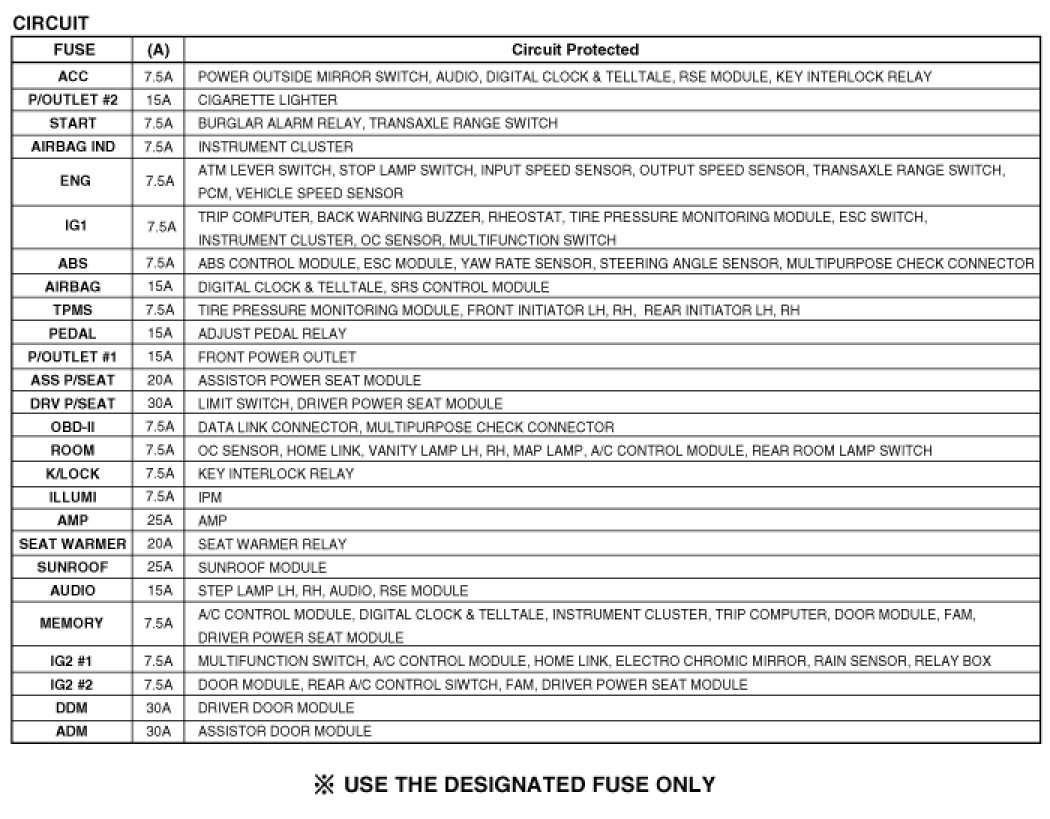

IPM (Instrument Panel Module)

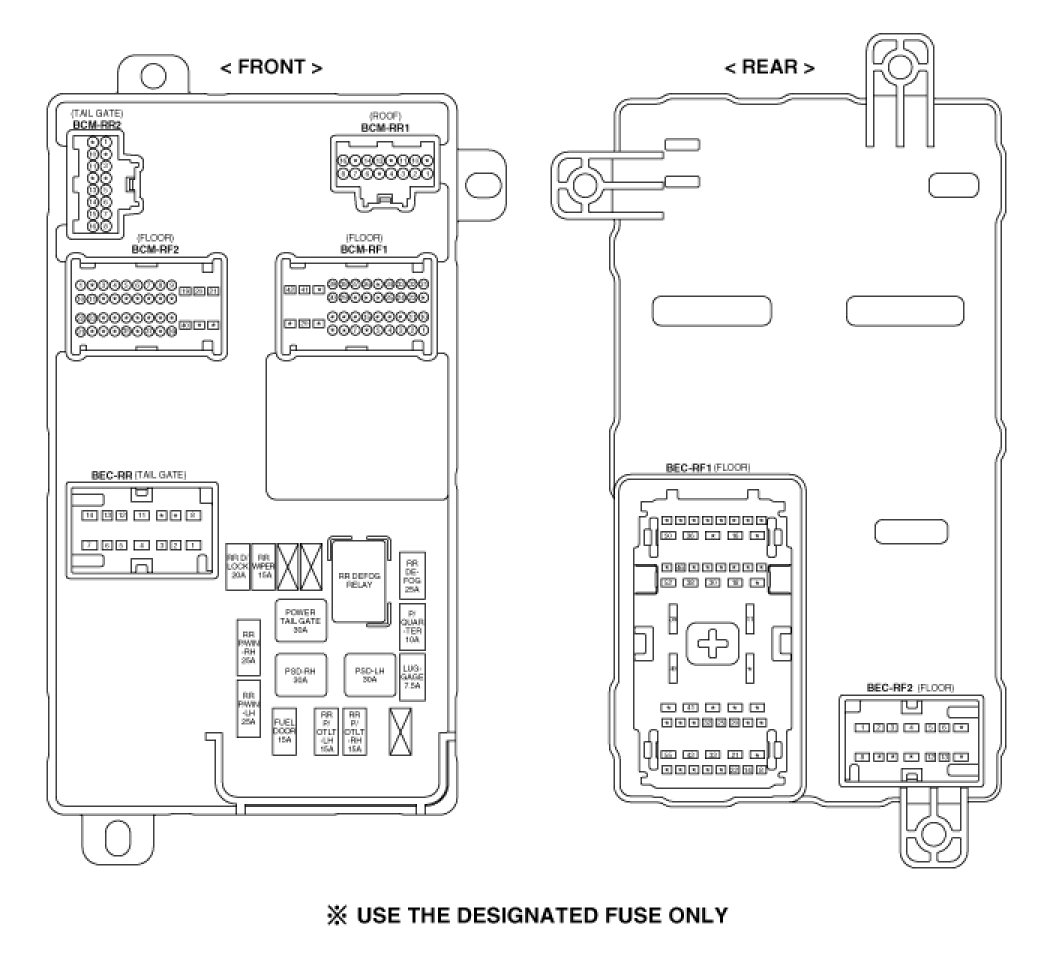

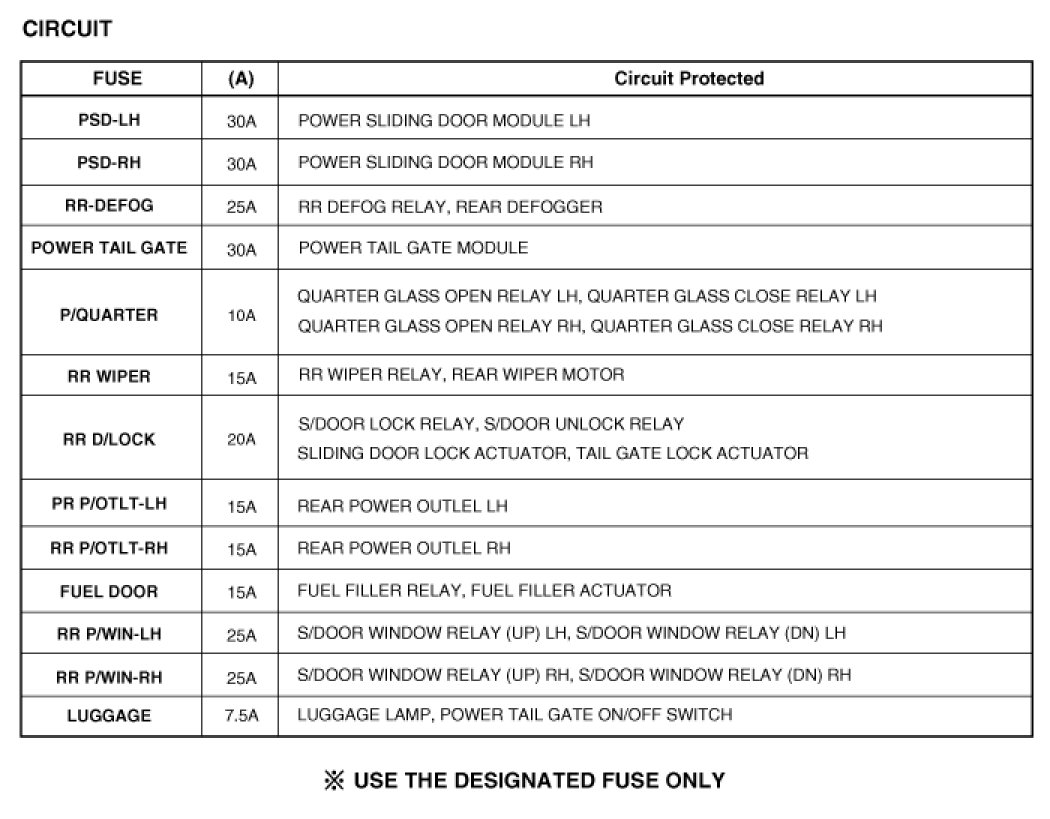

RAM (Rear Area Module)
