Camshaft Bearing Cap
Camshaft Bearing Cap

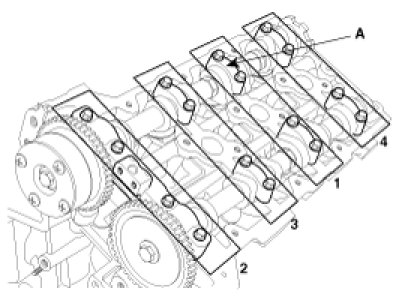

Install camshaft bearing caps.
Assemble camshaft bearing caps as the order below.
Tightening torque
5.9 Nm (0.6 kgf.m, 4.3 lb-ft) - 1st step
9.80 - 11.76 Nm (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft) - 2nd step
Camshaft Bearing Cap
Install camshaft bearing caps.
Assemble camshaft bearing caps as the order below.
Tightening torque
5.9 Nm (0.6 kgf.m, 4.3 lb-ft) - 1st step
9.80 - 11.76 Nm (1.0 - 1.2 kgf.m, 7.23 - 8.68 lb-ft) - 2nd step
