Home >> Hyundai >> 2009 >> Elantra L4-2.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Power Window Switch

Power Window Switch





Components

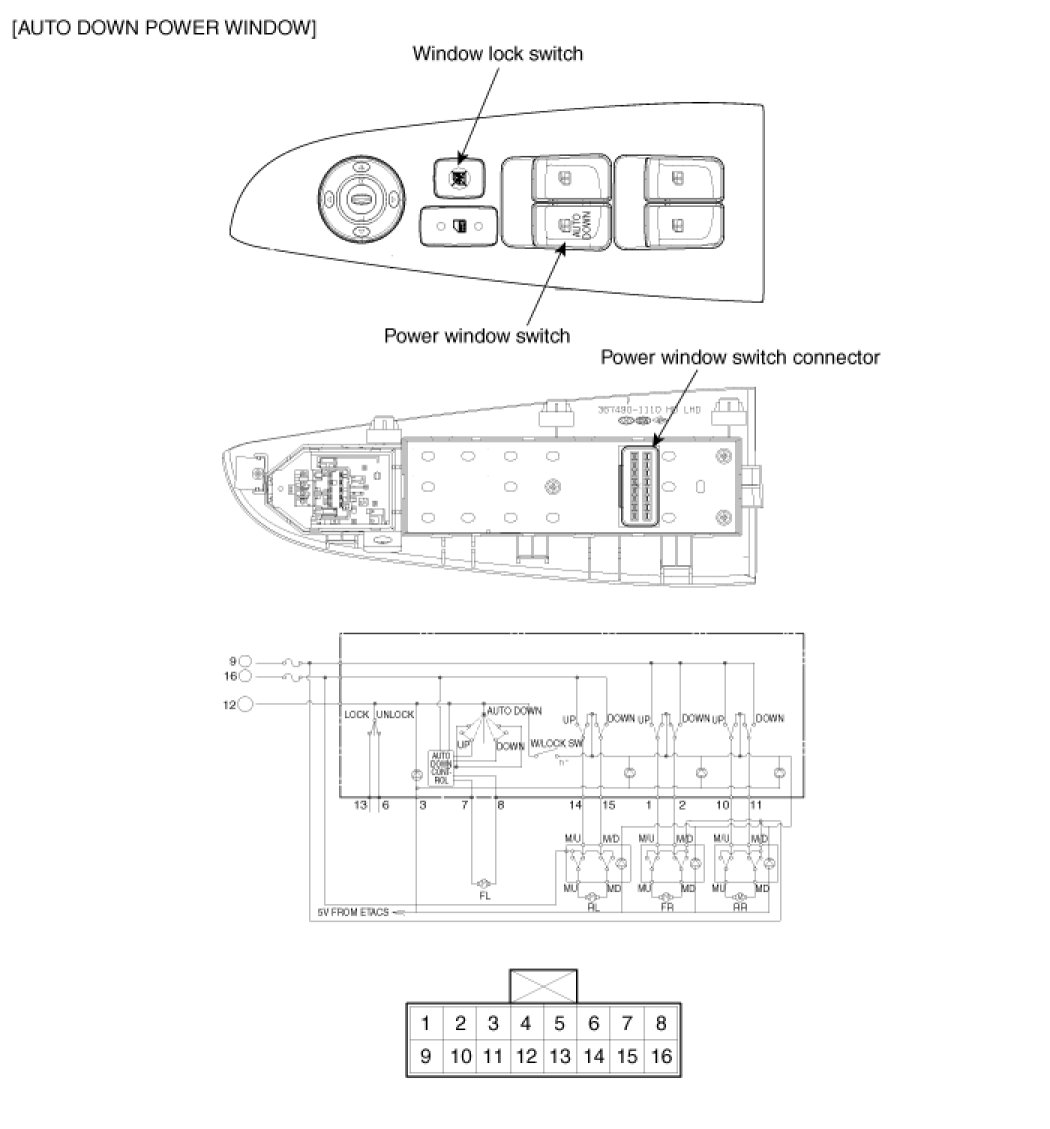

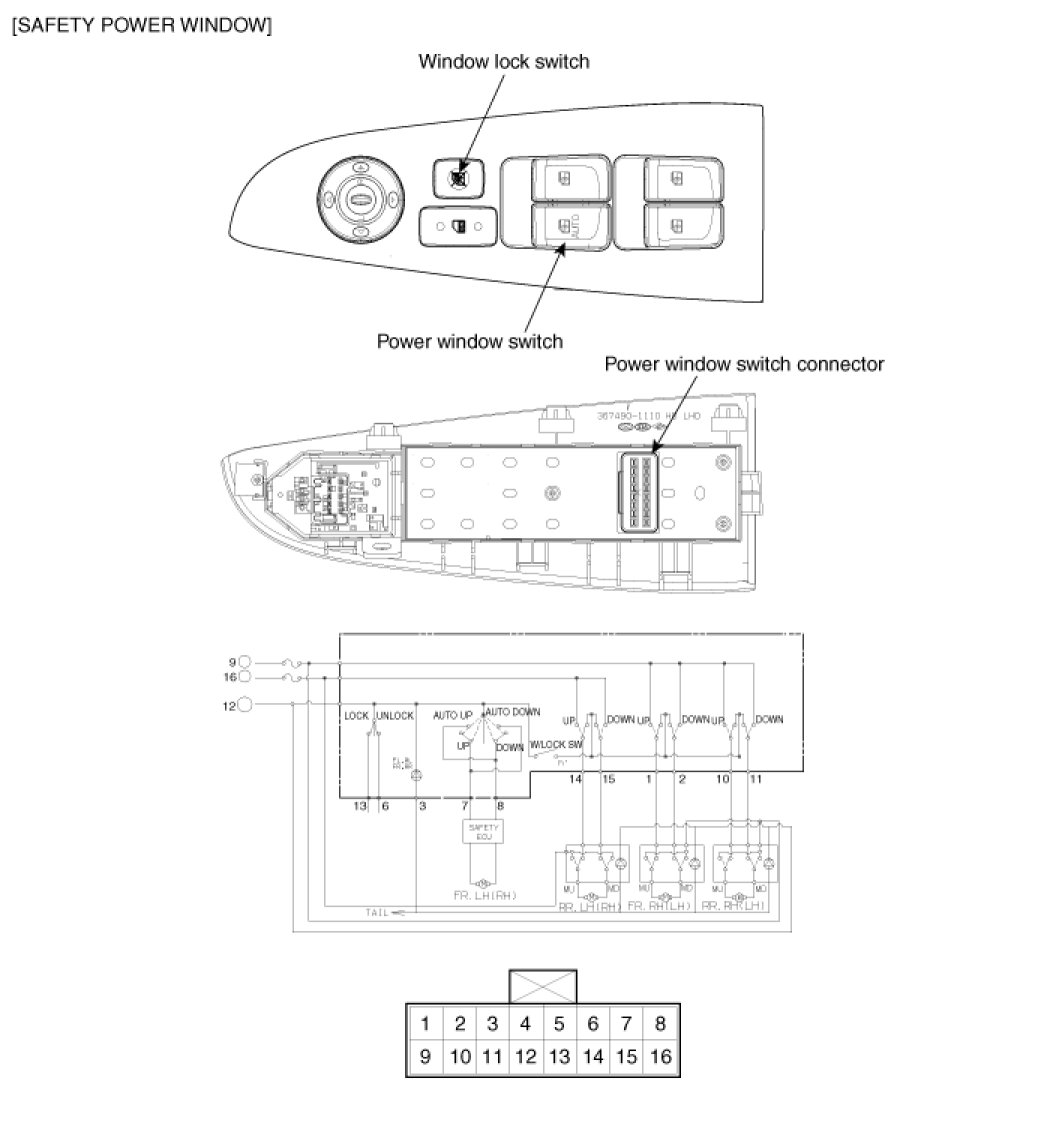

Power Window Main Switch

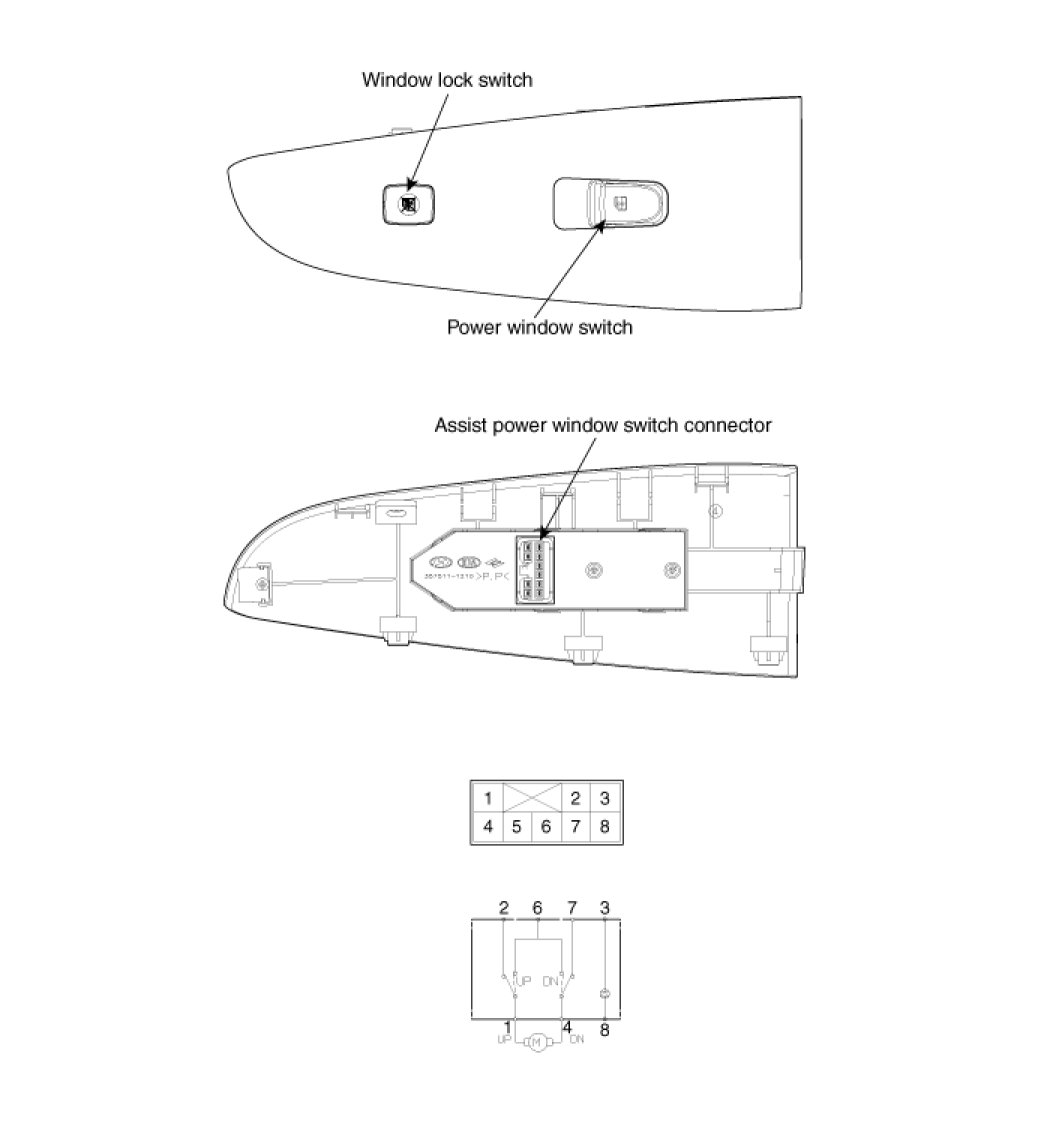

Assist Power Window Switch

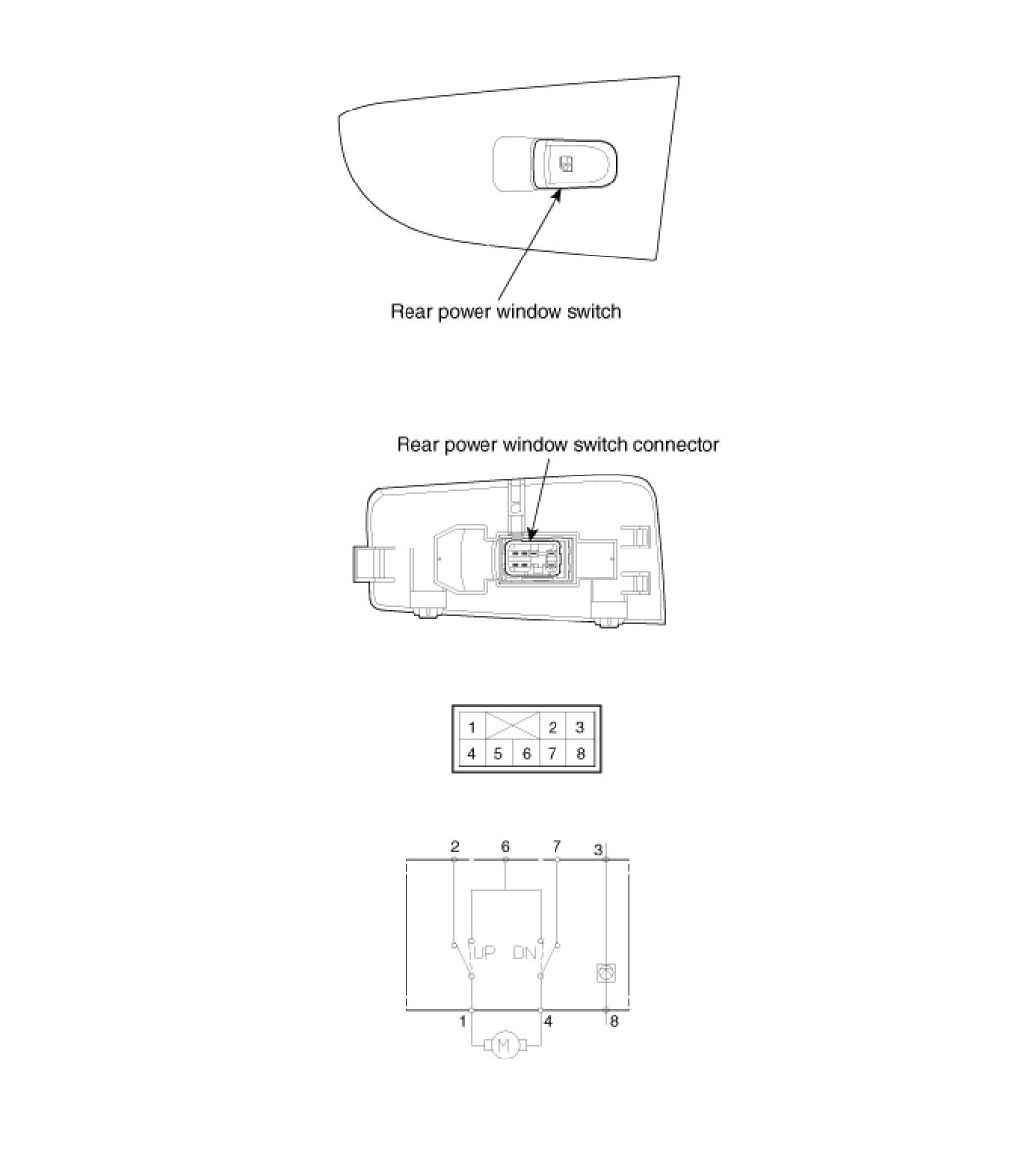

Rear Power Window Switch
