Repair Procedures

Replacement

1. Disconnect the negative (-) battery terminal

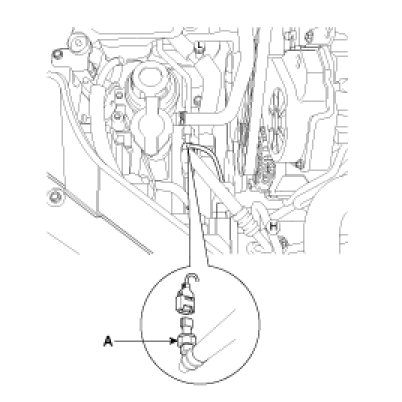

2. Disconnect A/C pressure transducer connector (3P) from wiring harness.





NOTE:
Take care that liquid suction pipe is not bent.

3. Installation is the reverse order of removal.
