Home >> Hyundai >> 2009 >> Azera V6-3.8L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Suspension Strut / Shock Absorber >> Front Strut Assembly

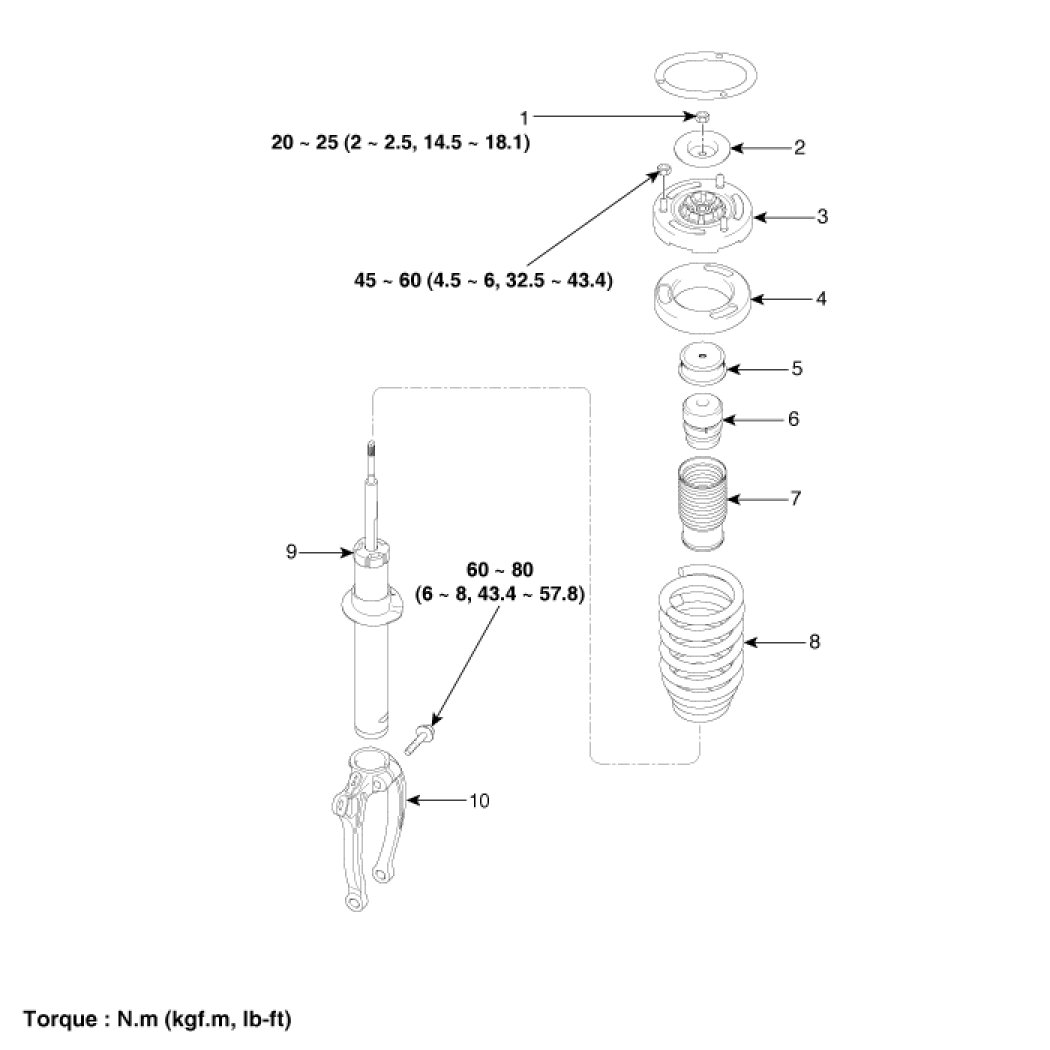

Front Strut Assembly





Components
