Rear Curtain Unit

Replacement

1. Disconnect the negative (-) battery terminal.
2. Remove the center facia panel. ( Refer to the Body group - Crash pad)

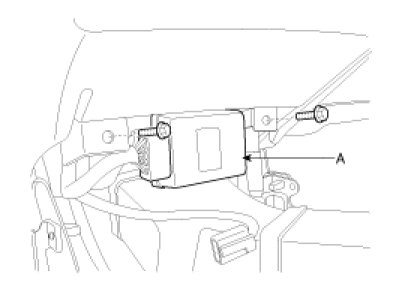

3. Remove the rear curtain unit (A) after removing mounting 2 nuts and a connector.




4. Installation is the reverse of removal.
