Front Door

Power Window Motor Replacement

1. Remove the door trim.

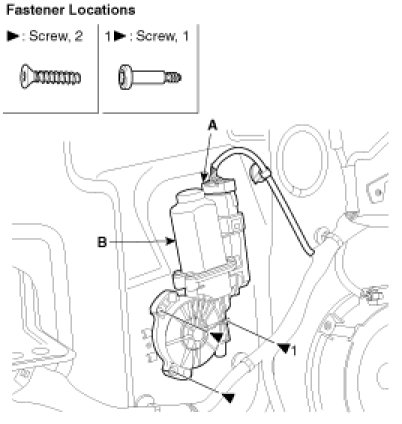

2. After disconnecting the connector (A), remove the power window motor (B).




3. Installation is the reverse of removal.

NOTE:
- Roll the glass up down to see if it move freely without binding.
