Fuse: Locations

Fuse & Relay Information

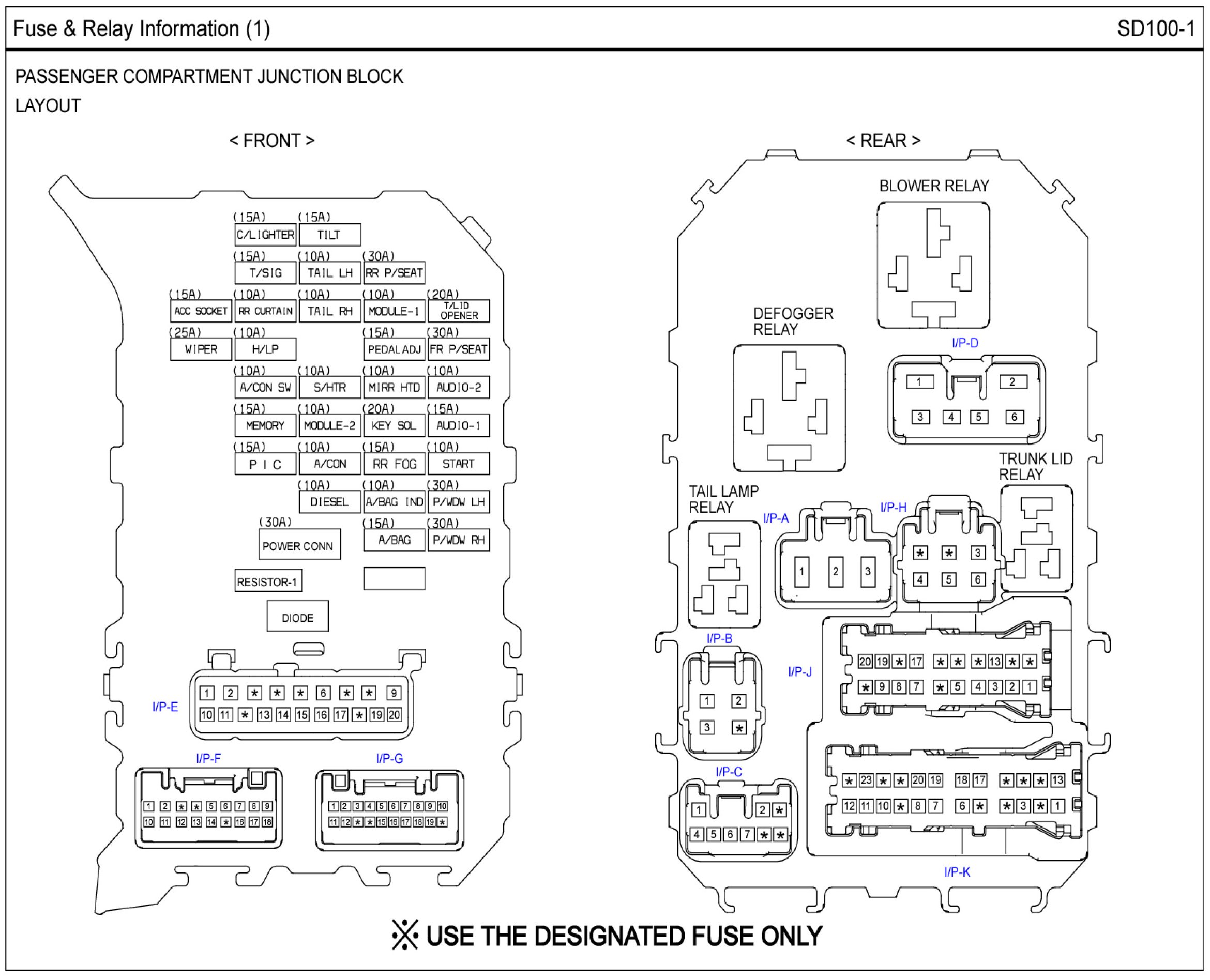

Passenger Compartment Junction Block Layout View:

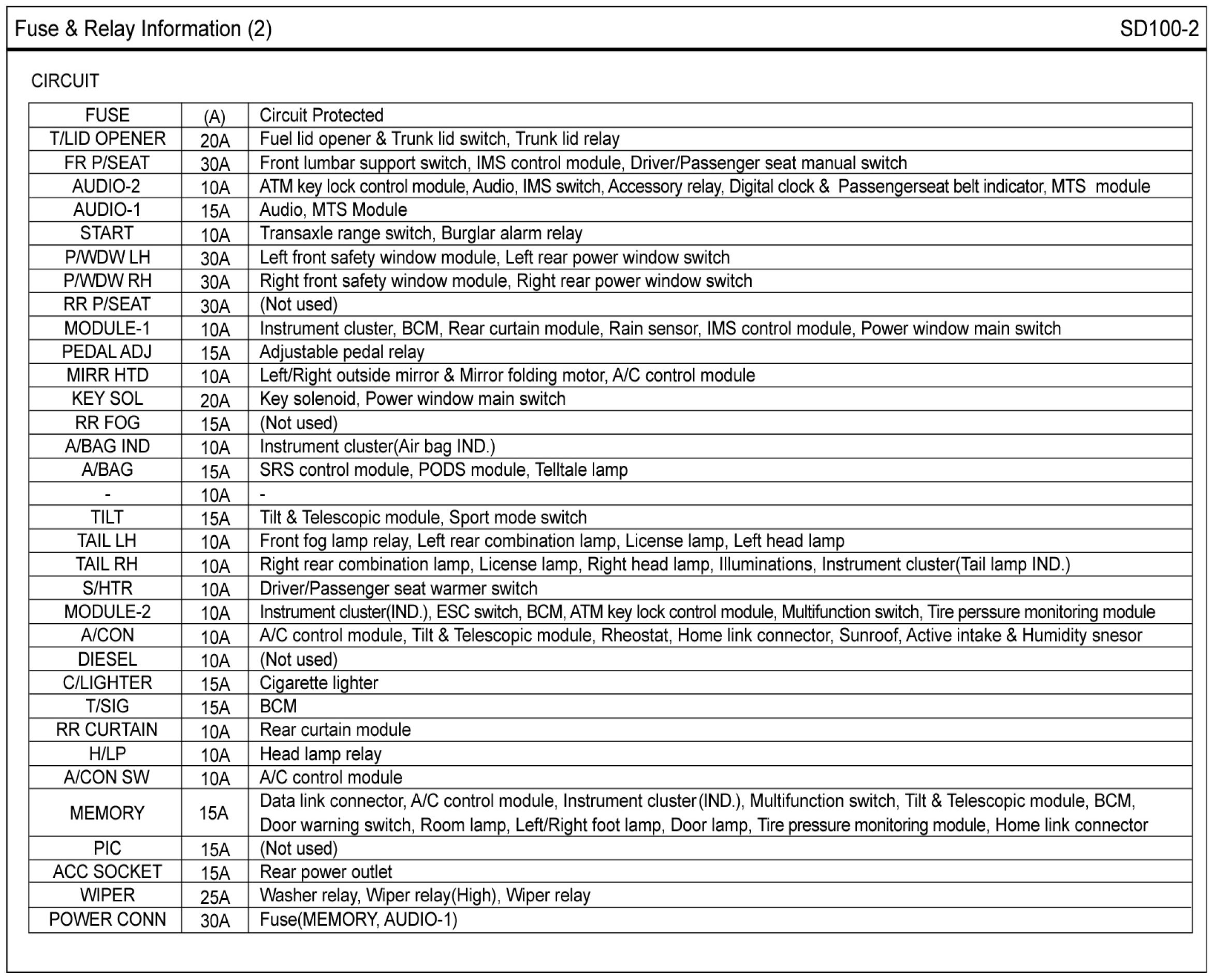

Passenger Compartment Junction Block Layout Circuit Details:

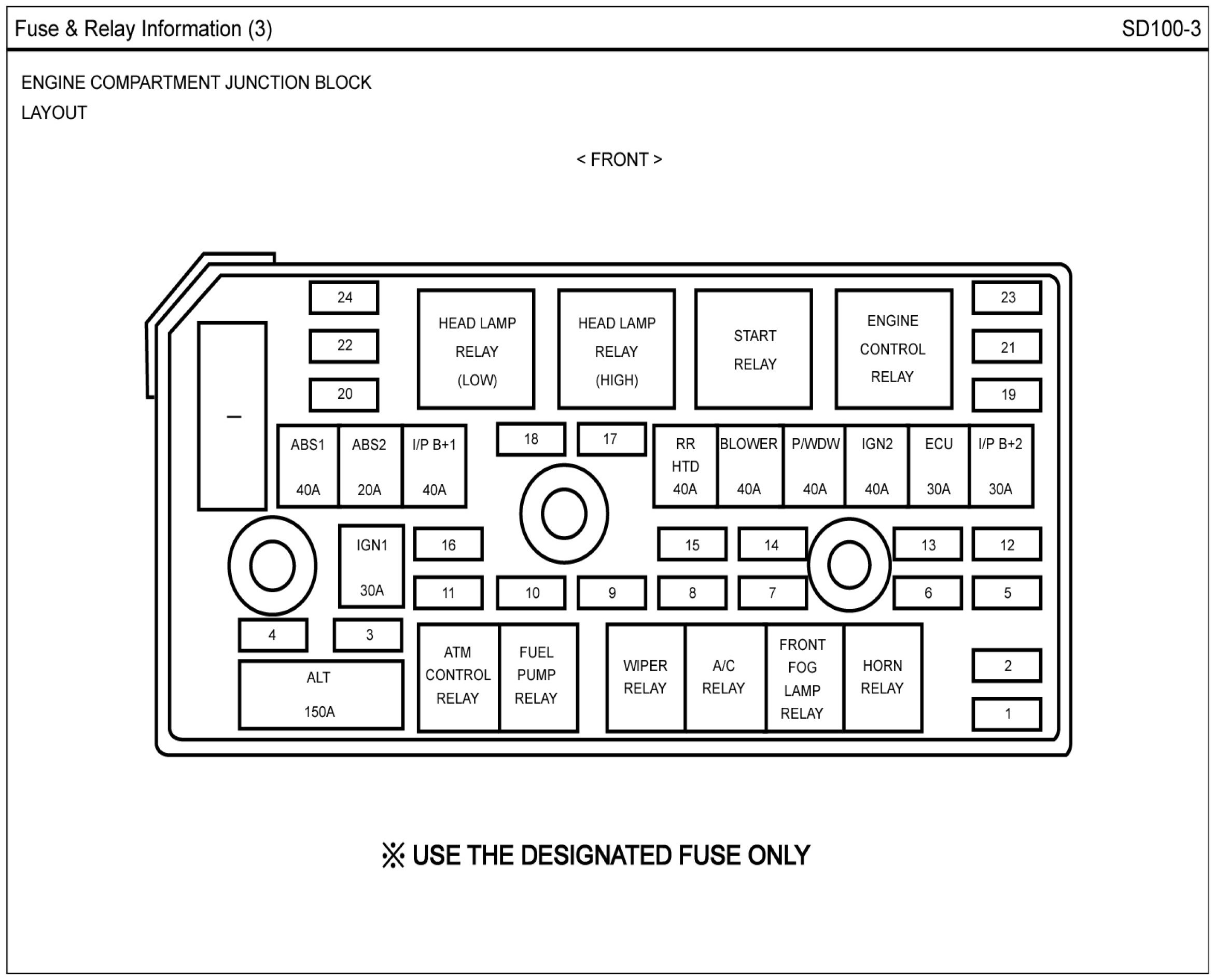

Engine Compartment Junction Block Layout View:

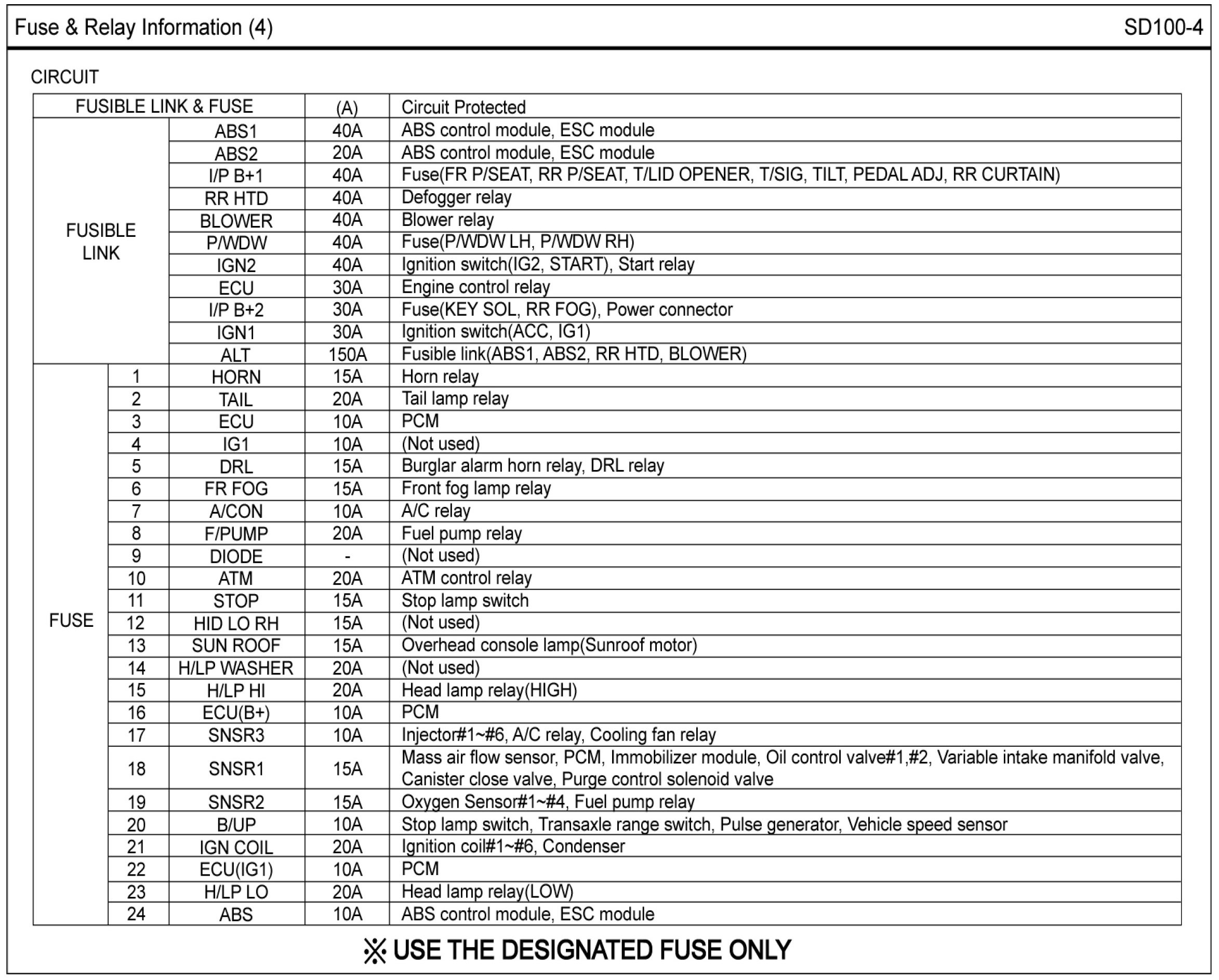

Engine Compartment Junction Block Layout Circuit Details:

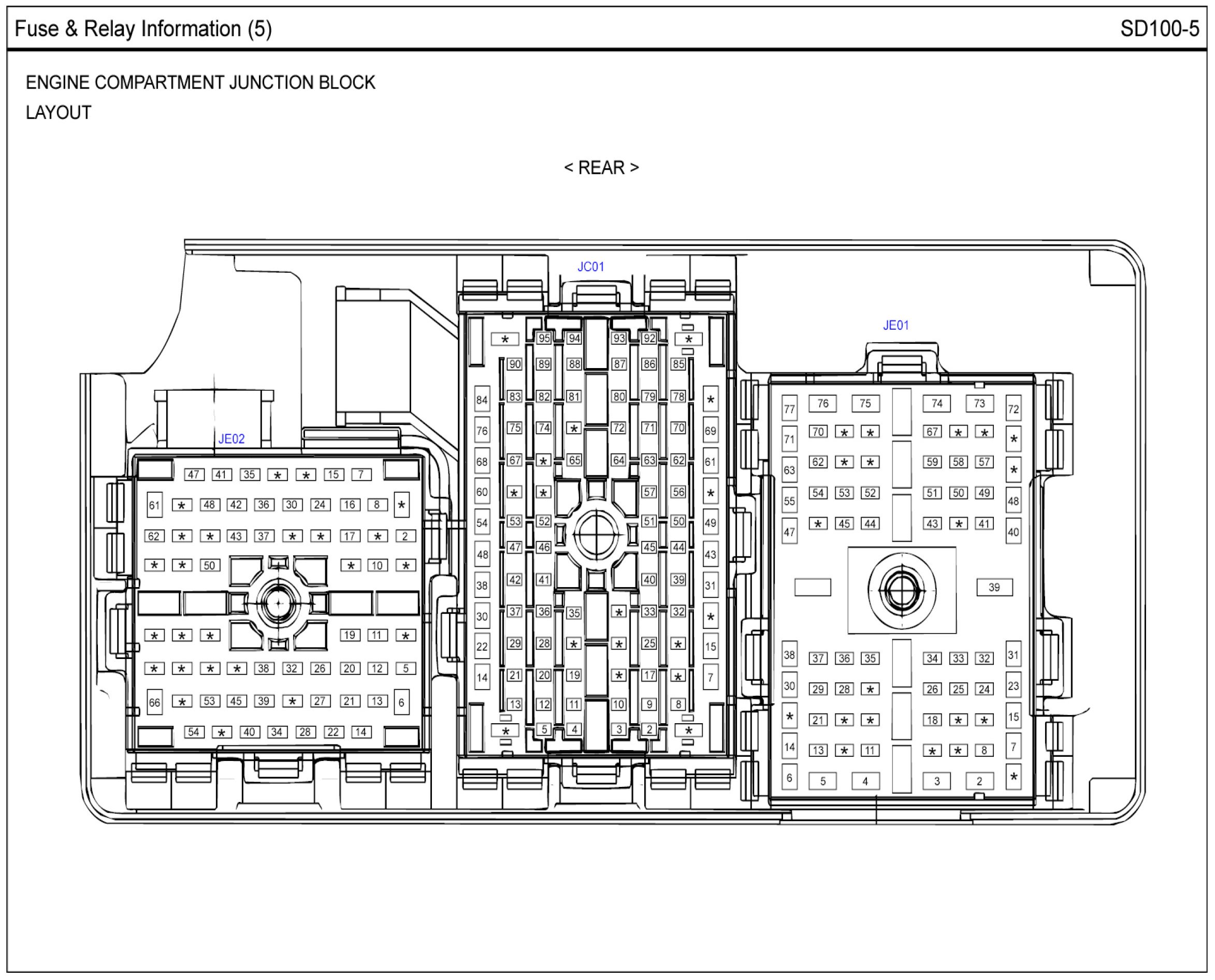

Engine Compartment Junction Block Layout View:

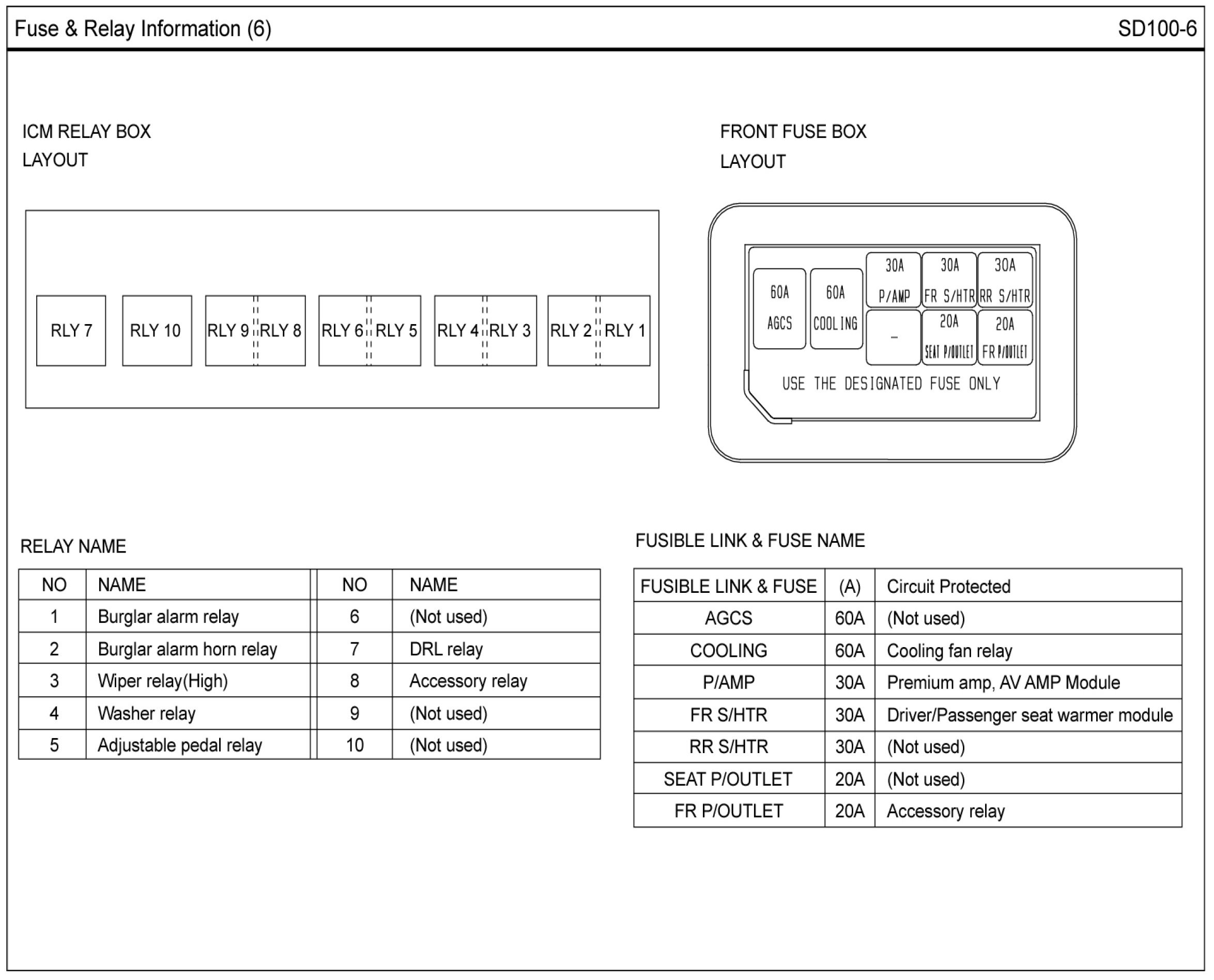

ICM Relay Box Layout / Front Fuse Box Layout:
