Coolant Temperature Sensor / Switch HVAC: Testing and Inspection

Inspection

1. Ignition "ON"

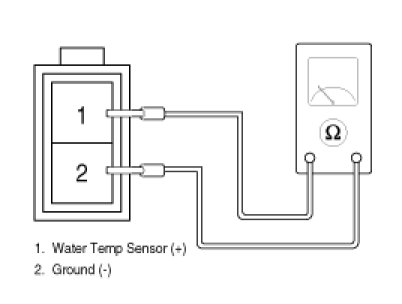

2. Using the multi-tester, Measure resistance between terminal "1" and "2" of water temperature sensor.

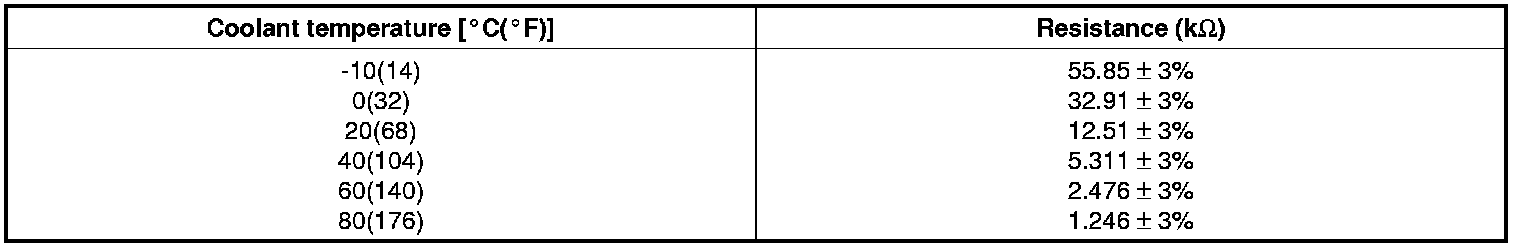

Specification










NOTE:
Negative type thermistor that resistance will rise with lower temperature, and reduce with higher temperature.
