Repair Procedures
Replacement
1. Disconnect the negative (-) battery terminal.
2. Remove the center facia panel. .

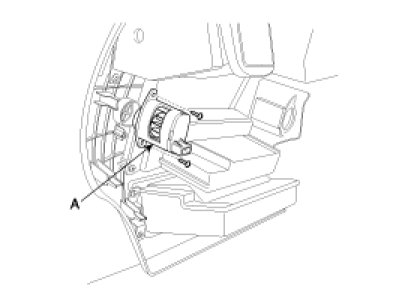

3. Loosen the mounting 2 screws and then remove the in-car sensor (A).
4. Installation is the reverse order of removal.
Replacement
1. Disconnect the negative (-) battery terminal.
2. Remove the center facia panel. .
3. Loosen the mounting 2 screws and then remove the in-car sensor (A).
4. Installation is the reverse order of removal.
