Front

Front Brake Pad Check

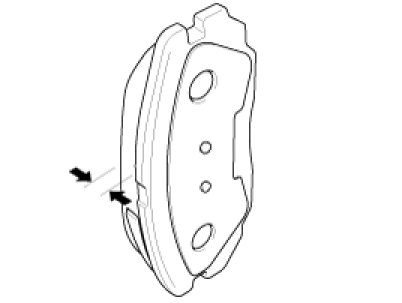

1. Check the pad wear. Measure the pad thickness and replace it, if it is less than the specified value.

Pad thickness
Standard value : 11 mm (0.43 in)
Service limit : 2 mm (0.0787 in)





2. Check that grease is applied, to sliding contact points and the pad and backing metal for damage.
