Home >> Hyundai >> 2009 >> Accent L4-1.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> Automatic Transaxle

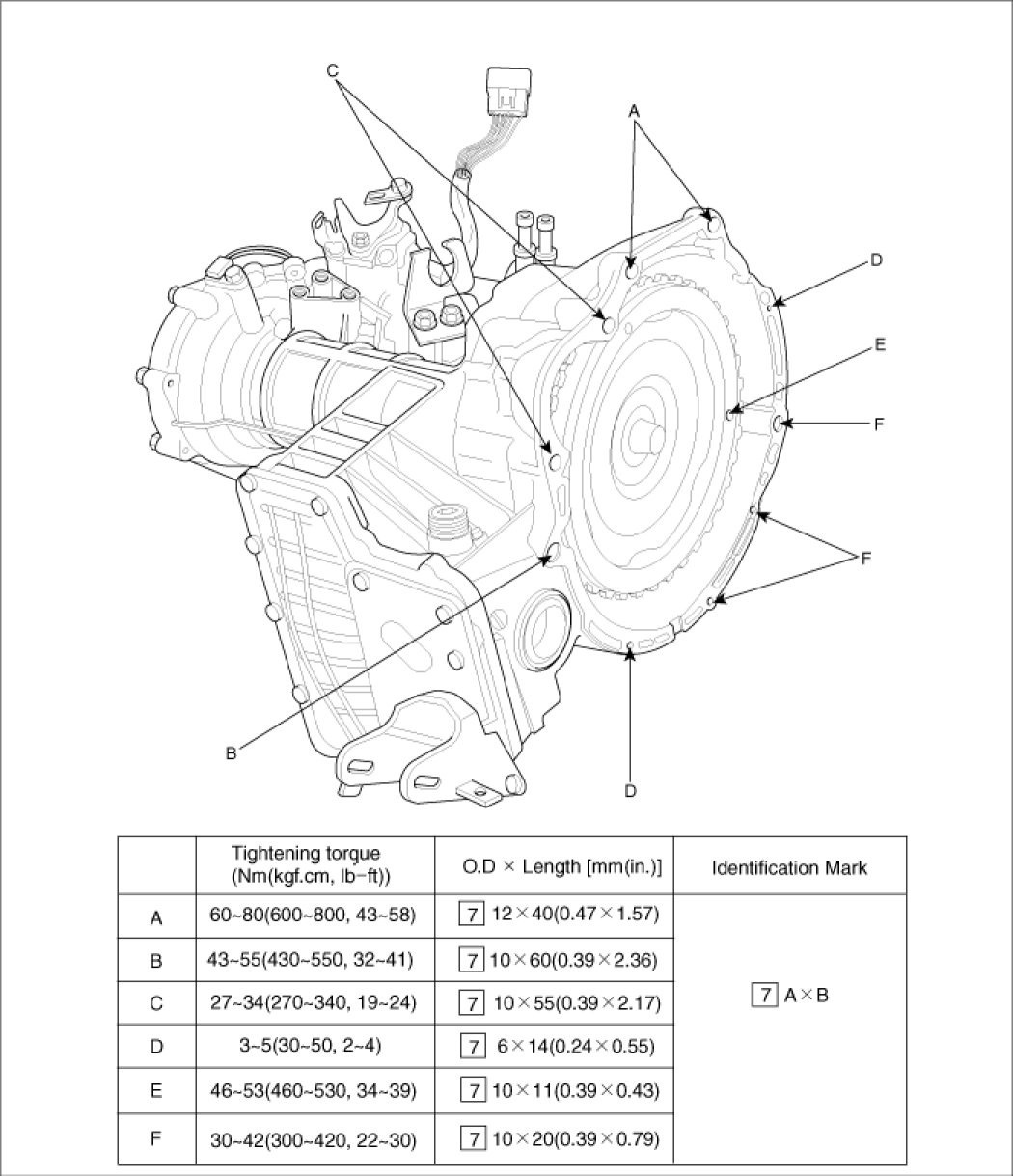

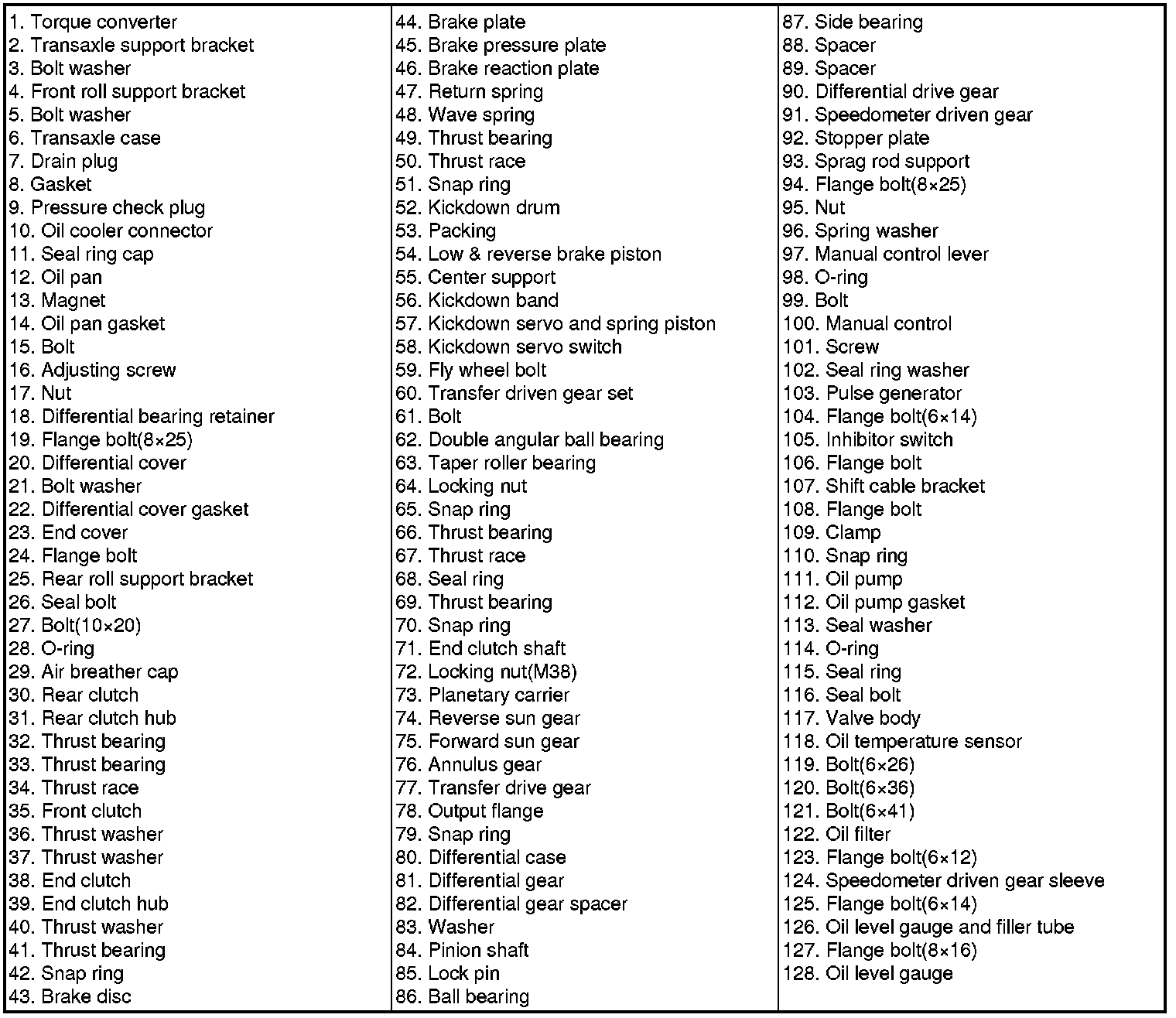

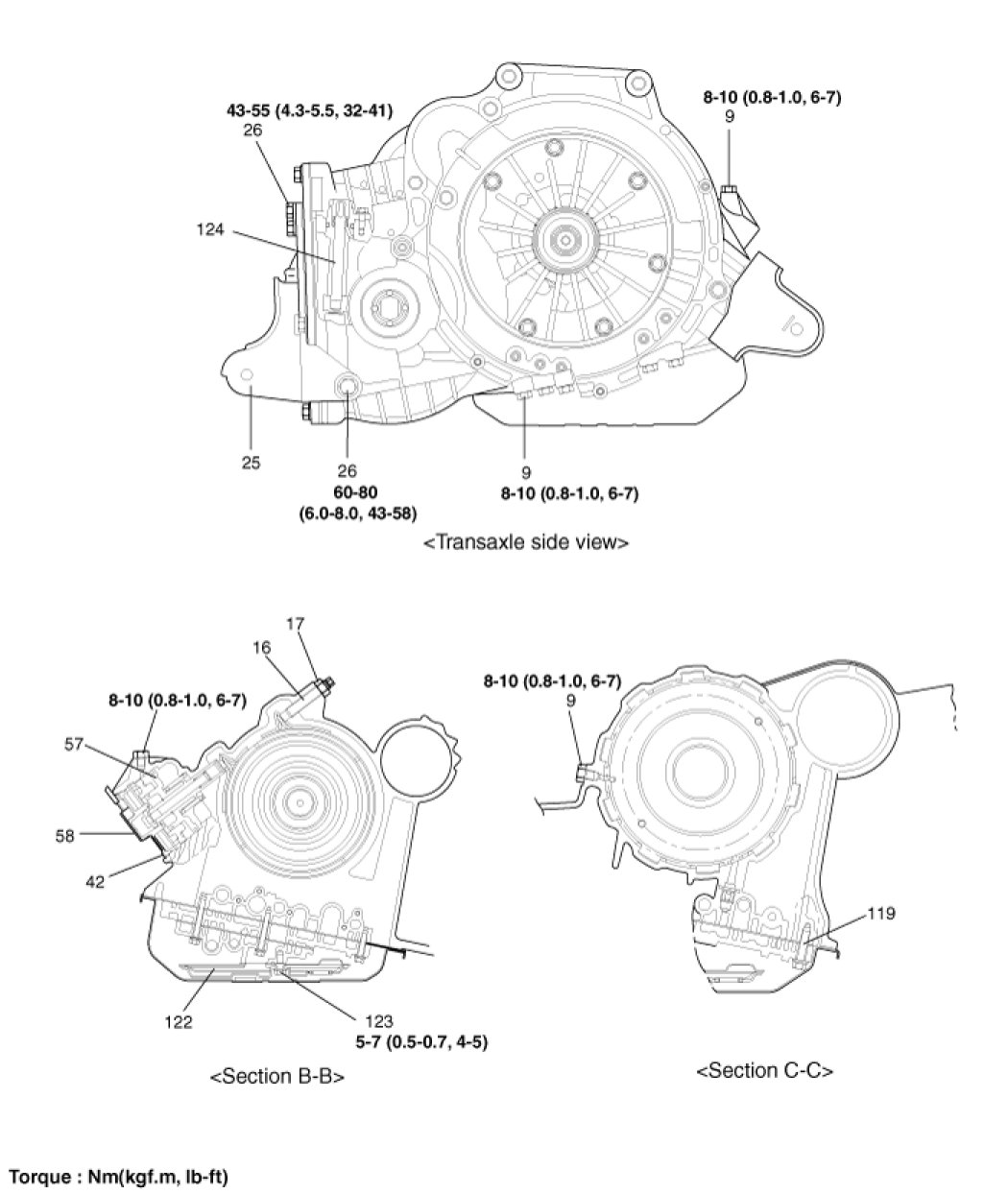

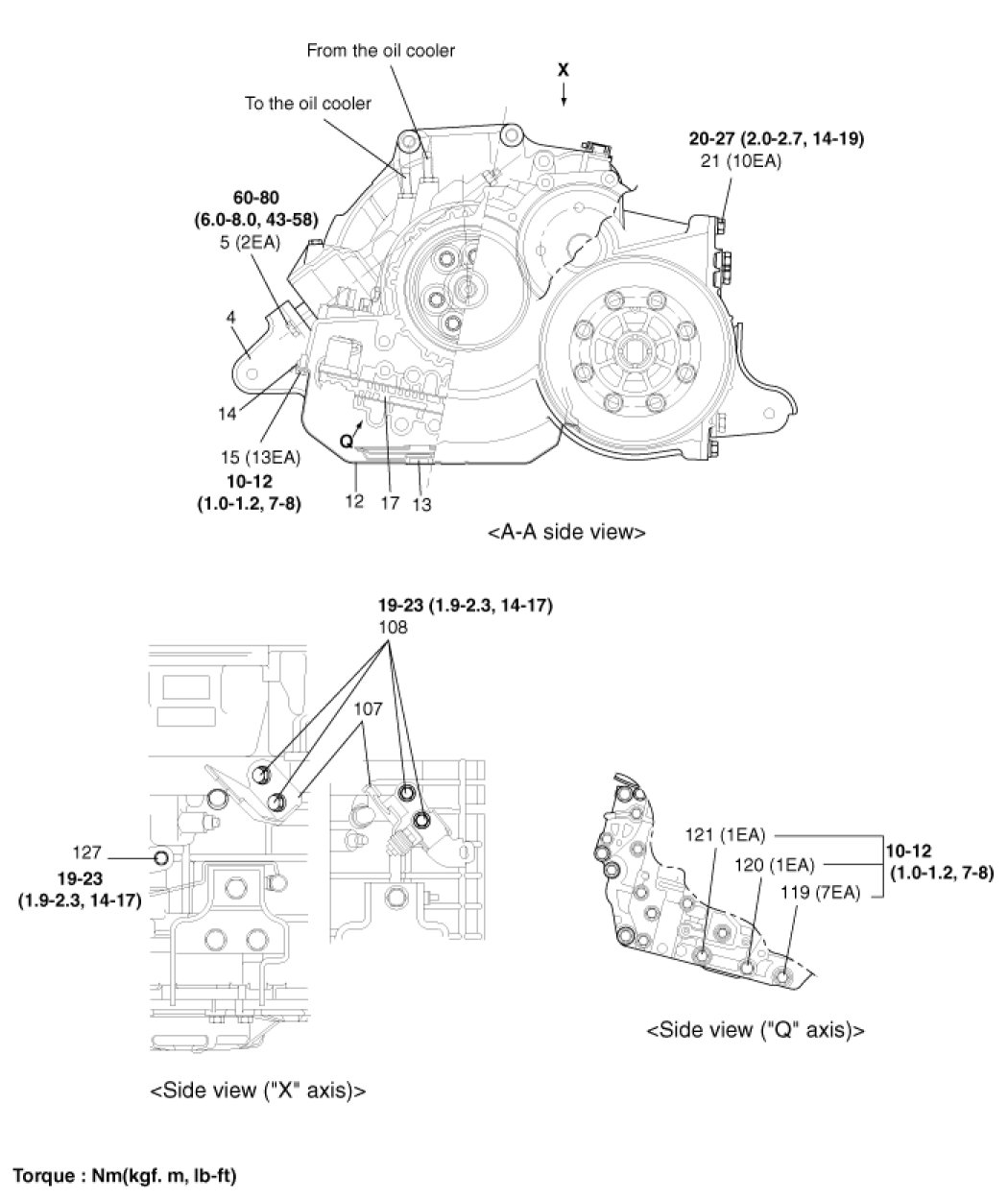

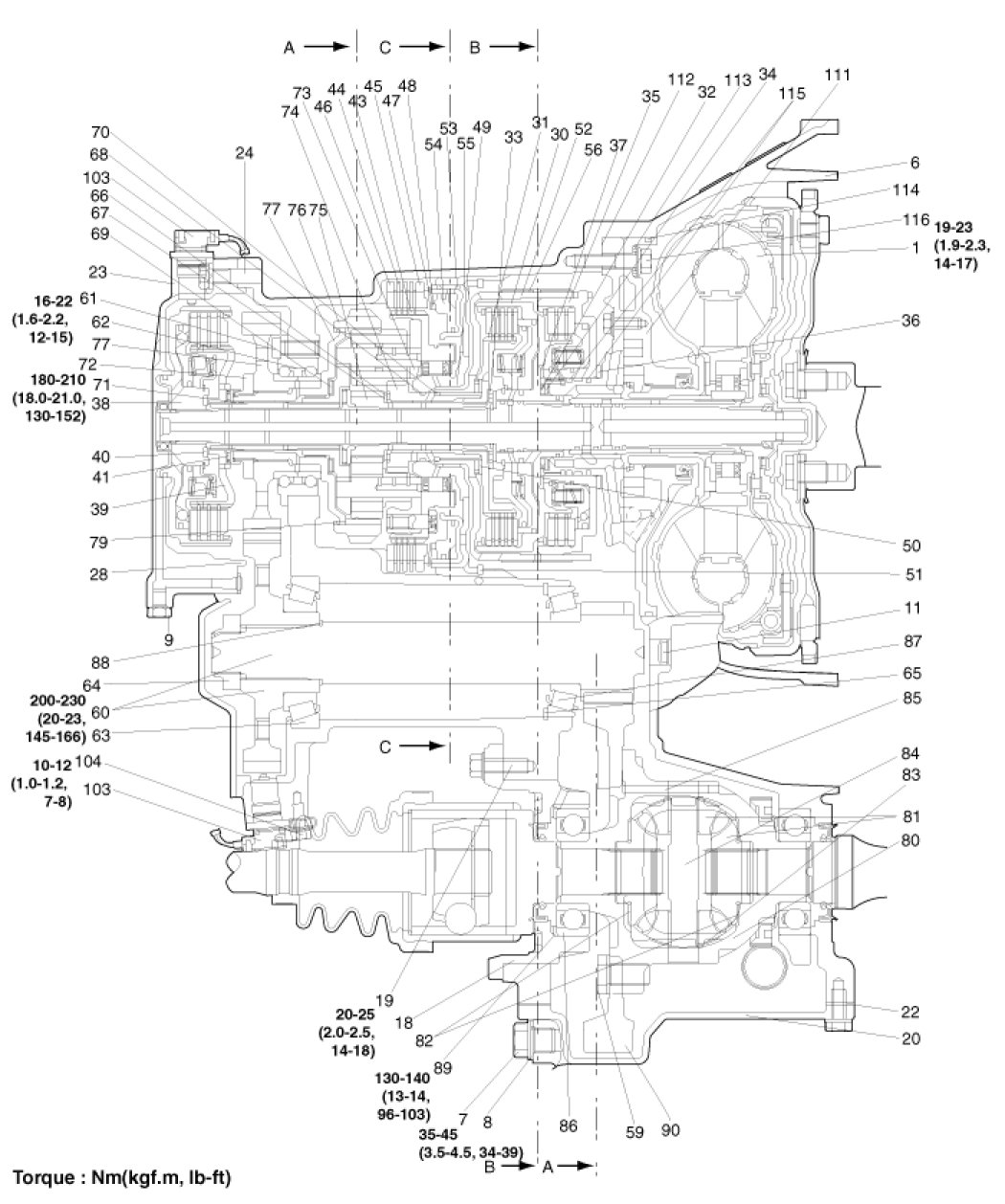

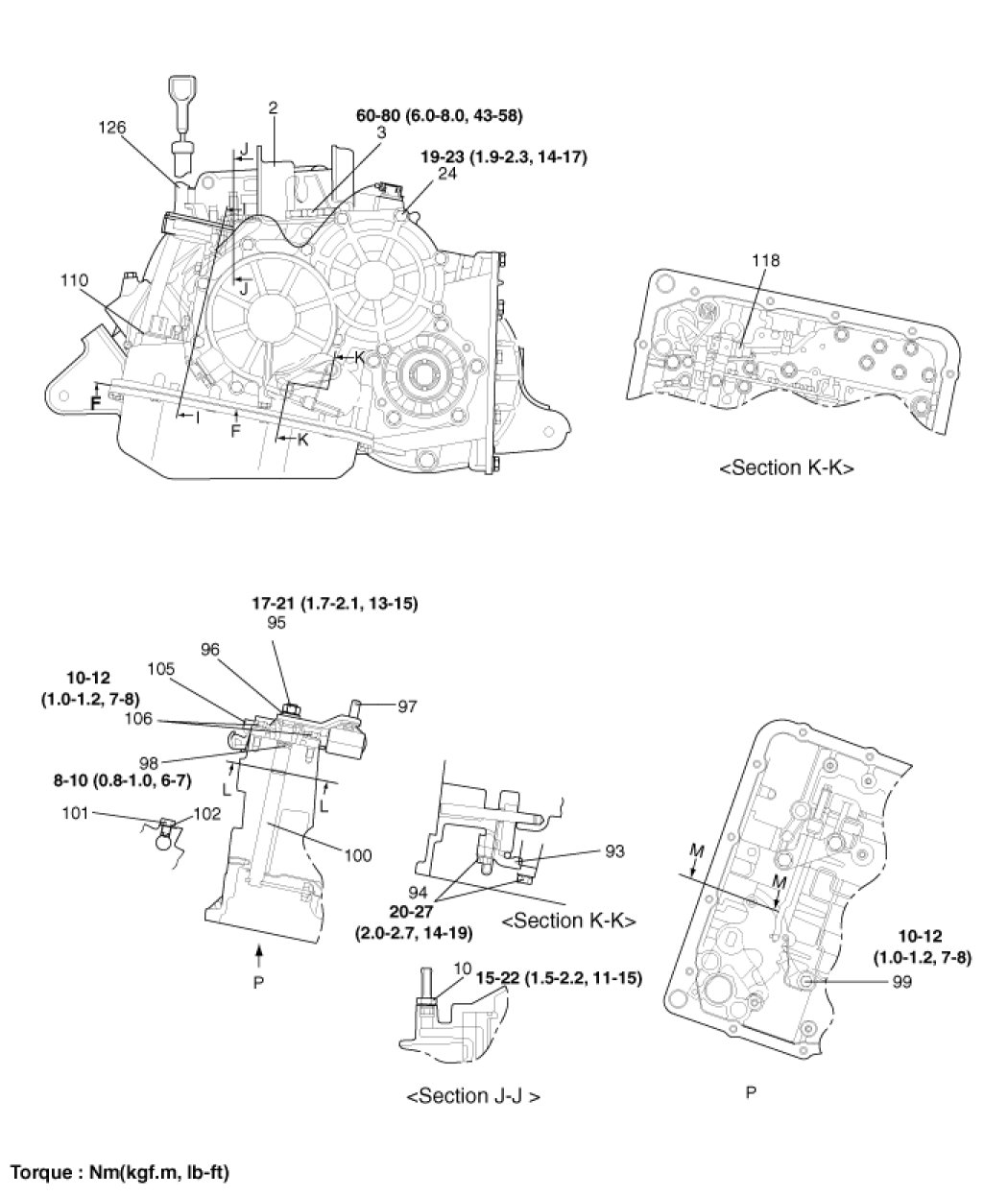

Automatic Transaxle





Component(1)





Component(2)





Component(3)





Component(4)





Component(5)
