Home
>>
Hyundai
>>
2009
>>
Accent L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
System Diagram

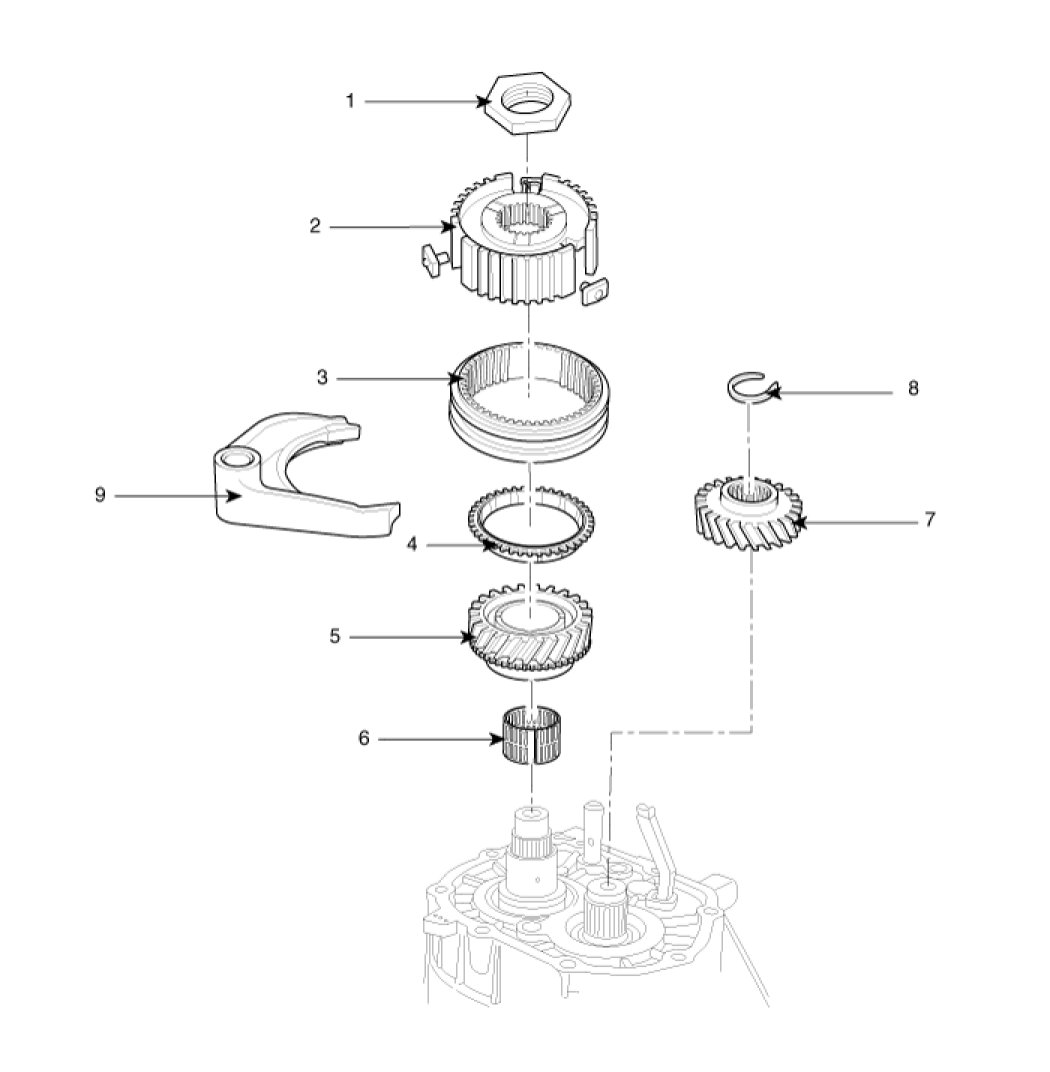

Components (1)

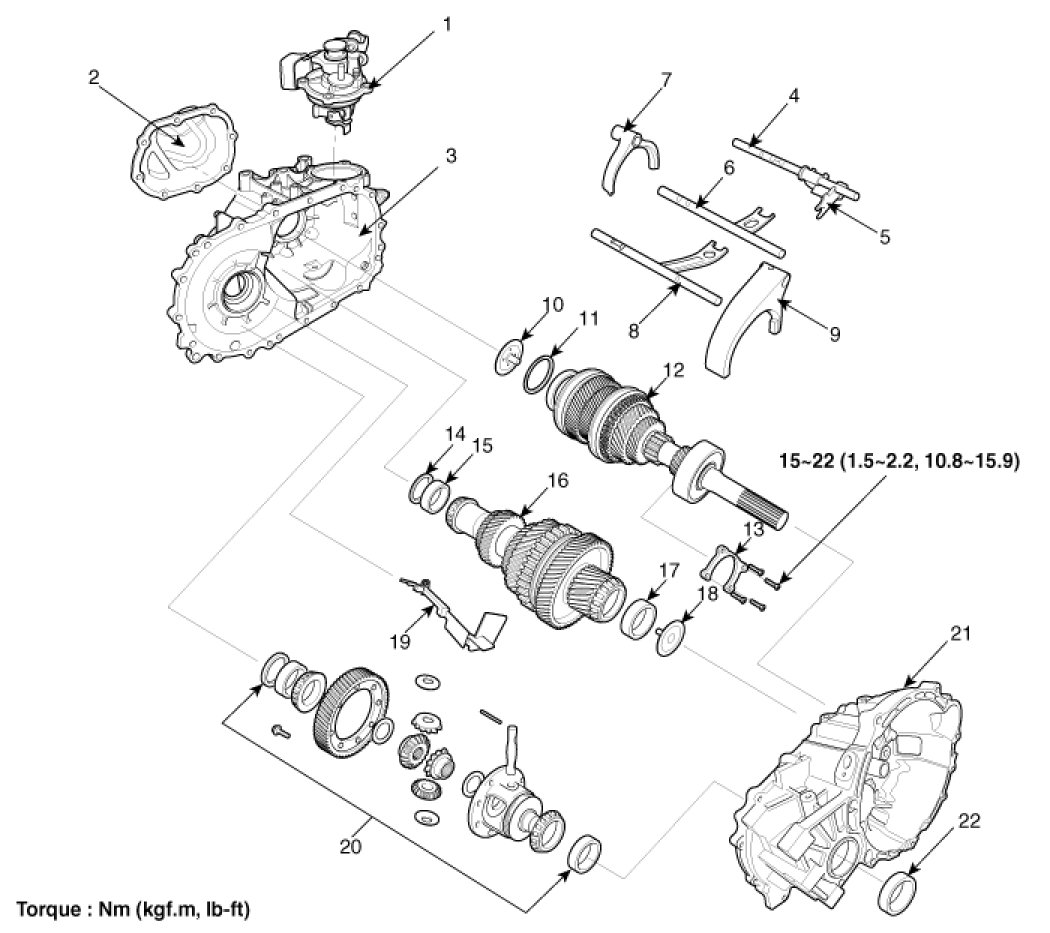

Components (2)
