Home >> Hyundai >> 2009 >> Accent L4-1.6L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Housing Assembly HVAC >> Blower Unit

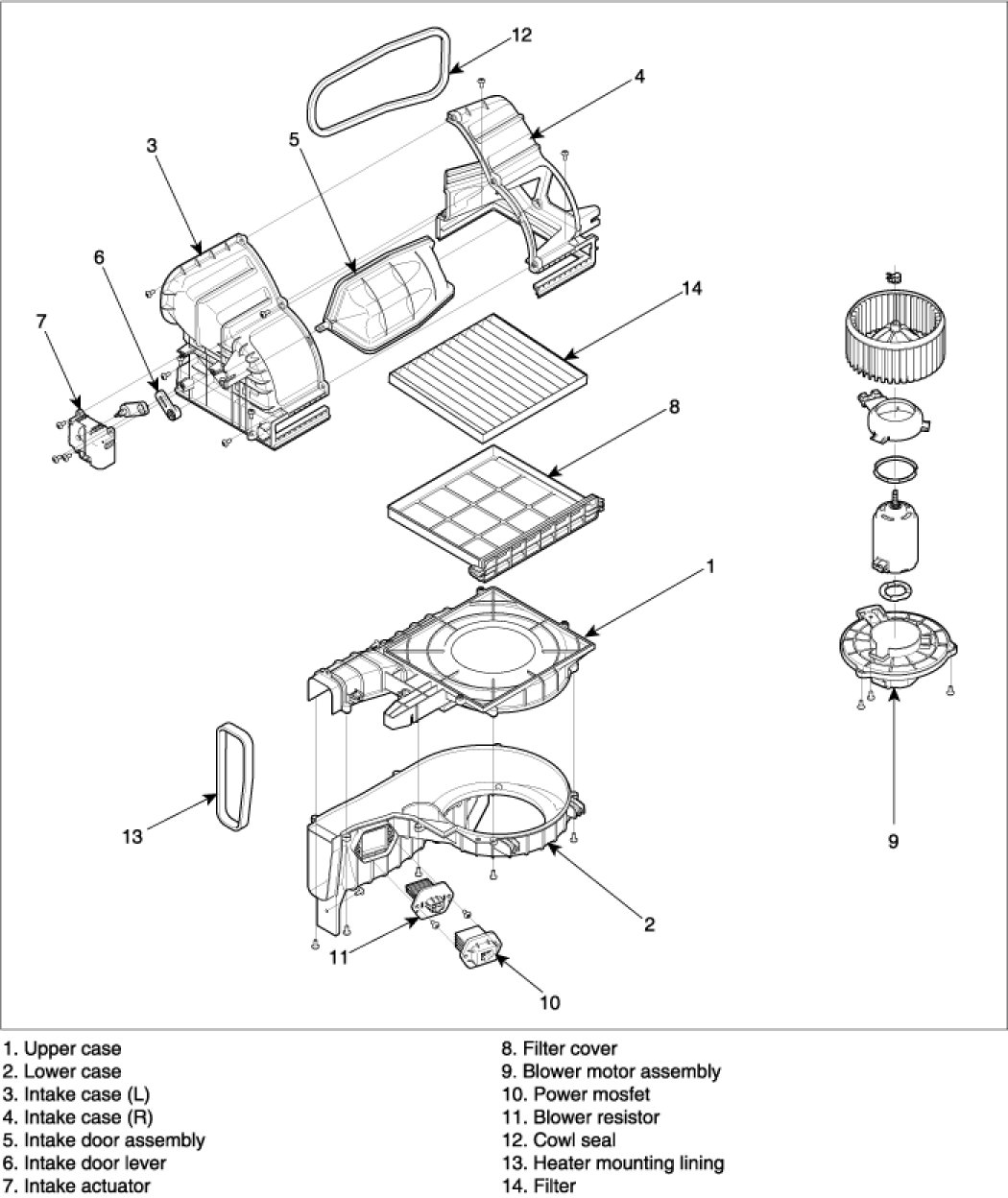

Blower Unit

COMPONENTS
