Home >> Hyundai >> 2008 >> Tucson AWD L4-2.0L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Housing Assembly HVAC

Housing Assembly HVAC

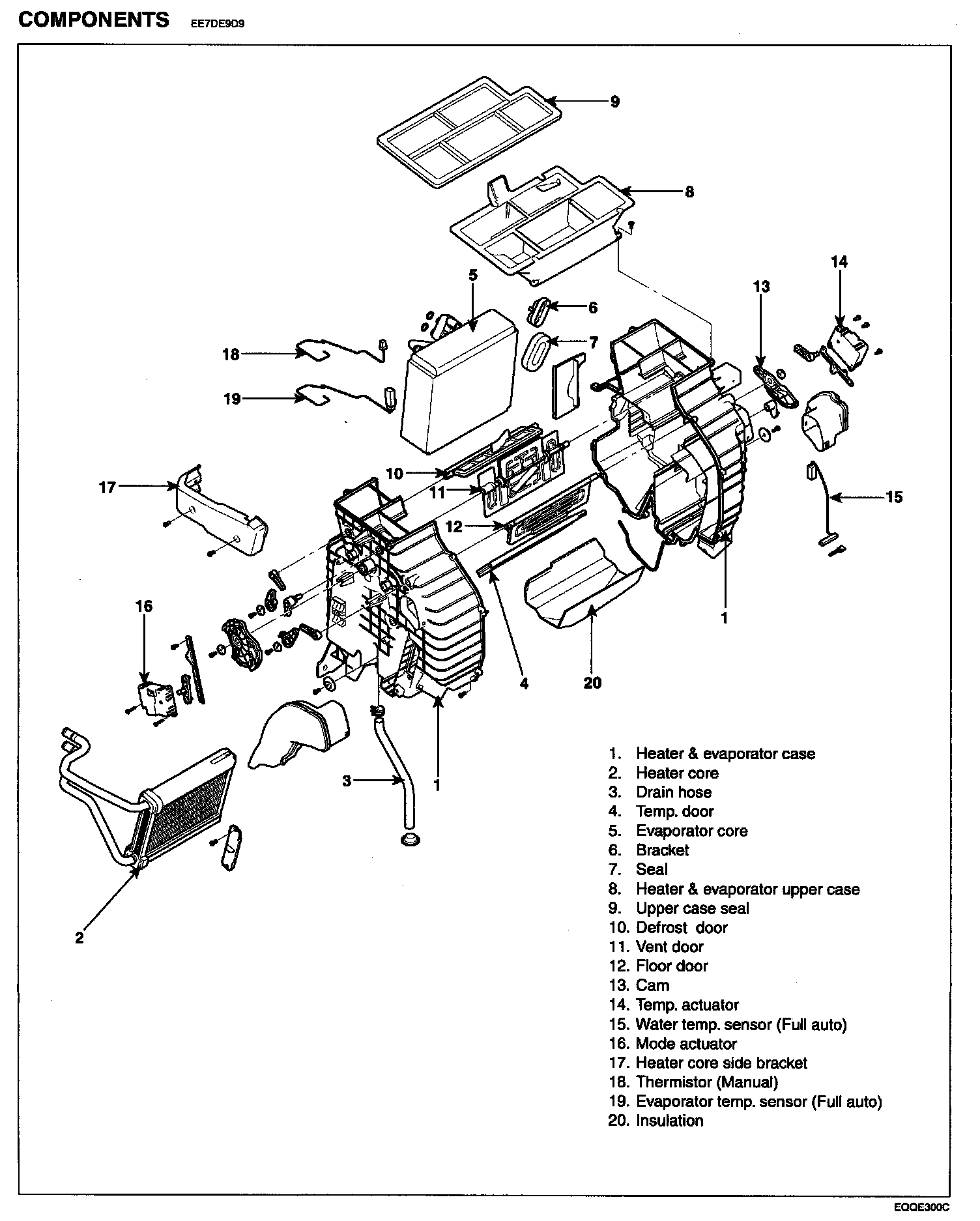

Heater Unit - Components:
