Body Control Module

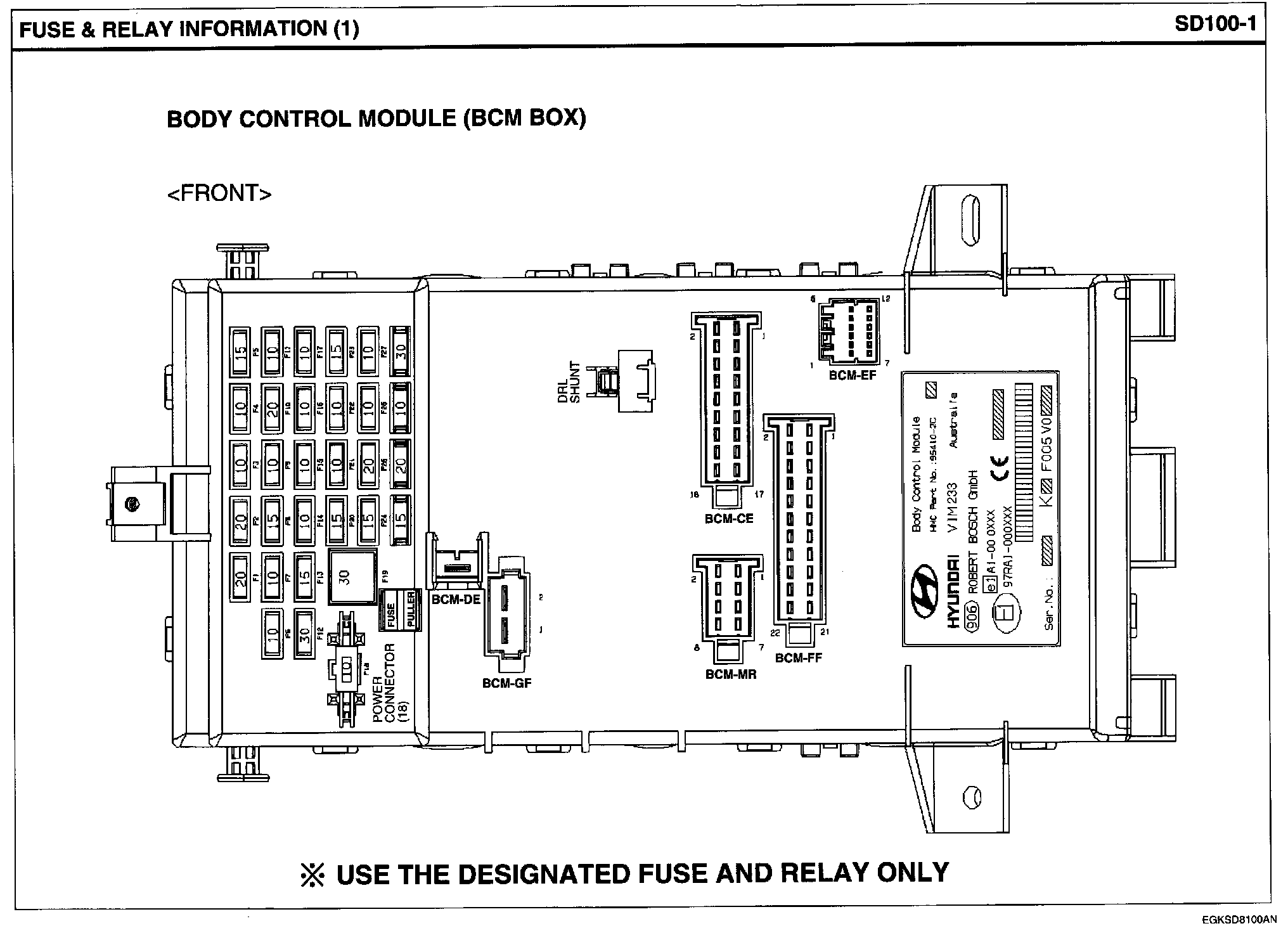

Body Control Module (BCM Box) View:

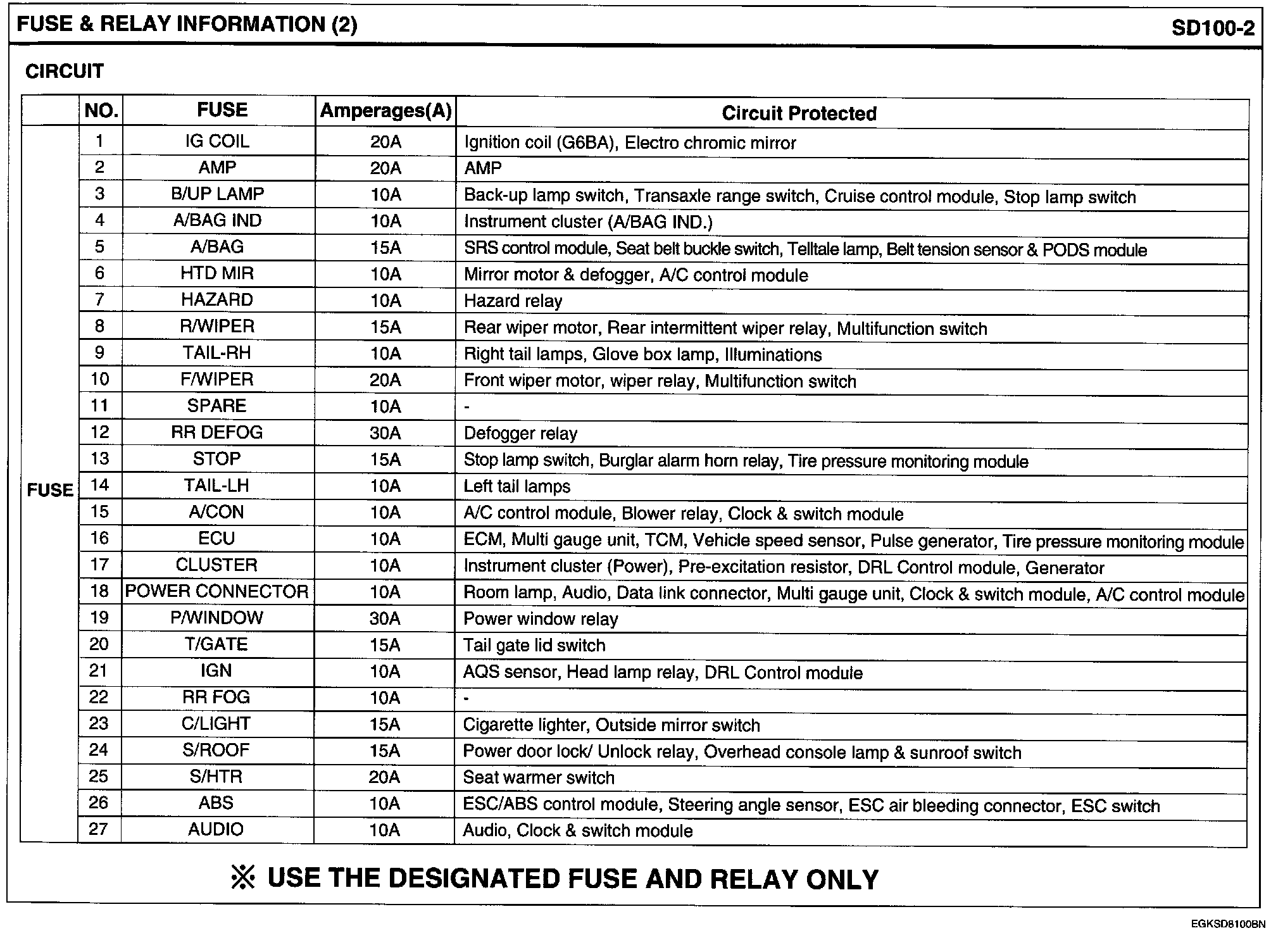

Body Control Module (BCM Box) Circuit Details:

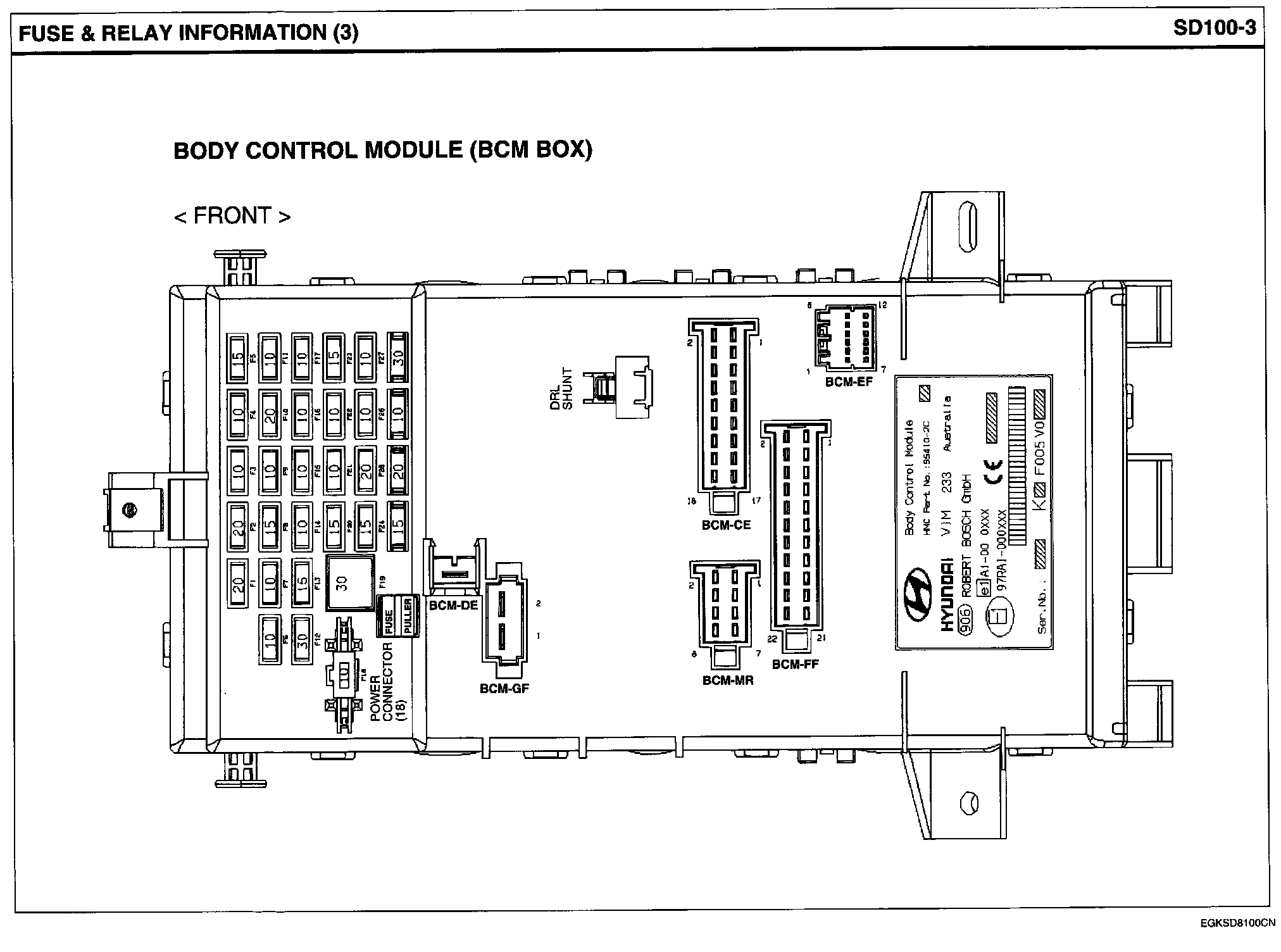

Body Control Module (BCM Box) View:

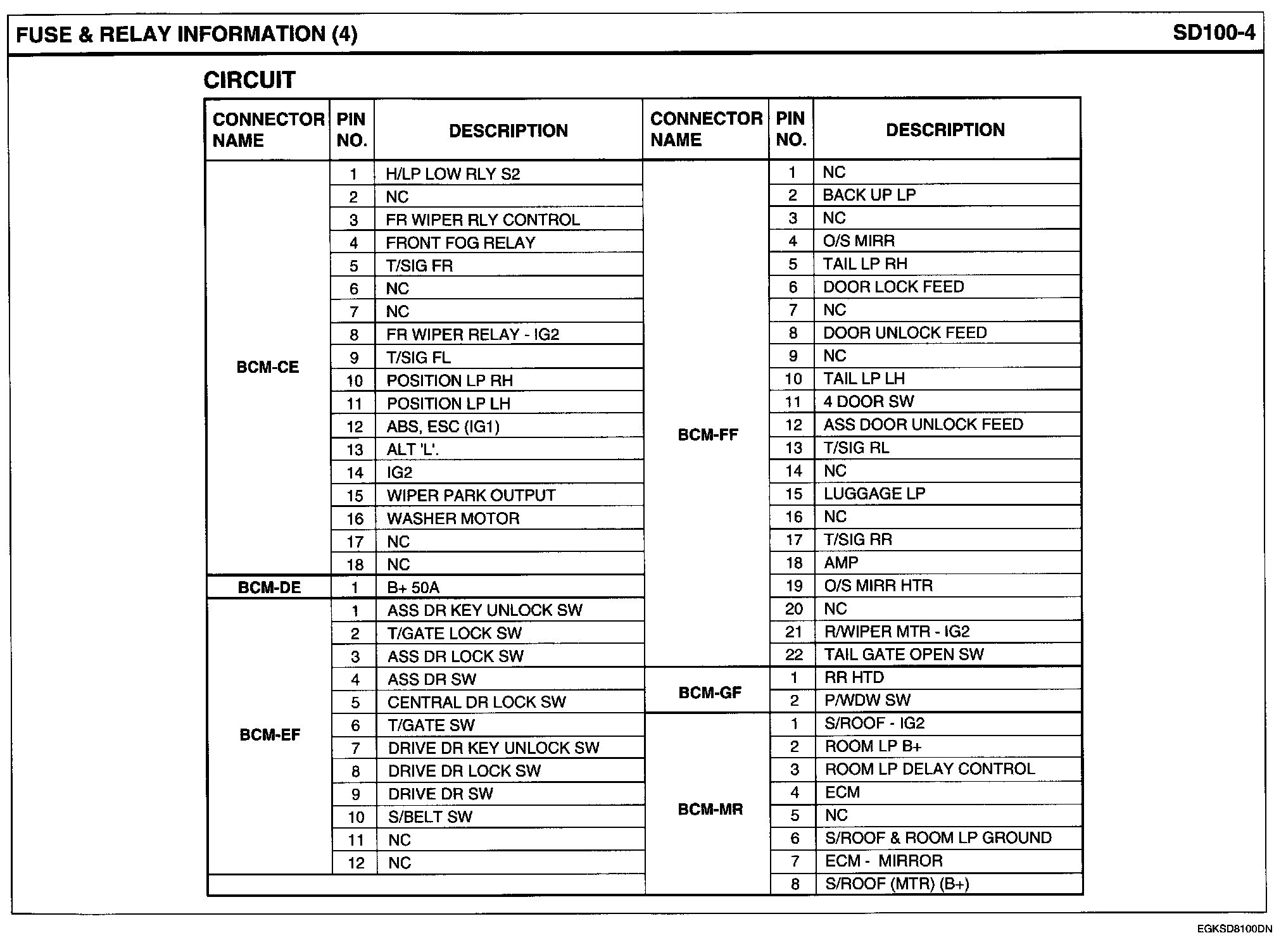

Body Control Module (BCM Box) Circuit Details:

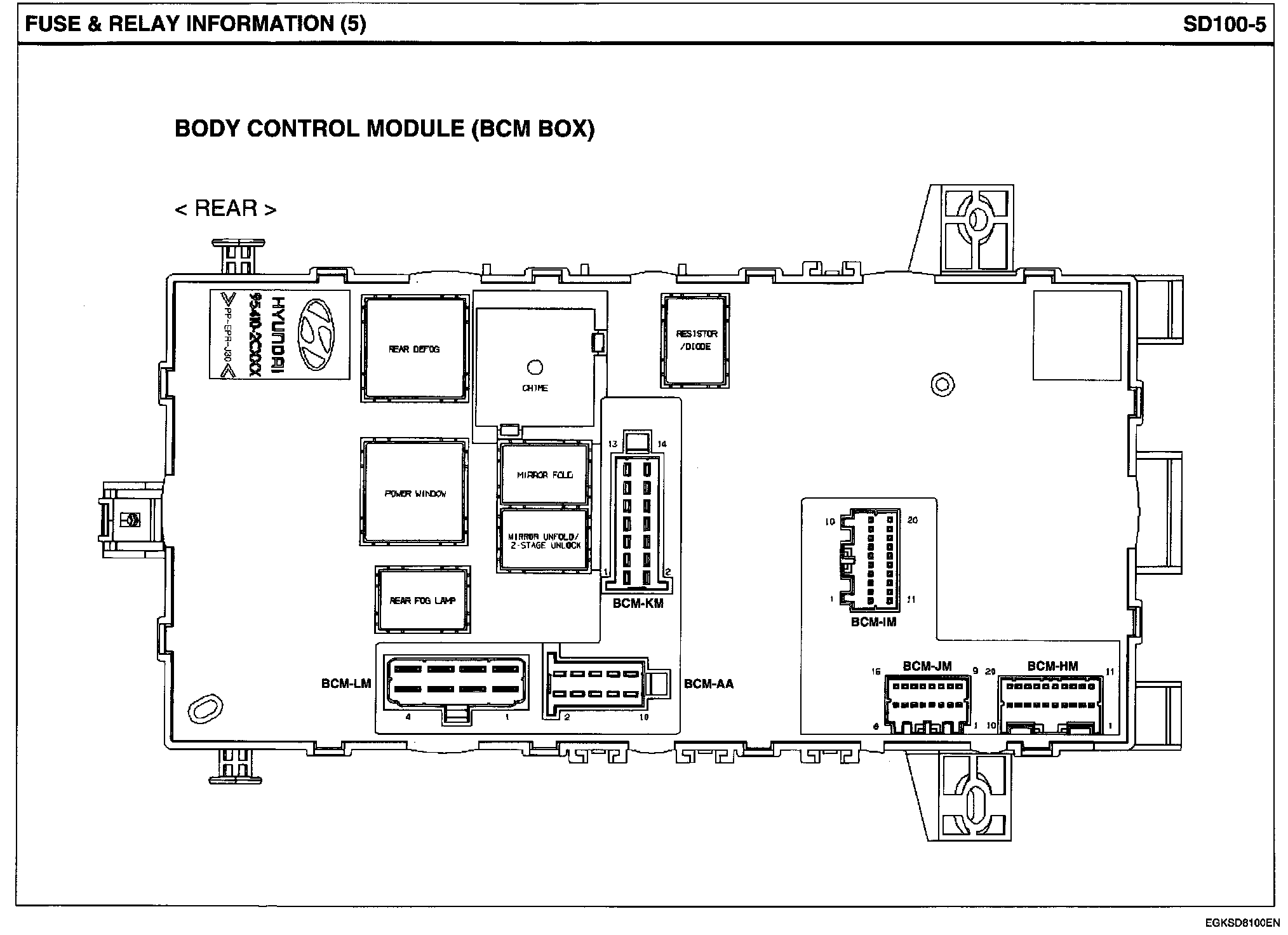

Body Control Module (BCM Box) View:

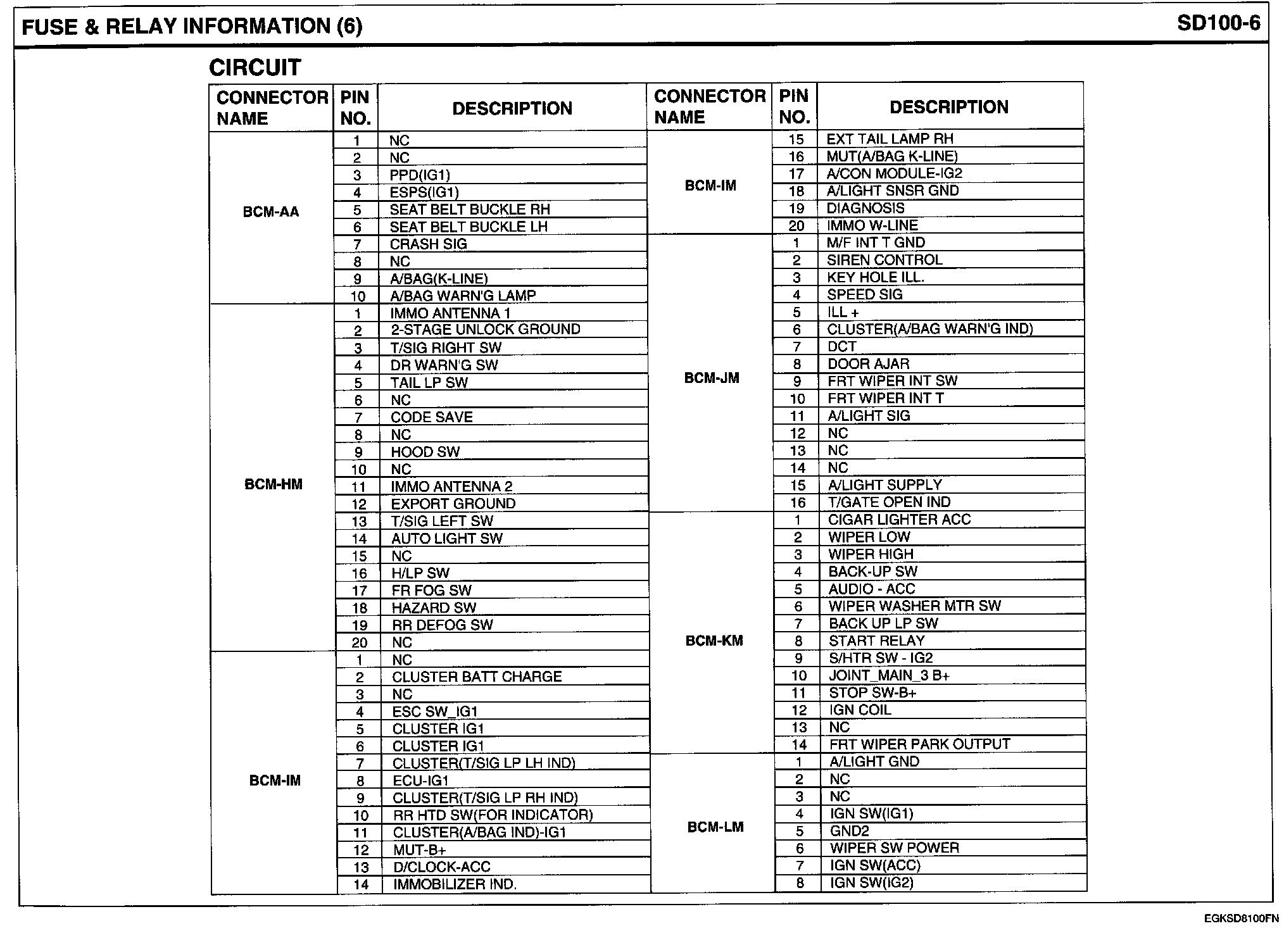

Body Control Module (BCM Box) Circuit Details:

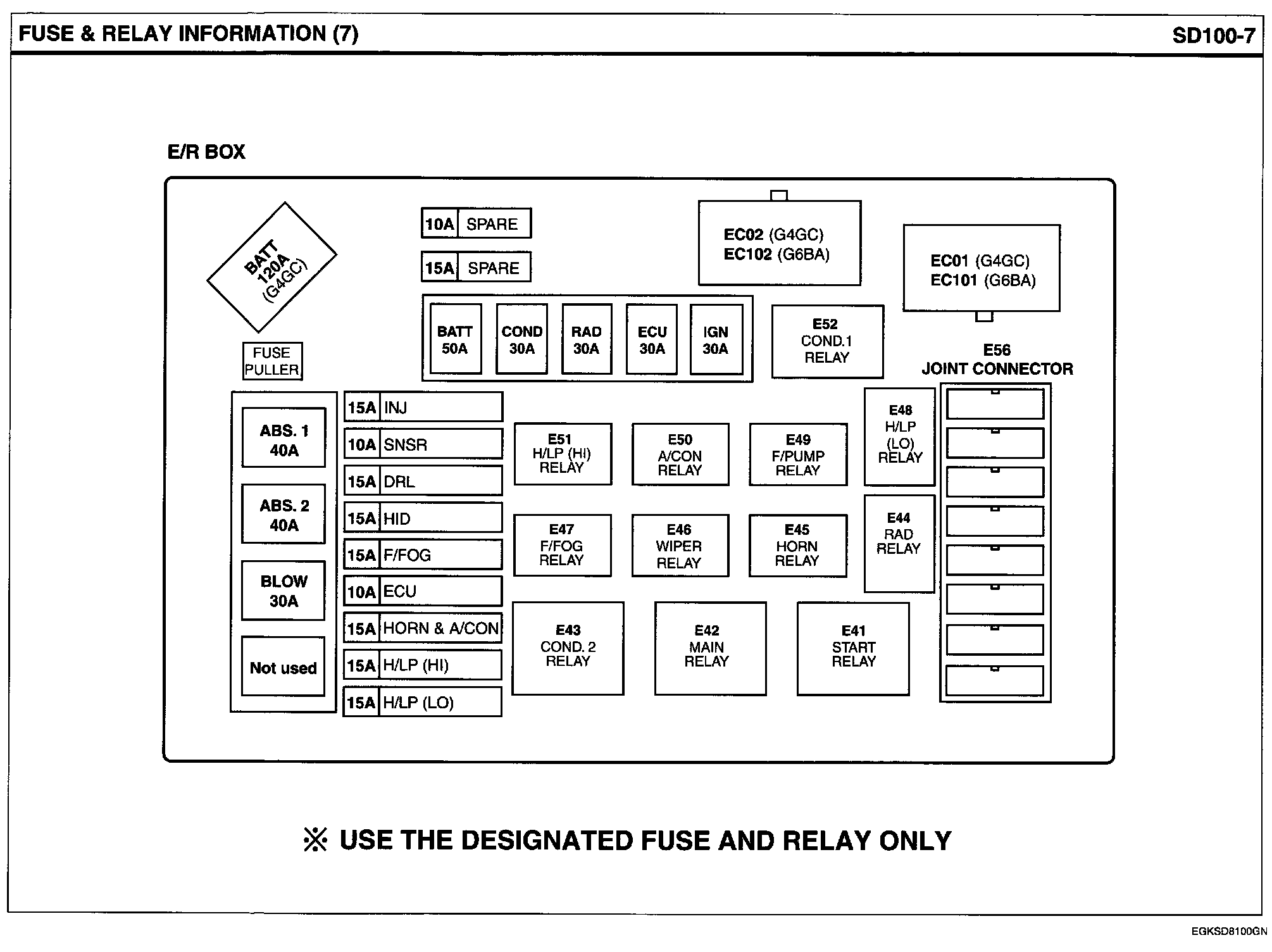

E/R Box View:

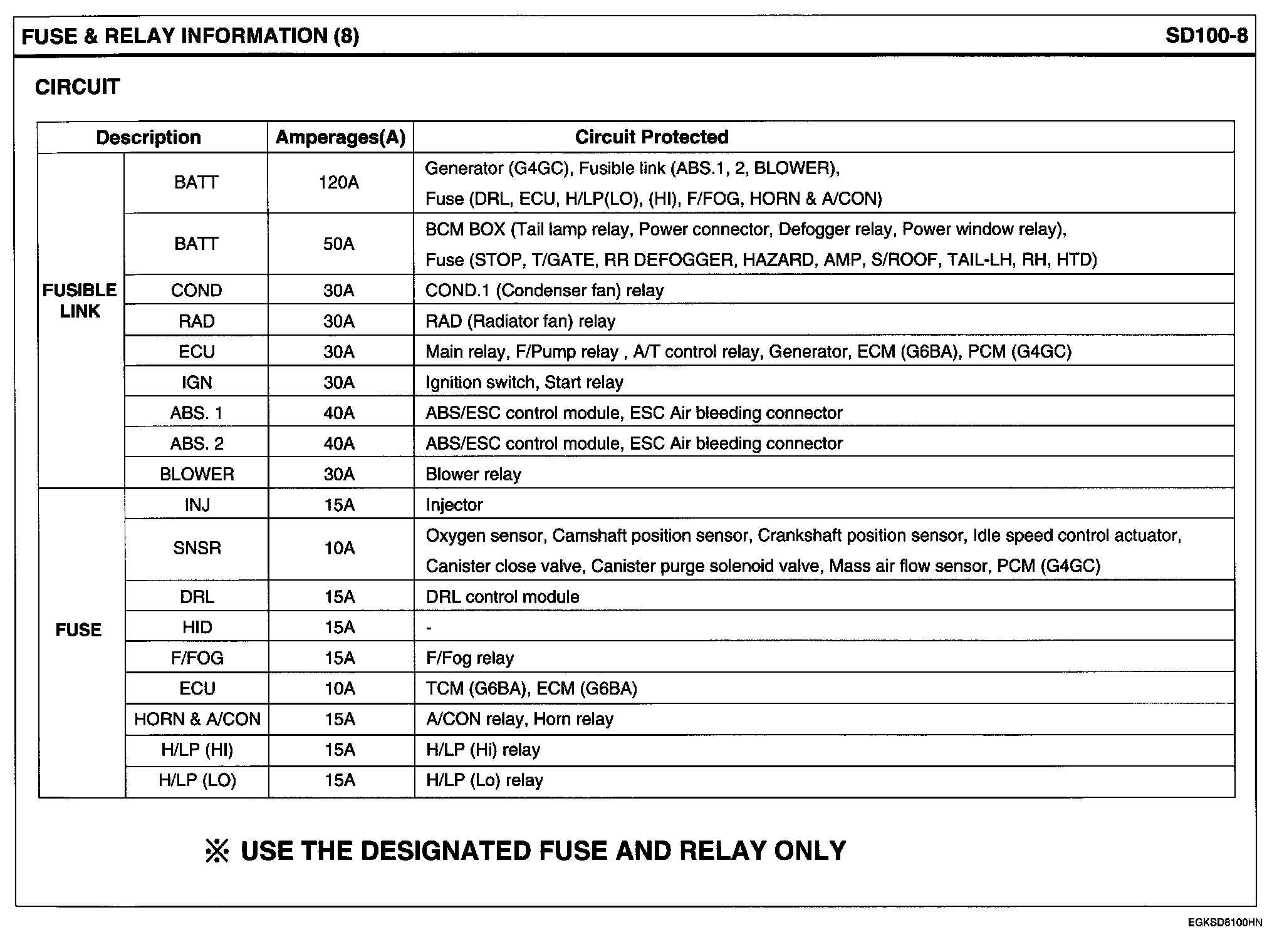

E/R Box Circuit Details:
