Home >> Hyundai >> 2008 >> Santa Fe FWD V6-3.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Data Link Connector >> Locations

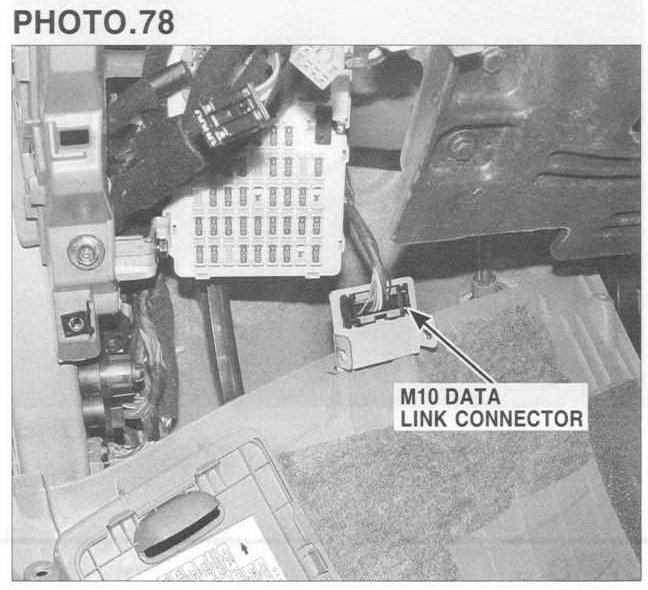

Data Link Connector: Locations

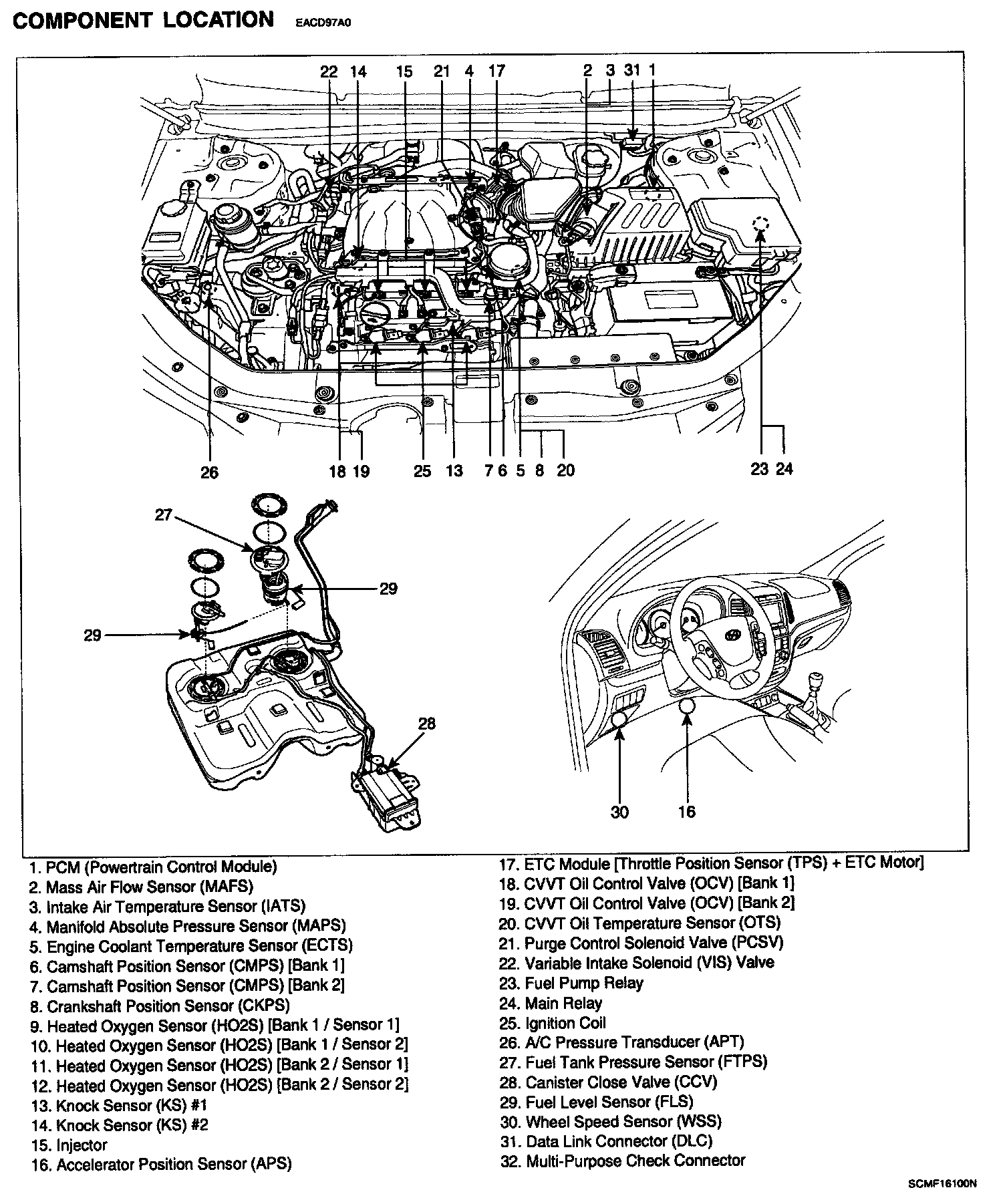

Gasoline Engine Control System - Component Location:
