Relay Box (Engine Compartment)

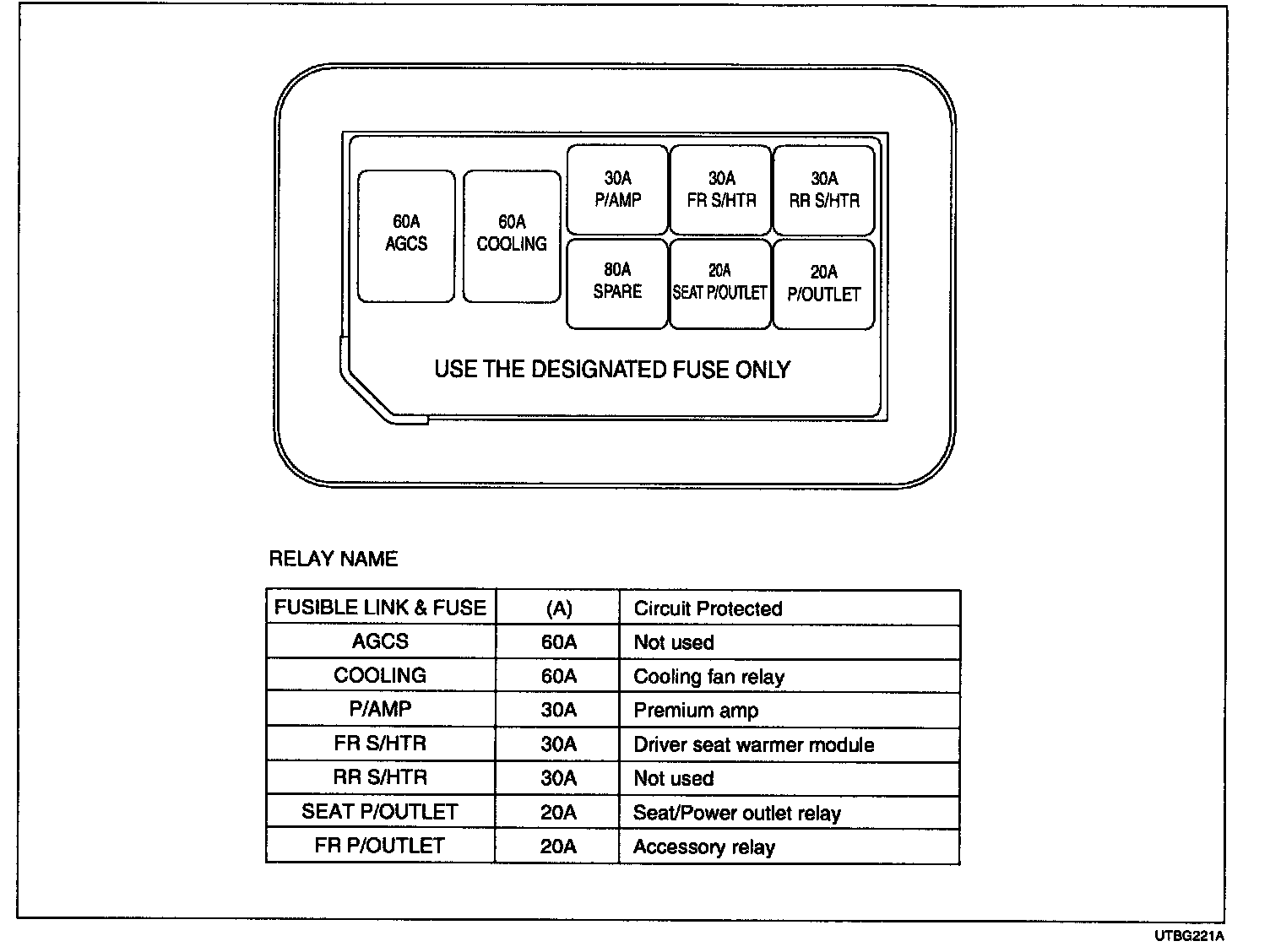

Relay Box (Engine Compartment) - Component Location (Part 1):

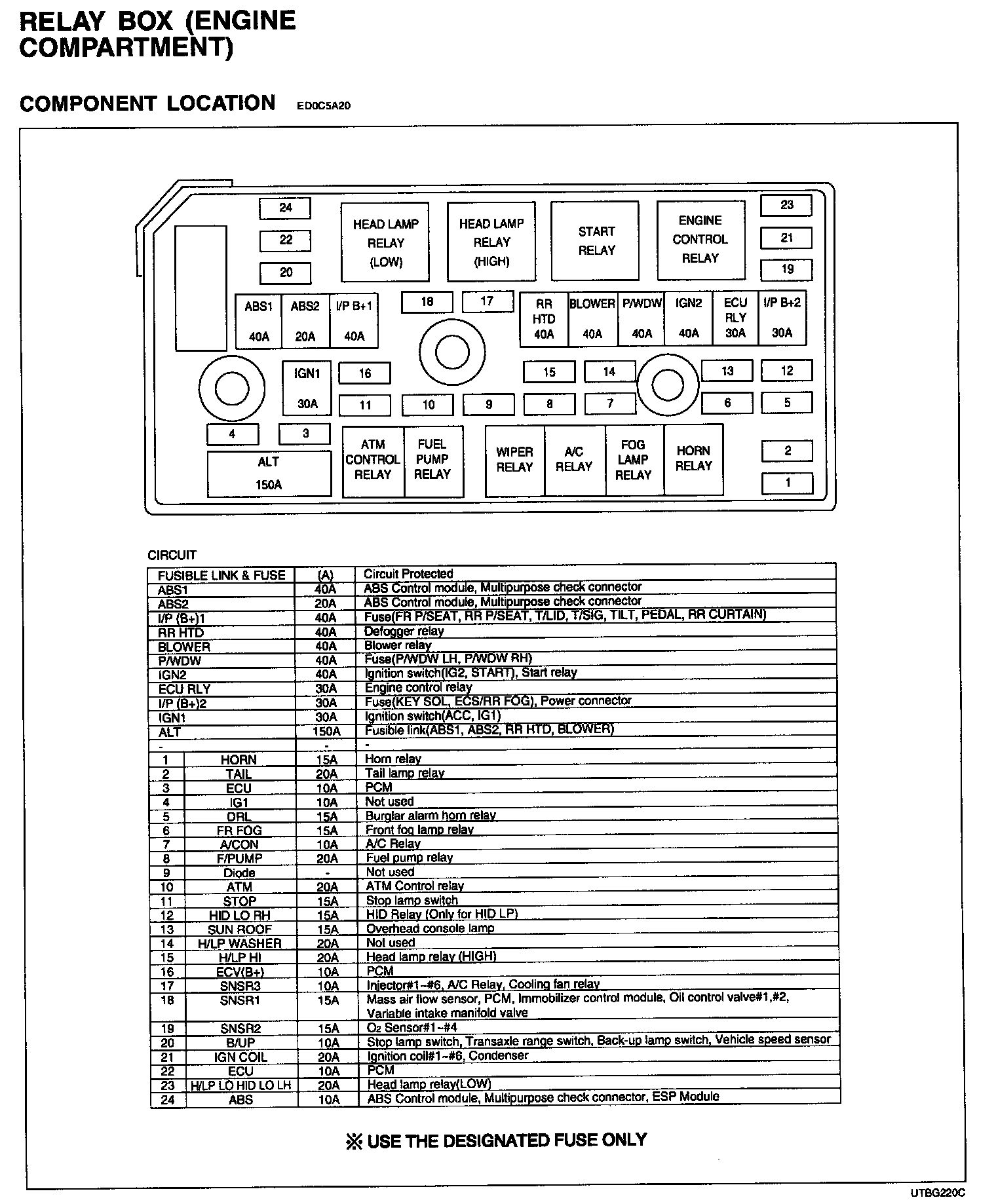

Relay Box (Engine Compartment) - Component Location:
