Electronic Brake Control Module: Testing and Inspection

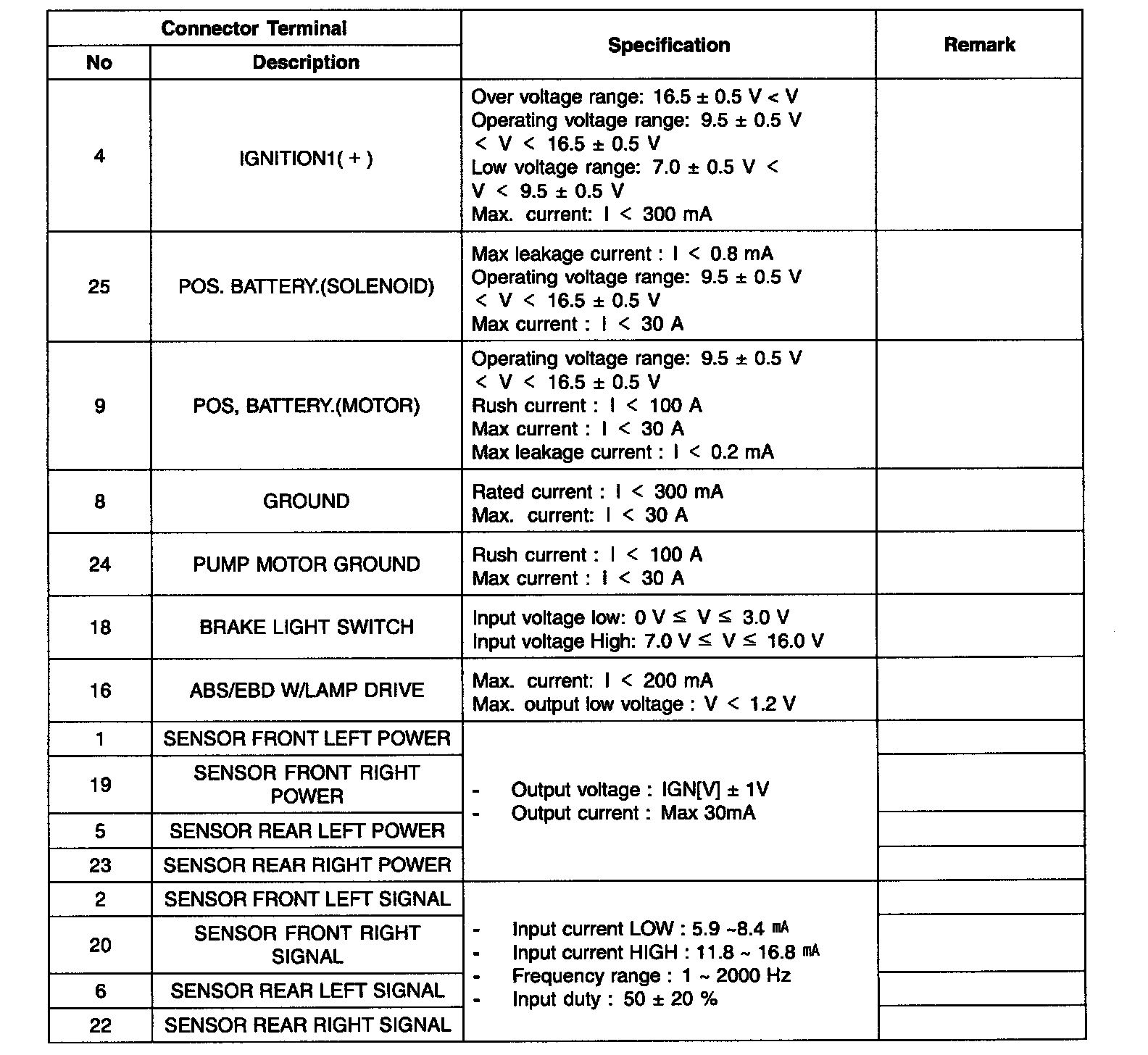

ABS CONNECTOR INPUT/OUTPUT
ABS Connector Input/Output (Part 1):
ABS Connector Input/Output (Part 2):
ABS Connector Input/Output (Part 3):
