Home >> Hyundai >> 2007 >> Veracruz AWD V6-3.8L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Alternator

Alternator

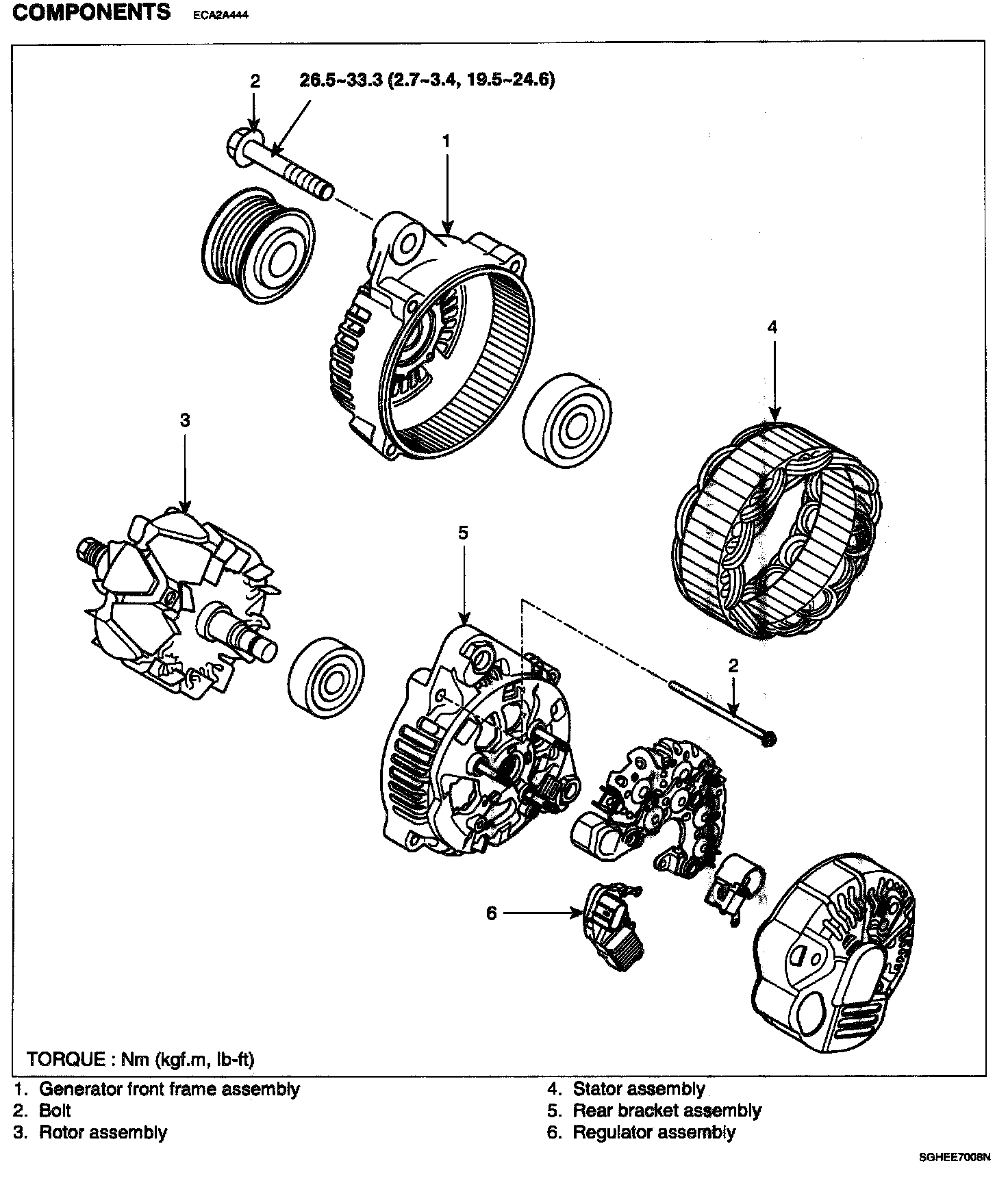

Alternator Components:
