Power Window Switch

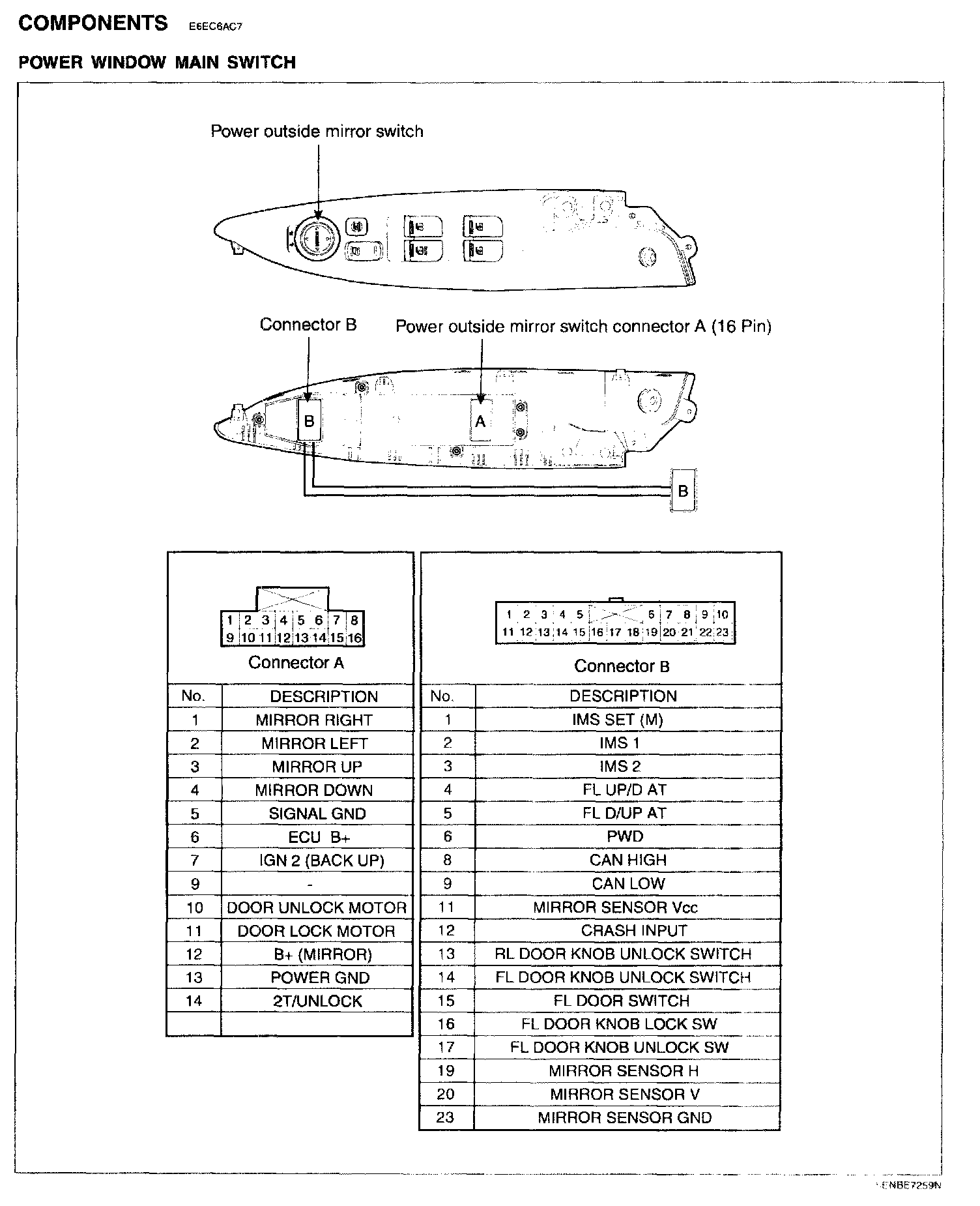

Power Window Switch Components:

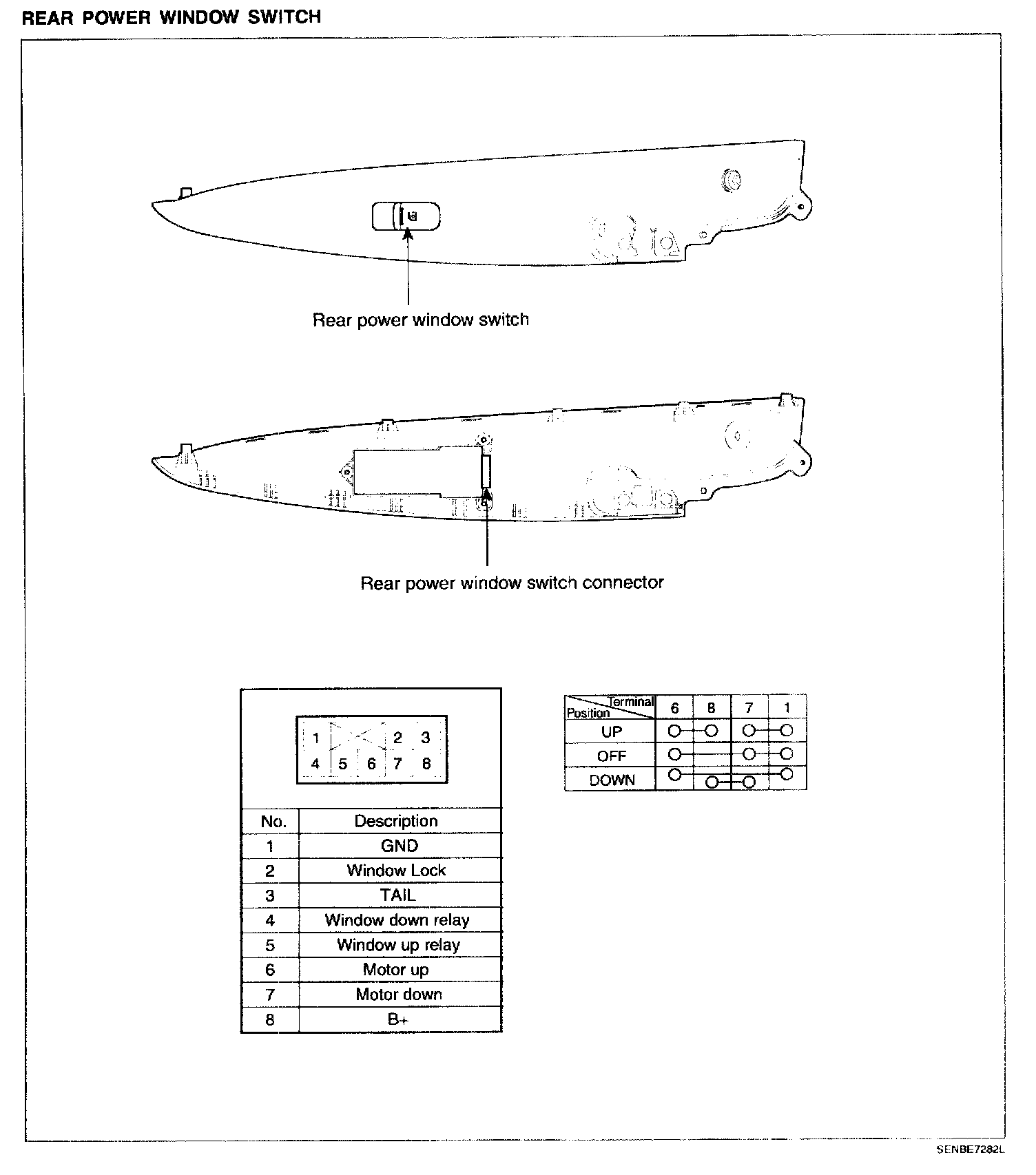

Rear Power Window Switch Components:

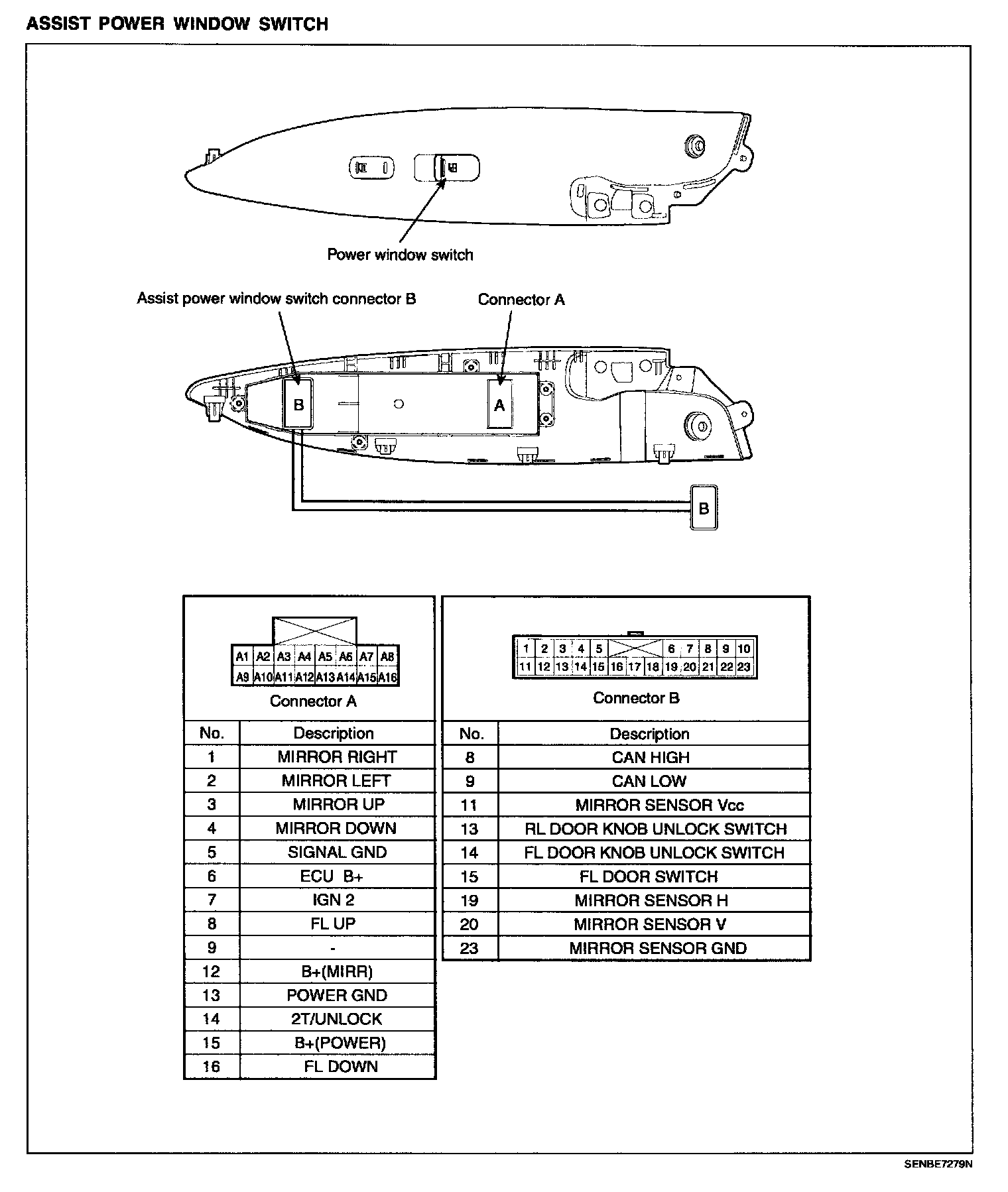

Assist Power Window Switch Components:
