ECM Mirror Replacement

ECM MIRROR REPLACEMENT

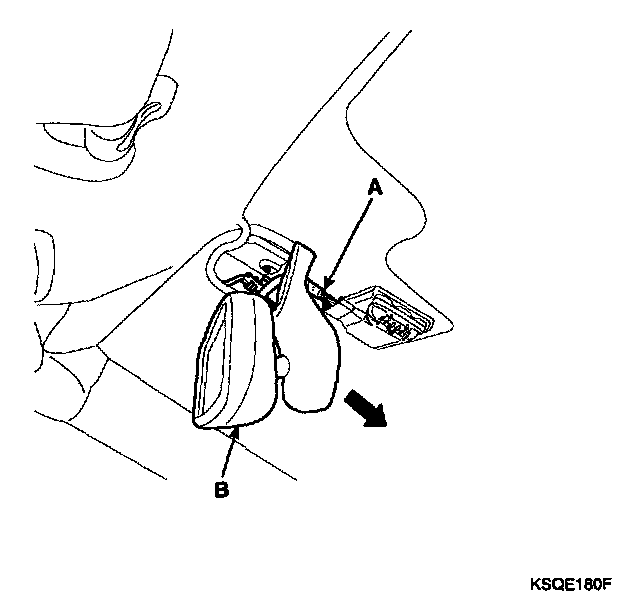

1. Remove the cover and connector (A).
2. Push the ECM mirror base down to remove the ECM mirror assembly (B).
3. Installation is the reverse of removal.
