Home >> Hyundai >> 2007 >> Tucson AWD L4-2.0L >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Locations >> Passenger Compartment Relay Box

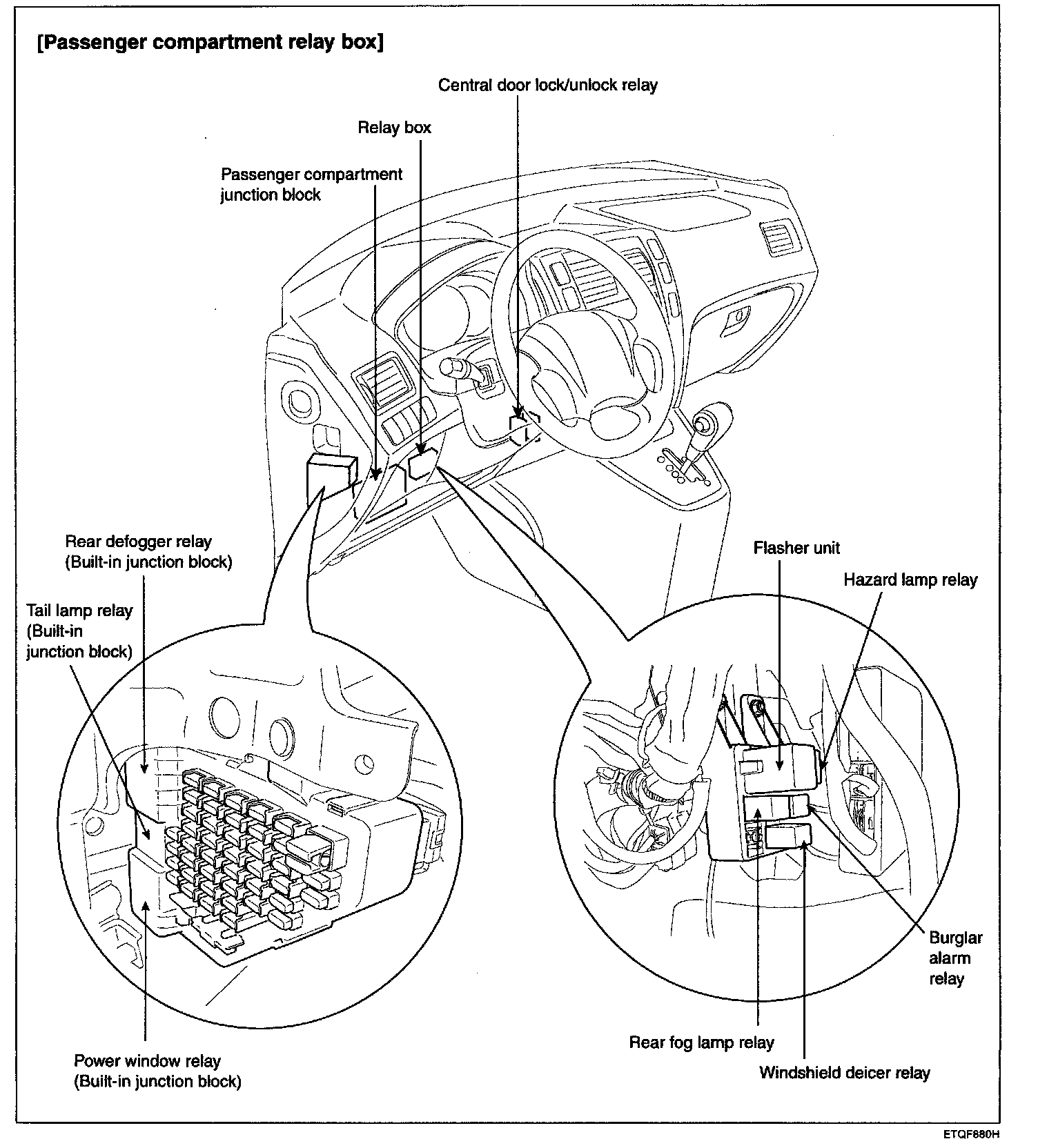

Passenger Compartment Relay Box

Fuses And Relays (Passenger Compartment Relay Box) Components:
