General Specifications

Brake System

GENERAL SPECIFICATIONS

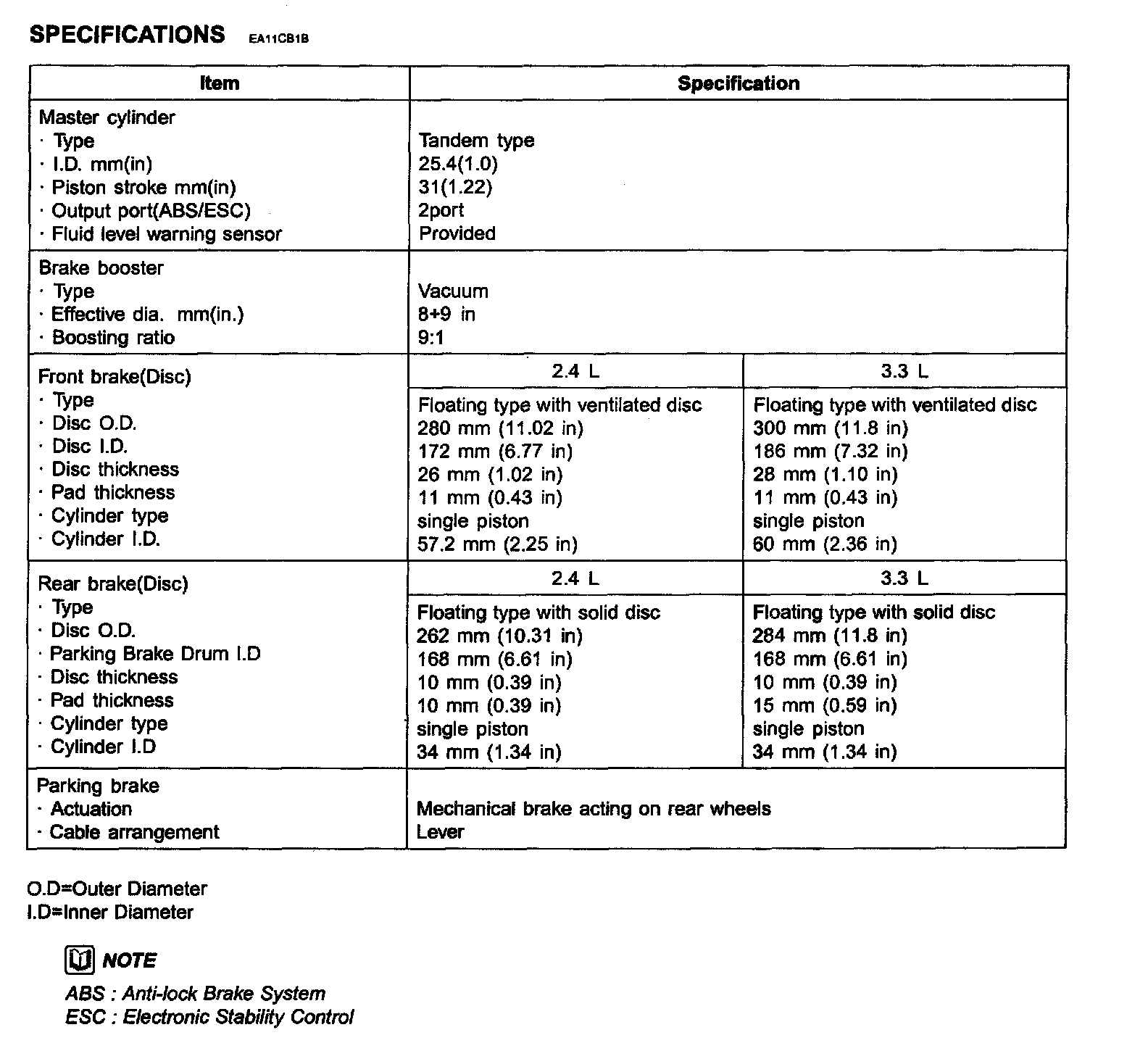

SPECIFICATIONS:





SPECIFICATION (ABS)

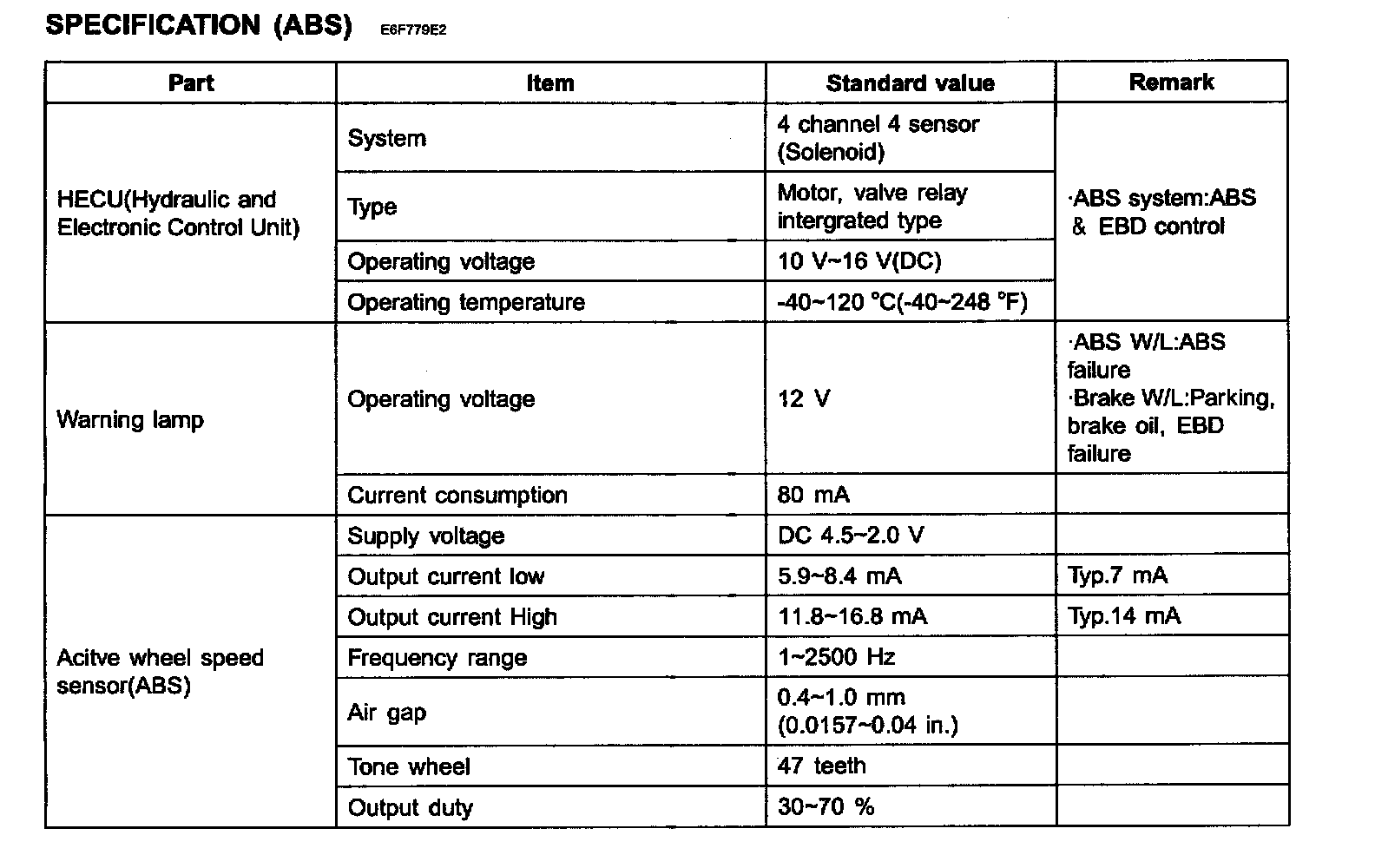

SPECIFICATION (ABS):





SPECIFICATION (ESC)

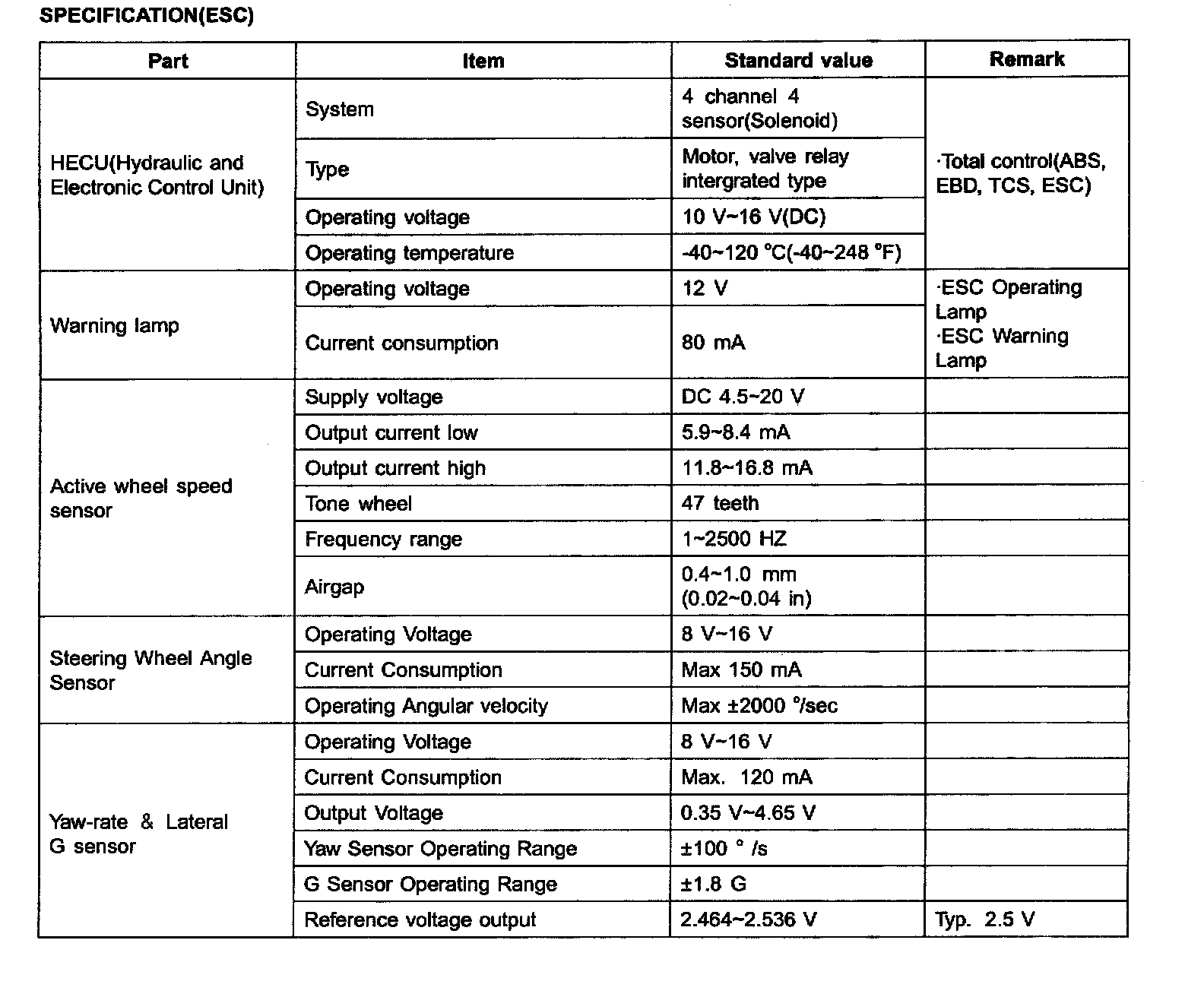

SPECIFICATION (ESC):
