Home >> Hyundai >> 2007 >> Sonata L4-2.4L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Housing Assembly HVAC

Housing Assembly HVAC

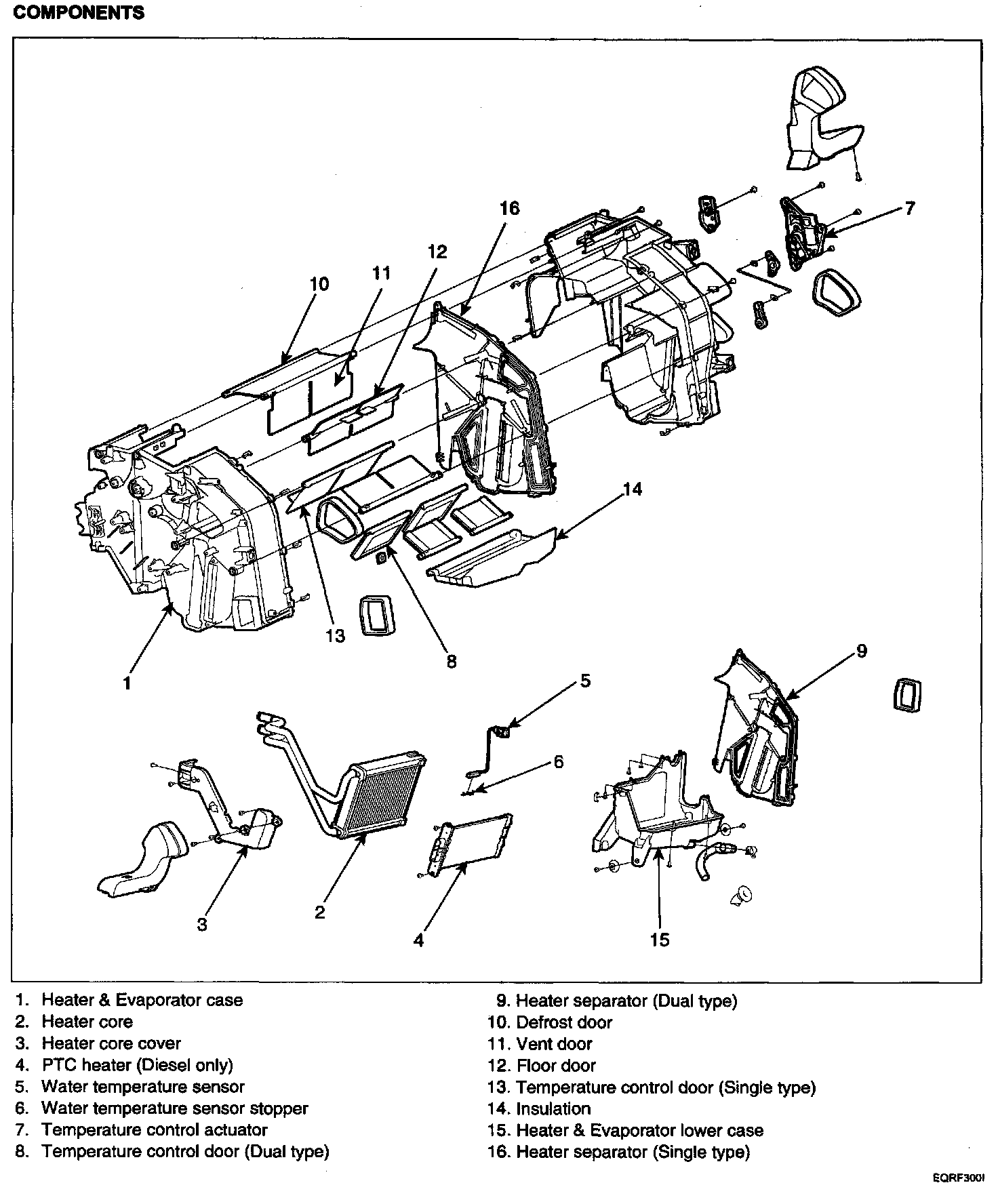

Components (Part 2):

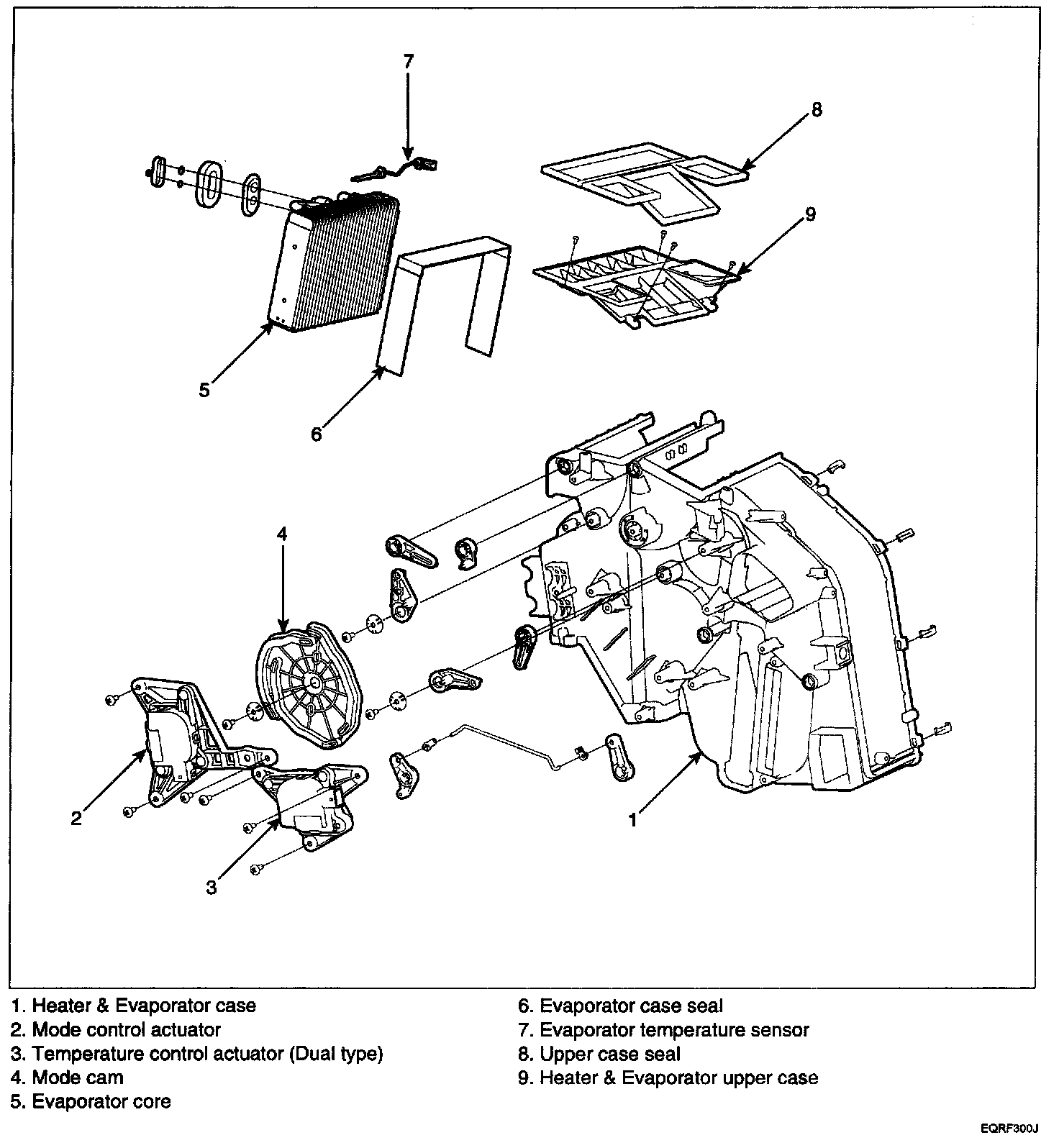

Components (Part 1):
