Home >> Hyundai >> 2007 >> Santa Fe AWD V6-3.3L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Oil Temperature Sensor For ECM >> Locations

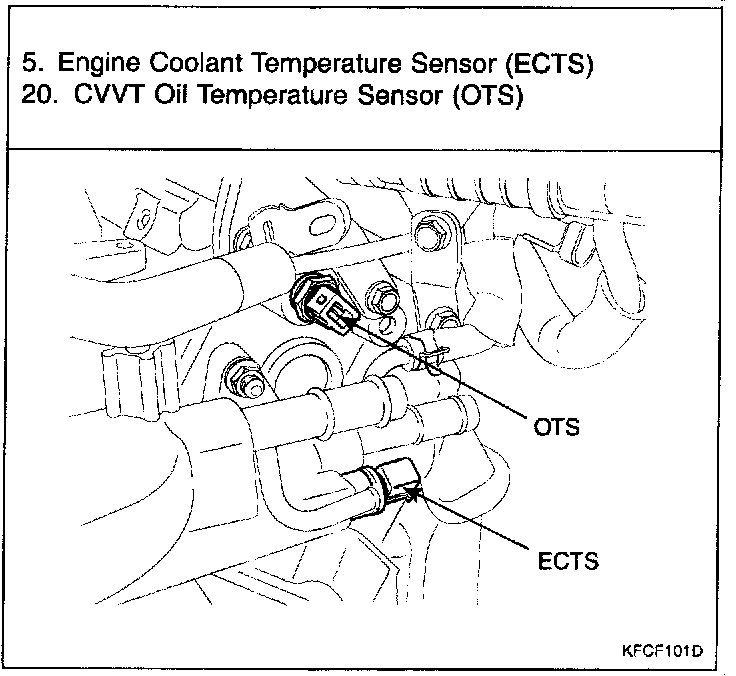

Oil Temperature Sensor For ECM: Locations



Gasoline Engine Control System - Component Location:
