Fuse: Locations

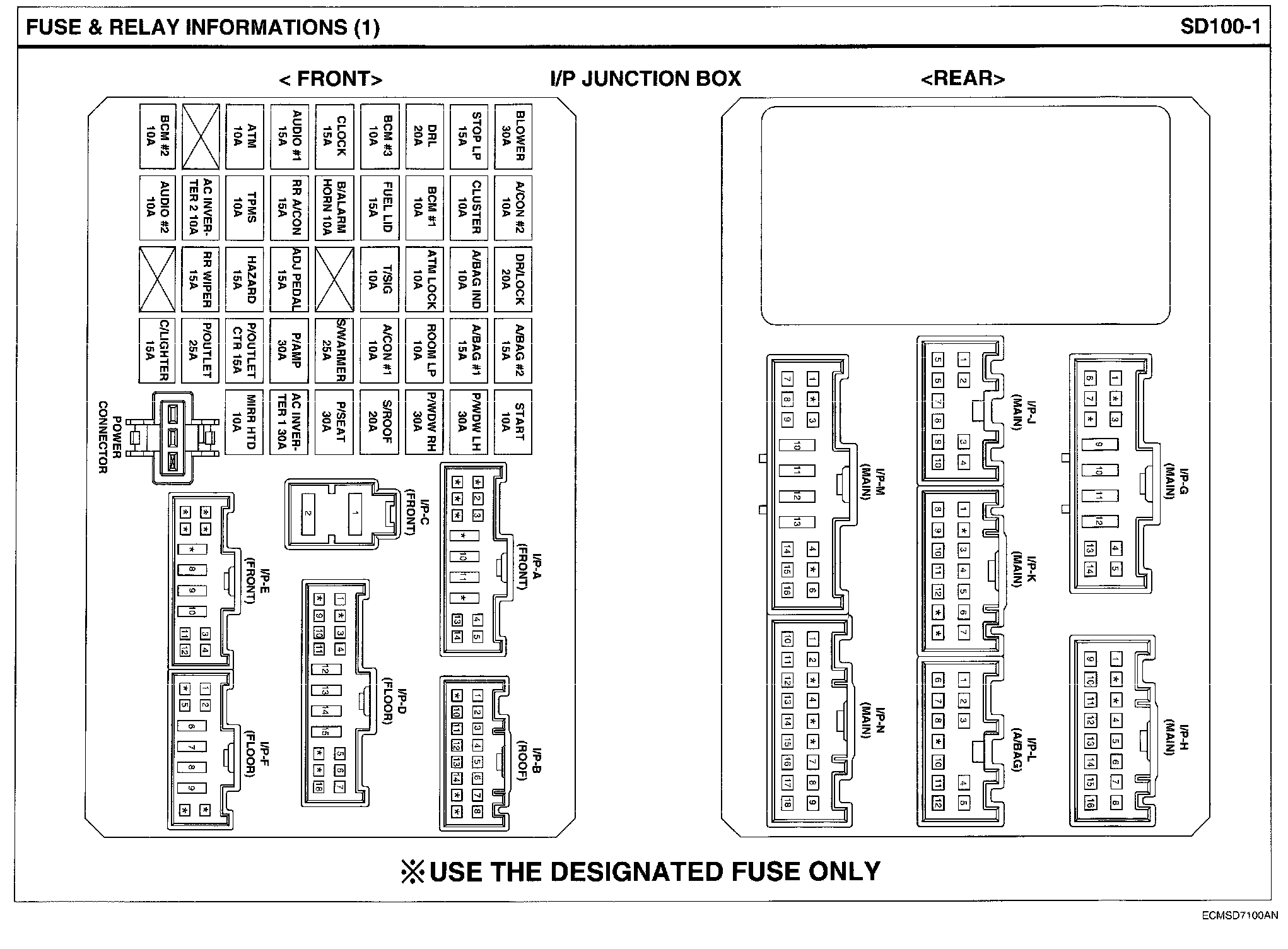

I/P Junction Box View:

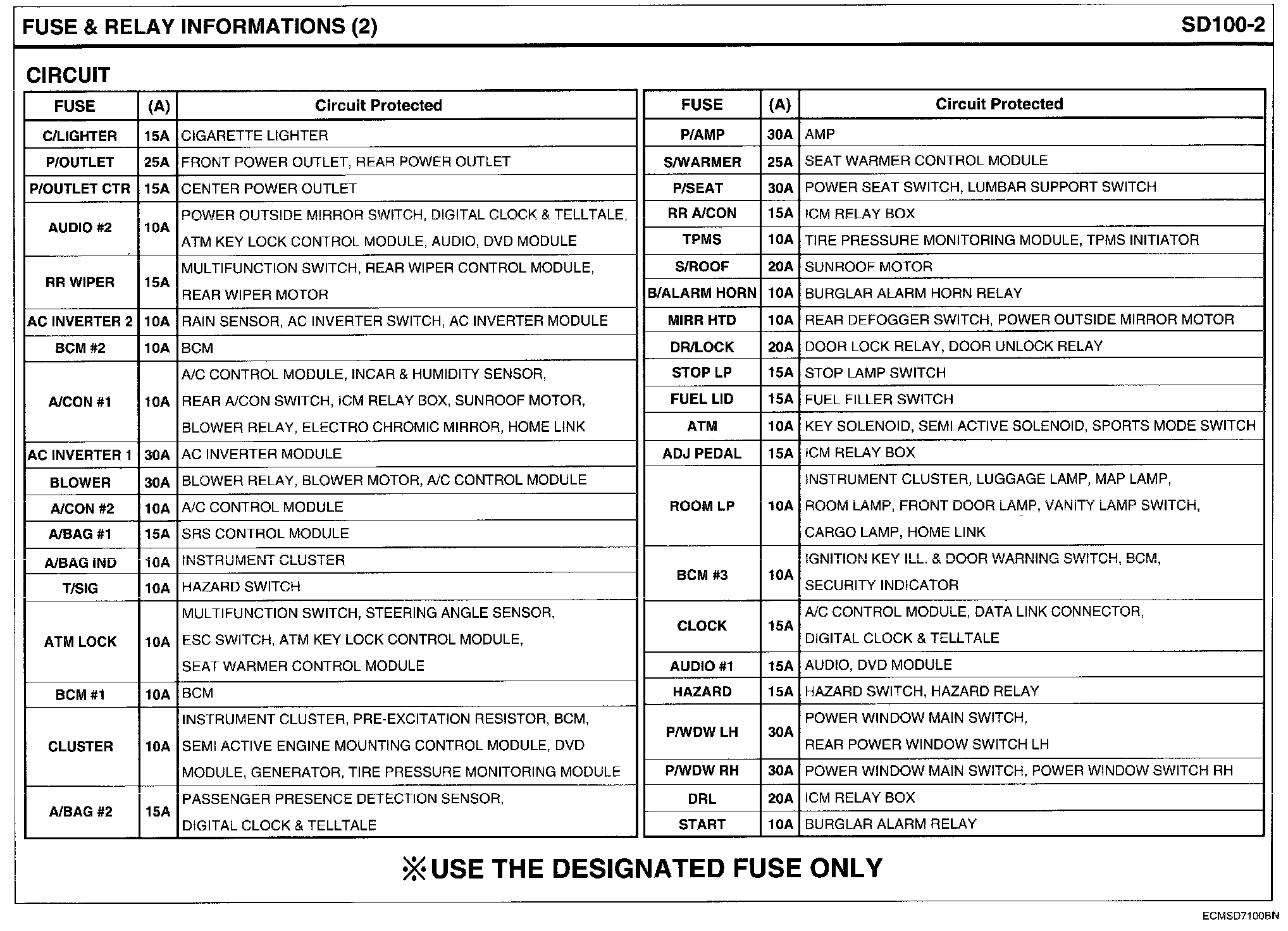

I/P Junction Box Circuit Details:

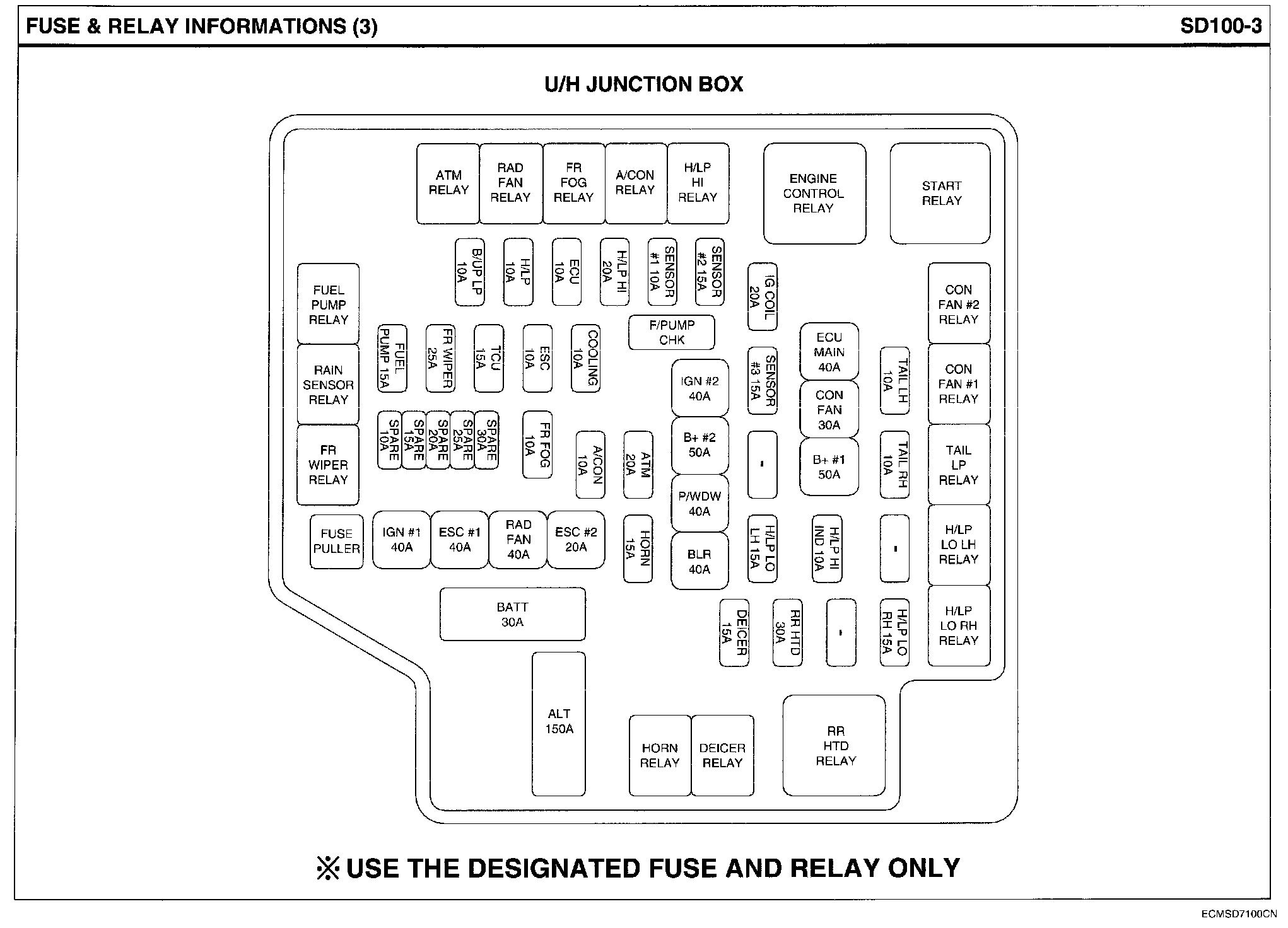

U/H Junction Box View:

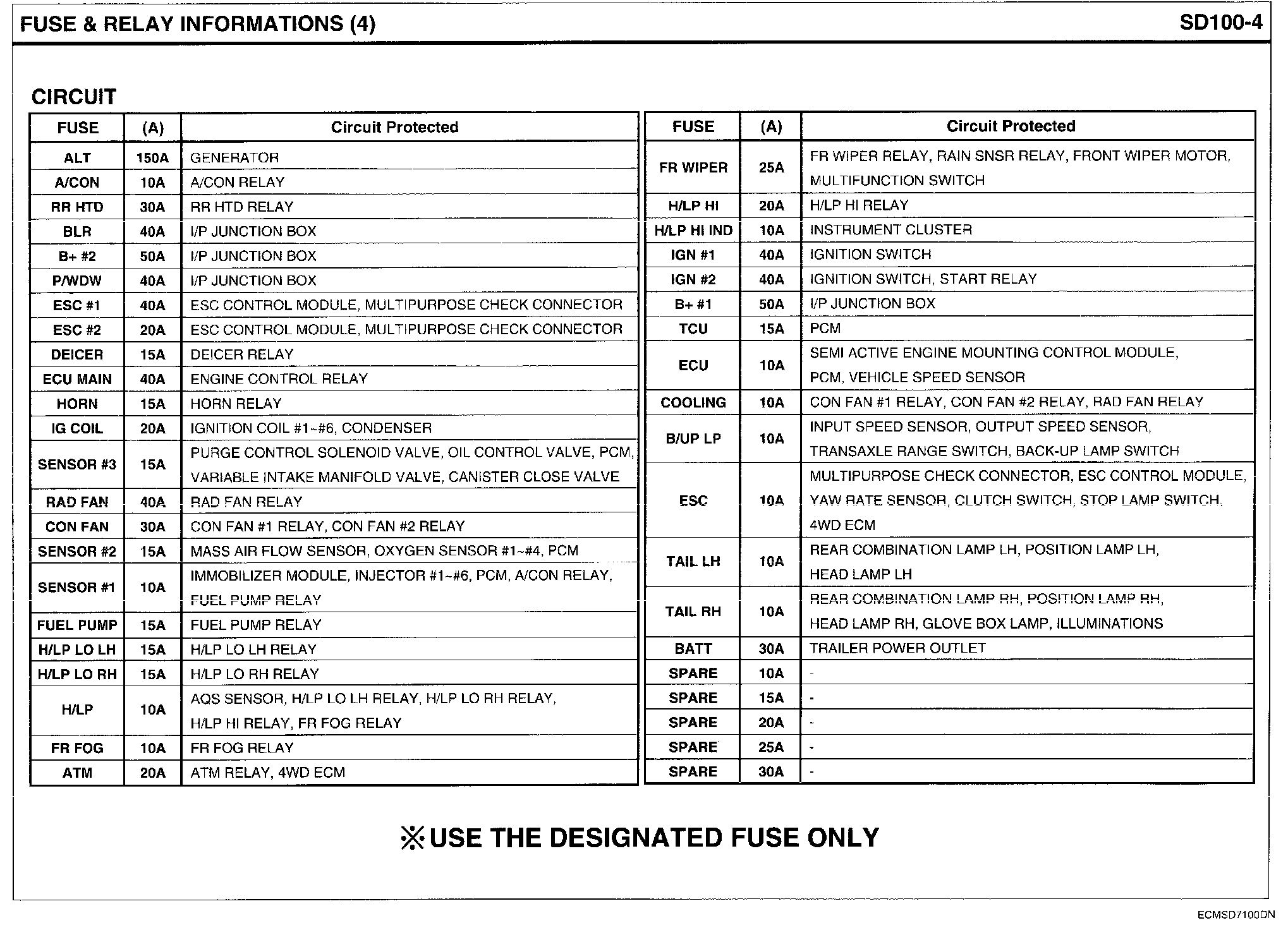

U/H Junction Box Circuit Details:
